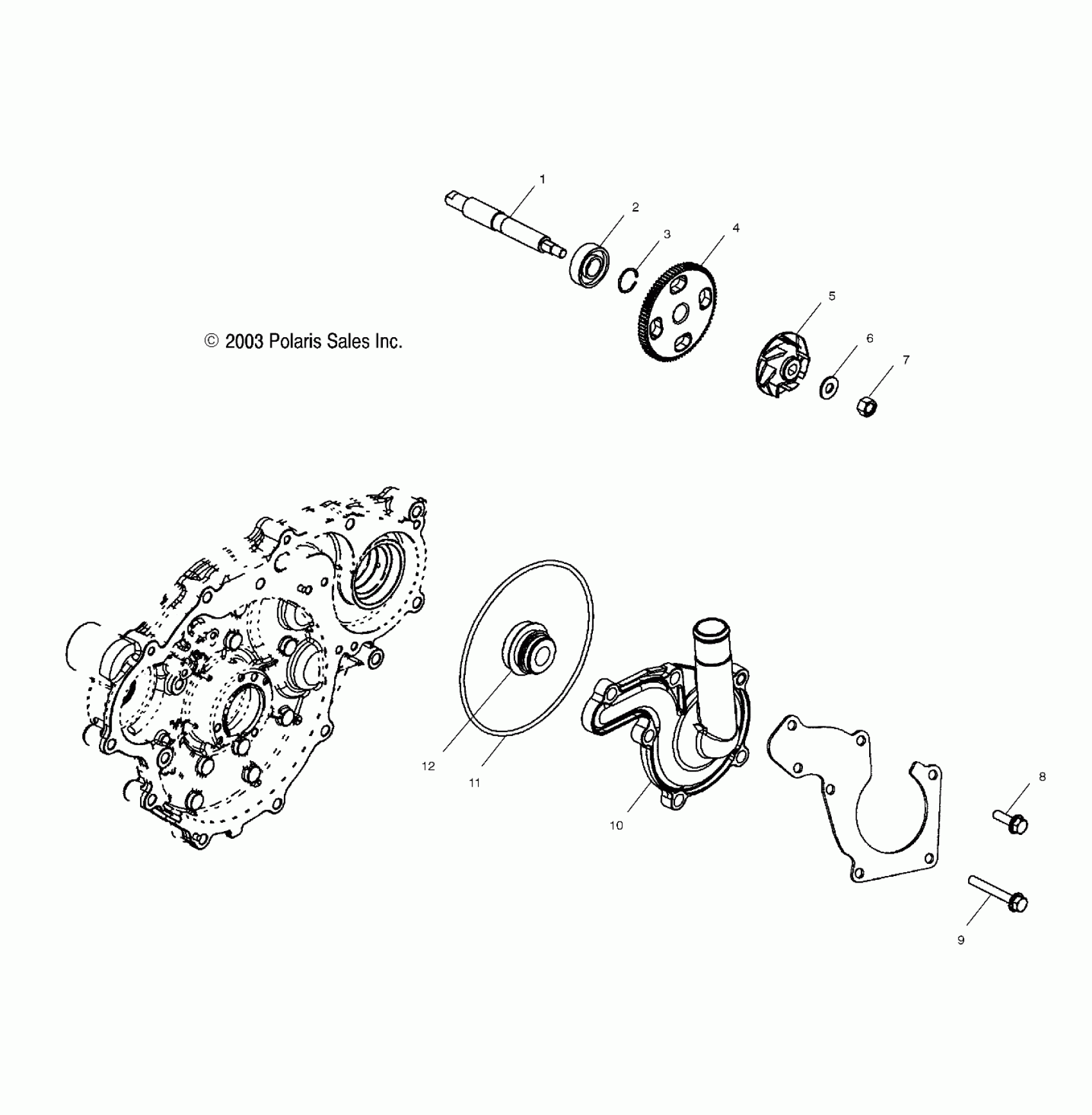

Polaris A04CH59AK SPORTSMAN 600 - A04CH59AK/AL/AN/AQ/AW WATER PUMP - A04CH59AK/AL/AN/AQ/AW (4987318731D11) Diagram

#

Description

Price

1

Shaft, Oil/Water Pump

5133948

Unavailable

2

Bearing

3584404

Unavailable

3

Ring, Retaining [If built after 10/02/03]

7710531

$4.79

4

KIT, GEAR SET 680/780 [SEE INTAKE AND EXHAUST PG. D9, REF. 6]

-------

Unavailable

5

Impeller

5433684

$31.99

6

Washer, Flat

7555874

$2.39

7

NUT, NYLOK

7546804

$1.49

8

Screw [If built before 10/02/03]

7516822

$2.39

8

Screw [If built after 10/02/03]

7516823

$3.19

9

Screw

7517950

$5.59

10

Cover [If built after 10/02/03]

5631389

Unavailable

10

Cover [If built before 10/02/03]

1202019

Unavailable

11

O-Ring [If built before 10/02/03]

5812048

$39.99

11

O-Ring [If built after 10/02/03]

5812508

Unavailable

12

SEAL, WATER PUMP

3610075

$72.84
