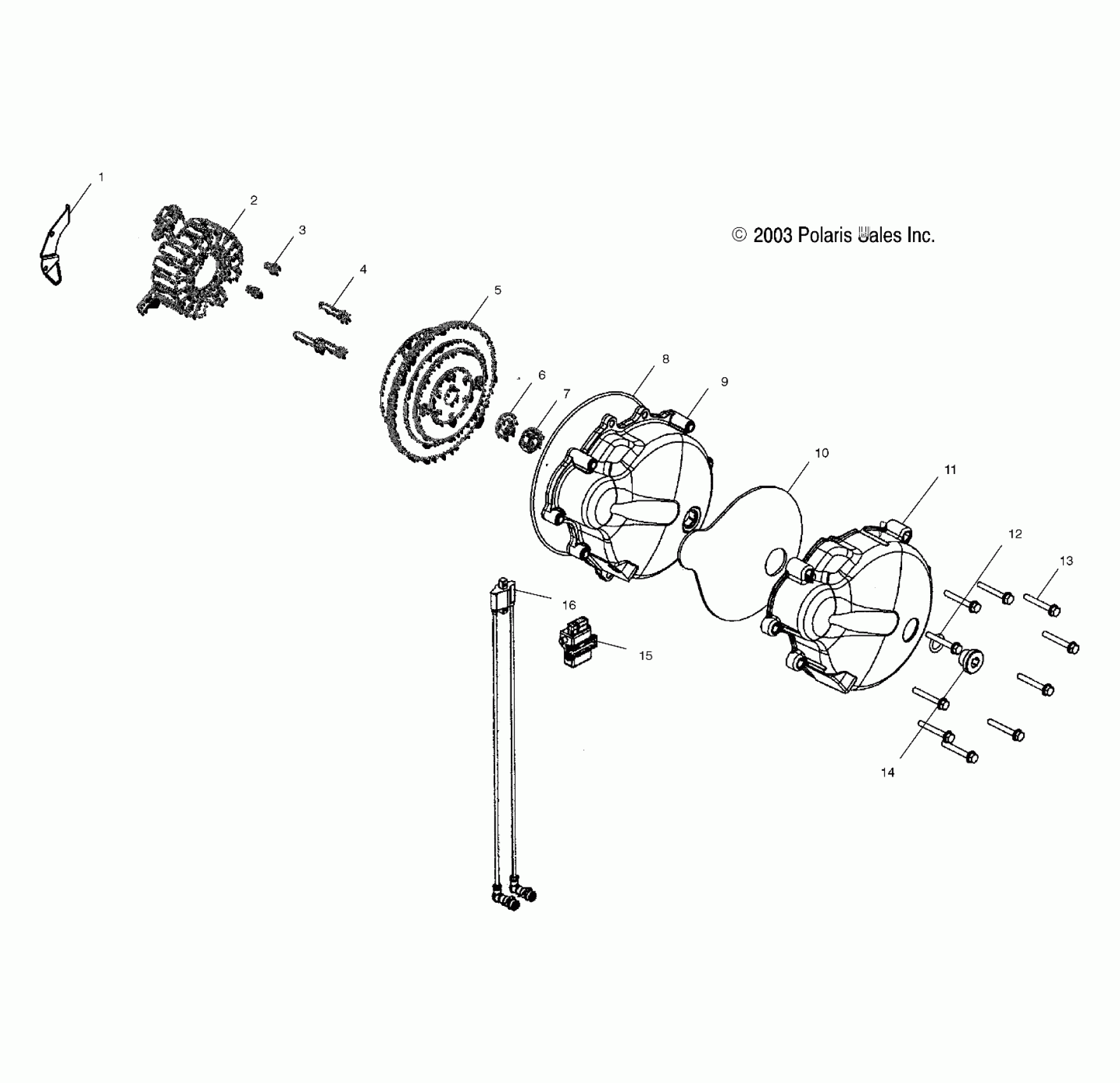

Polaris A04CH59AK SPORTSMAN 600 - A04CH59AK/AL/AN/AQ/AW MAGNETO - A04CH59AK/AL/AN/AQ/AW (4987318731D13) Diagram

Holddown, Wire

5245364

$49.99

Asm., Stator

4010901

$579.99

Kit, Ignition [Incl. Jumper]

2202603

Unavailable

SCREW

7517847

$3.17

SCR-M6X1.0X30,HX/SOC/CP-ZPC

7517714

$10.32

Asm., Flywheel

4010899

$509.99

WASHER

7555907

$5.56

Nut [If built after 10/02/03]

7547213

$4.76

Nut [If built before 10/02/03]

7546909

Unavailable

O-Ring [If built after 10/02/03]

5412458

Unavailable

O-Ring [If built before 10/02/03]

5812359

Unavailable

Housing, Stator [If built before 10/02/03]

1201684

$102.38

Cover, Stator [If built after 10/02/03]

1202641

$86.51

Cover, Sound

5812283

$36.41

Cover, Outer [If built after 10/02/03]

5435099

Unavailable

Cover, Outer [If built before 10/02/03]

5434310

$26.98

O-Ring [If built before 10/02/03]

5411564

$4.03

Screw

7517950

$5.56

Plug [If built before 10/02/03]

5433820

$24.27

Controller, Ignition [If built before 10/02/03]

4010920

$299.51

Controller, Ignition [If built after 10/02/03

4010951

$331.89

Coil, Ignition

4010898

Unavailable
