- A04CH59AK SPORTSMAN 600 - A04CH59AK/AL/AN/AQ/AW
FRONT RACK and BUMPER MOUNTING - A04CH59AK/AL/AN/AQ/AW (4987318731A07)

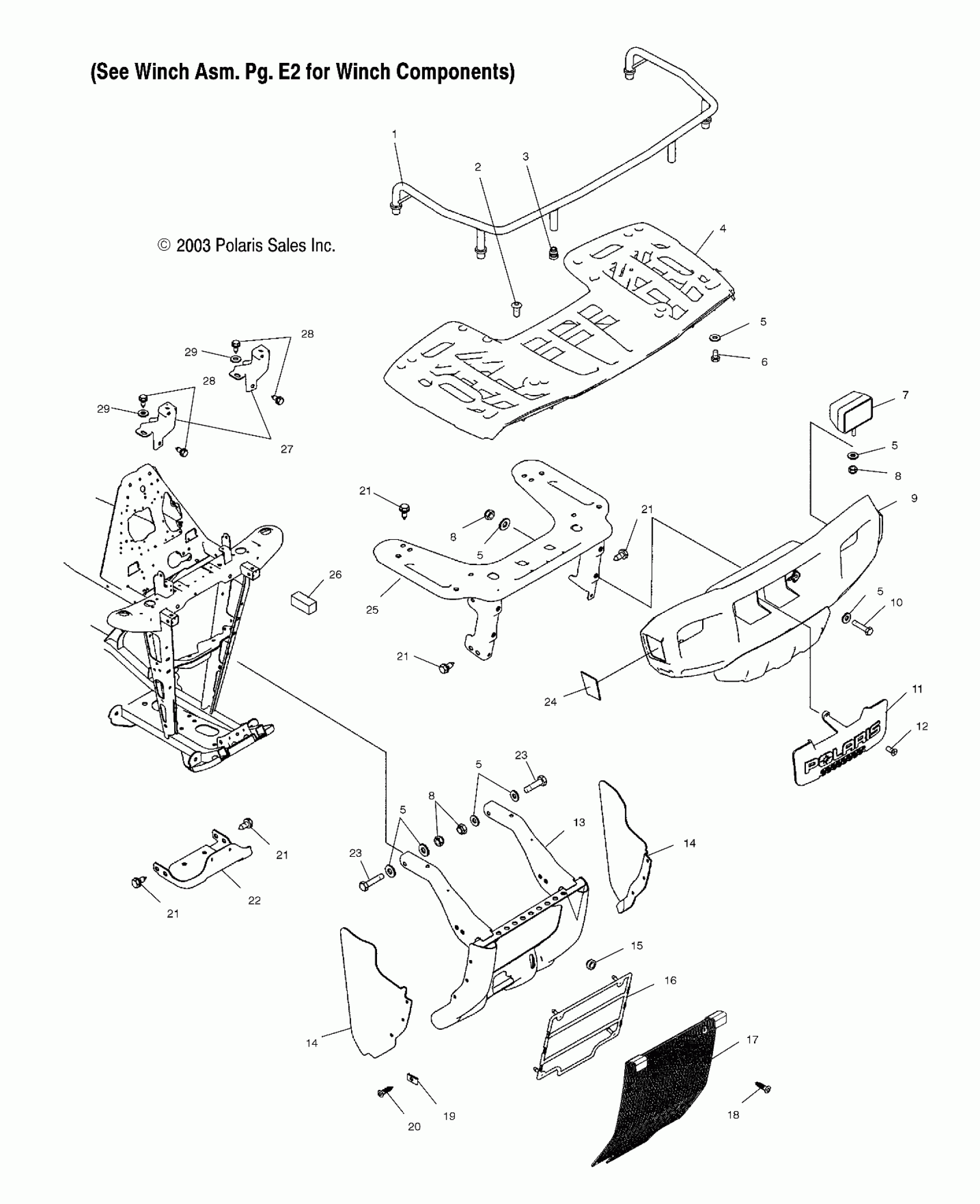

Polaris A04CH59AK SPORTSMAN 600 - A04CH59AK/AL/AN/AQ/AW FRONT RACK and BUMPER MOUNTING - A04CH59AK/AL/AN/AQ/AW (4987318731A07) Diagram
#
Description
Price
1
Extender, Front Rack (AW)(AQ)
1013972-418
Unavailable
4
Rack, Front, Black [If built before 2/03/03]
5434697-070
Unavailable
7
Headlight
2431017
Unavailable
7
Bulb, Replacement, 27W
4030059
Unavailable
9
Asm., Bumper, Front, Black (AK)(AL)(AN)(Incl. Warning Decal]
2632757-070
Unavailable
9
Bumper, Front (AW)(AQ)(See Winch Asm. Pg. E2, Ref. 21)
-------
Unavailable
10
Screw
7515306
Unavailable
11
Panel
5434699-070
Unavailable
13
Guard, Brush
1014412-067
Unavailable
14
Shield, Side, Radiator, RH
5434315
Unavailable
14
Shield, Side, Radiator, RH
5434315
Unavailable
22
Bracket, Bumper, Lower
5245767-067
Unavailable
24
Decal, Reflector, Amber, LH
7171474
Unavailable
24
Decal, Reflector, Amber, RH
7171475
Unavailable
26
PLUG, FRAME
5810467
Unavailable
27
Support, Front Rack, LH
1014261-067
Unavailable
27
Support, Front Rack, RH
1014262-067
Unavailable
