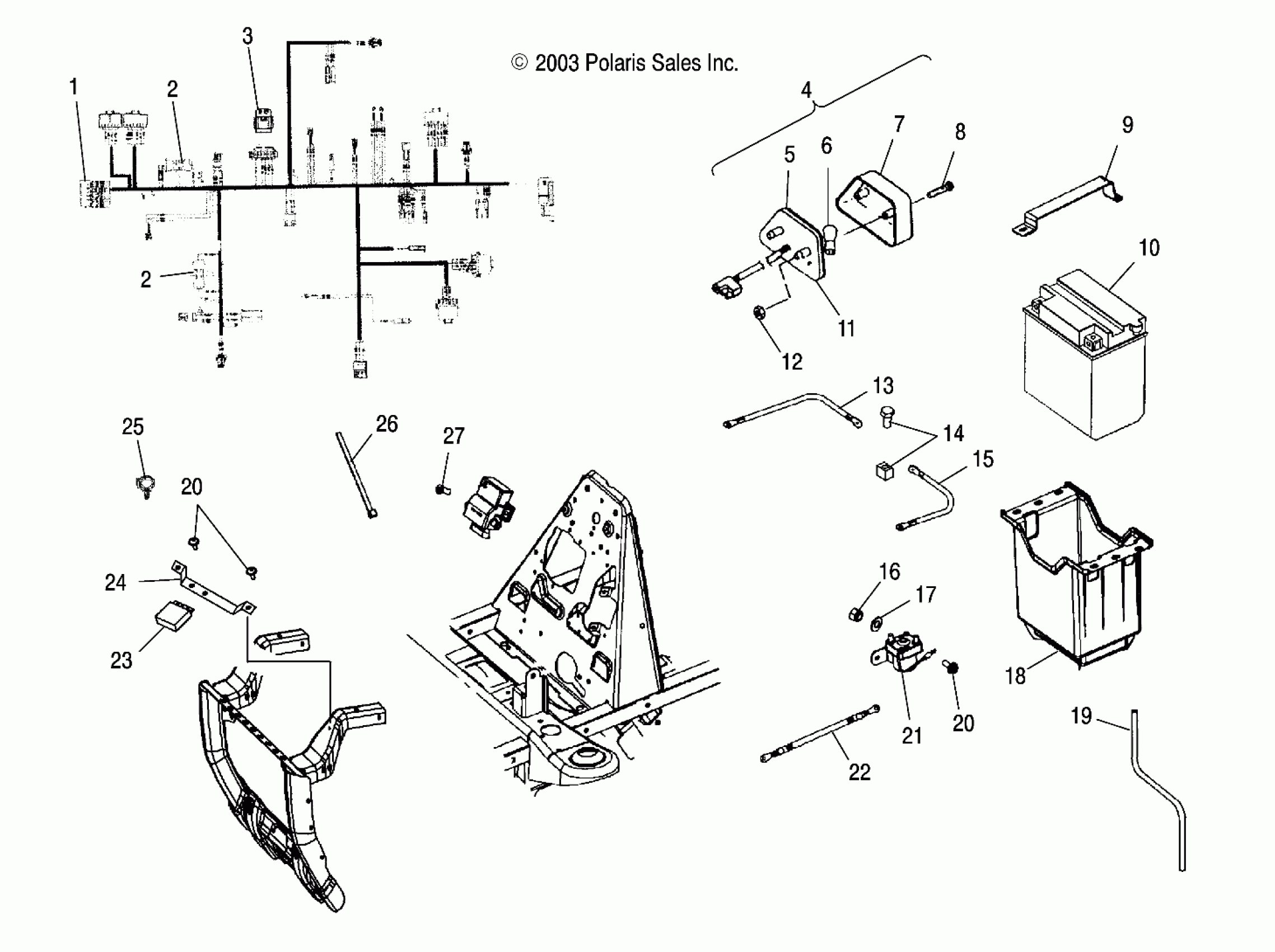

Polaris A04CH59AK SPORTSMAN 600 - A04CH59AK/AL/AN/AQ/AW ELECTRICAL/TAILLIGHT - A04CH59AK/AL/AN/AQ/AW (4987318731C07) Diagram

#

Description
Price

1

KIT, FUSIBLE LINK, .8MM

2202607

$39.99

1

Harness, Main [If built before 4/01/04]

2461208

Unavailable

1

Harness, Main [If built after 4/01/04]

2410474

Unavailable

2

Breaker, Circuit, 20 AMP

2410323

$64.75

2

Breaker, Circuit, 20 AMP

2410323

$64.75

3

Kit, Harness, Resistor Module

2204890

$127.99

4

Asm., Taillight, 12V [Incl. 7-12]

2410320

$63.99

5

Gasket, Taillight

4032045

$4.03

6

Bulb, Taillight

4030043

$6.46

7

Lens, Taillight

4032046

$32.37

8

Screw, Taillight

4032029

$4.79

9

Strap, Battery Holddown (If built after 8/18/03)

5412499

$4.62

9

Strap, Battery Holddown (If built before 8/18/03)

5247376

$12.79

10

Battery, 30 AMP

4010630

$147.60

11

Backing, Taillight/Brake Light

4032064

$83.99

12

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

13

Cable

4010470

Unavailable

14

Kit, Battery Bolt

2202099

$5.99

15

Cable, Battery/Solenoid [AF][AH][AJ]

4010471

Unavailable

16

NUT

7542105

$3.99

17

WASHER, SPRING LOCK

7552801

$1.59

18

Box, Battery

5434037

$27.99

19

Tube, Battery Vent

5432077

Unavailable

20

SCREW

7512024

$4.79

20

SCREW

7512024

$4.79

21

Switch, Magnetic [If built before 6/26/03]

3087196

Unavailable

21

Switch, Magnetic [If built after 6/26/03]

4010930

$60.70

22

CABLE, SOLENOID/STARTER

4010376

$47.99

23

Rectifier, Regulator [If built between 2/17/03 and 4/05/04)]

4010929

Unavailable

23

Rectifier, Regulator [If built before 2/17/03]

4010796

Unavailable

23

Rectifier, Regulator (If built after 4/05/04)

4011053

Unavailable

24

Sink, Heat

5133182

Unavailable

25

Clip, Rosebud [Small]

4020139

$4.79

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

Screw

7512027

$1.49
