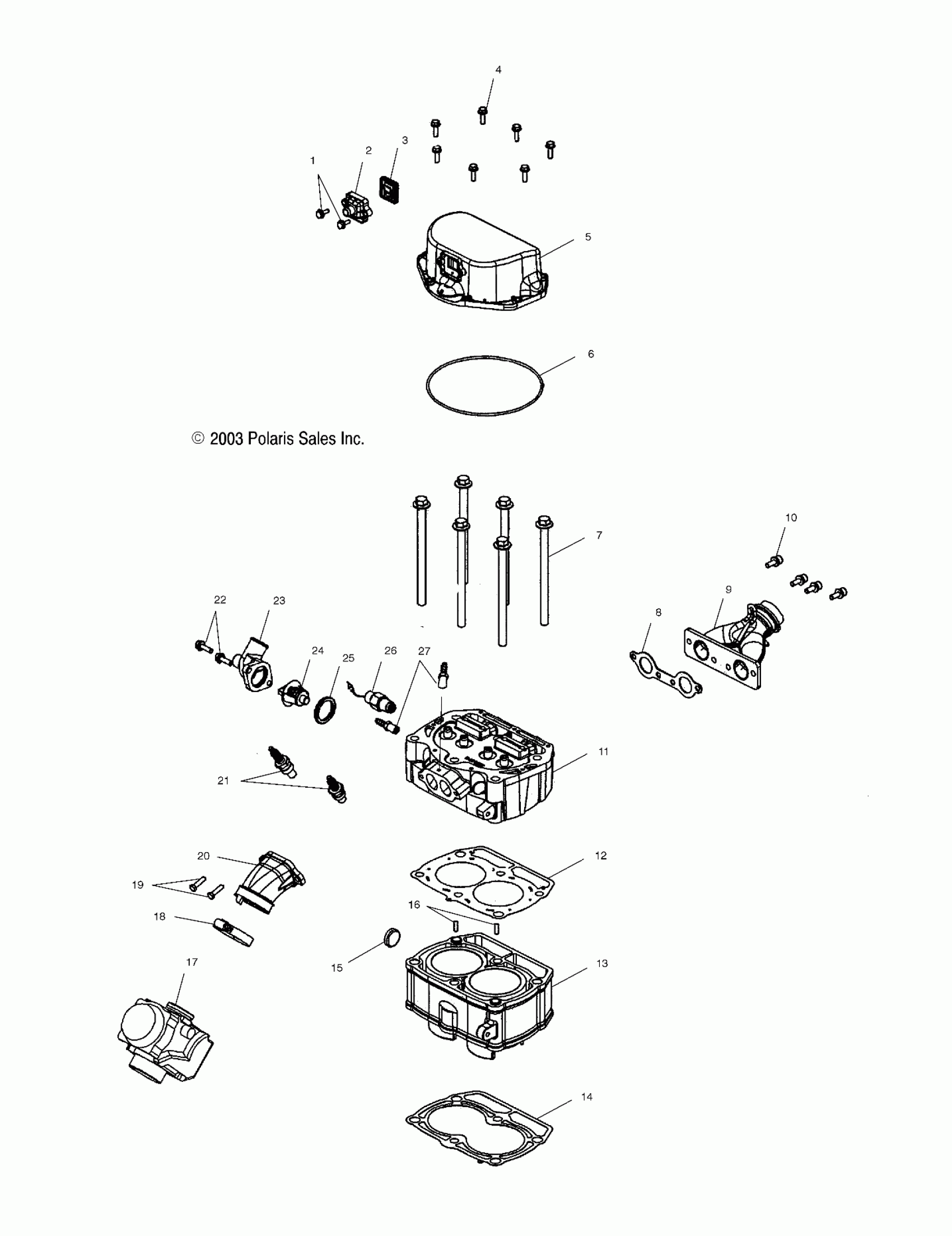

Polaris A04CH59AK SPORTSMAN 600 - A04CH59AK/AL/AN/AQ/AW CYLINDER and CYLINDER HEAD - A04CH59AK/AL/AN/AQ/AW (4987318731D05) Diagram

#

Description
Price

1

SCREW

7517277

$3.19

2

Cover, Breather

5432533

Unavailable

3

Valve, Breather

3021413

Unavailable

4

SCREW

7516822

$2.39

5

Cover, Rocker

1201973

Unavailable

6

Seal

5411862

$48.56

7

Bolt [If built after 10/02/03]

7518274

Unavailable

7

Screw [If built before 10/02/03]

7517883

Unavailable

8

GASKET, EXHAUST

5811511

$48.56

9

Manifold, Exhaust

1261077-029

Unavailable

10

Screw [If built before 10/02/03]

7516730

$6.39

10

Screw [If built after 10/02/03]

7518234

$2.99

11

Head, Cylinder [If built before 10/02/03]

1202171

Unavailable

11

Guide, Valve

5131429

Unavailable

11

Head, Cylinder [If built after 10/02/03]

3021483

Unavailable

12

Gasket, Cylinder Head [If built before 10/02/03]

5812212

$54.11

12

Gasket, Head [If built after 10/02/03]

5247358

Unavailable

13

Kit, Cylinder [Incl. 15][If built before 10/02/03]

2202368

Unavailable

13

Kit, Cylinder [Incl. 15][If built after 10/02/03]

2202695

Unavailable

14

Gasket, Base [If built after 10/02/03]

5247360

$39.99

14

Gasket, Base [If built before 10/02/03]

5811455

$39.99

15

PLUG

7051534

$5.59

16

Dowel [If built after 10/02/03]

7661175

$5.59

17

ASM., CARBURETOR [SEE CARBURETOR PG. D8, REF. 48]

-------

Unavailable

18

Clamp, Hose

7080681

$9.59

19

SCREW

7516734

$3.19

20

Adapter, Carburetor

1253415

$91.99

21

Spark Plug, RC7YC

3070195

Unavailable

22

SCREW

7516822

$2.39

23

Cover, Thermostat [If built after 10/02/03]

5631390

Unavailable

23

Cover, Thermostat [If built before 10/02/03]

5631196

Unavailable

24

Thermostat [If built after 10/02/03]

7052352

$59.99

24

Thermostat [If built before 10/02/03]

7052308

Unavailable

25

O-Ring

5411521

$24.19

26

Switch, Temperature

4010356

$59.99

27

Fitting [If built after 10/02/03]

7052145

$9.59

27

Fitting [If built before 10/02/03]

7052135

$9.52
