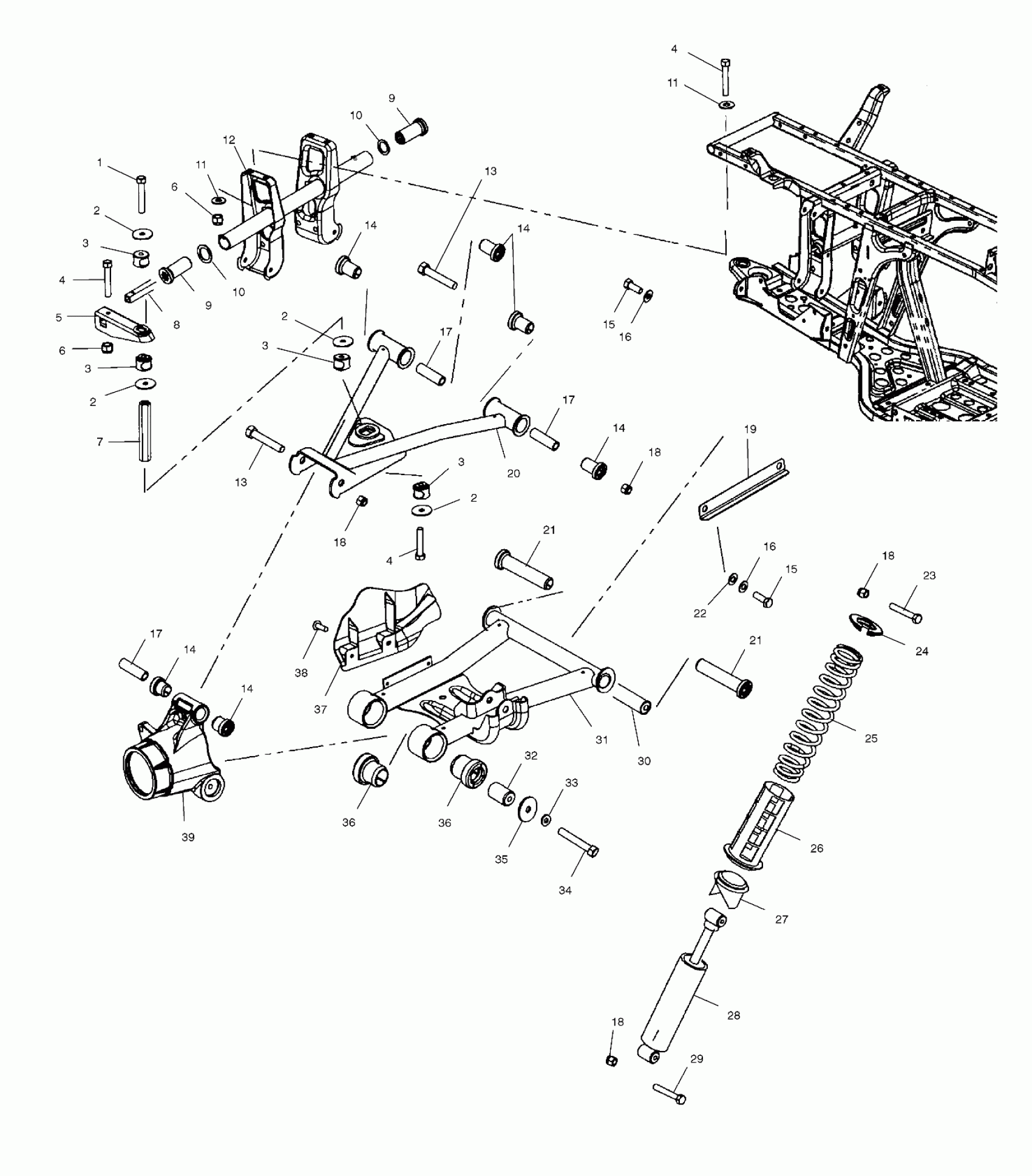

Polaris A04CH59AF SPORTSMAN 600 - A04CH59AF/AH/AJ/AT/AV REAR SUSPENSION - A04CH59AF/AH/AJ/AT/AV (4986108610C05) Diagram

#

Description
Price

1

SCREW

7517231

$7.19

2

Washer, Flat

7555761

$2.39

2

Washer, Flat

7555761

$2.39

2

Washer, Flat

7555761

$2.39

2

Washer, Flat

7555761

$2.39

3

BUSHING, STABILIZER

5432598

$6.39

3

BUSHING, STABILIZER

5432598

$6.39

3

BUSHING, STABILIZER

5432598

$6.39

3

BUSHING, STABILIZER

5432598

$6.39

4

Bolt

7512329

$3.99

4

Bolt

7512329

$3.99

4

Bolt

7512329

$3.99

5

Arm, Stabilizer Bar

1580107-067

$62.92

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

ROD, LINKAGE, STABILIZER

5020827

$47.99

8

Bar, Stabilizer Tube

5334114-067

$111.33

9

Bushing, Stabilizer Tube

5434549

$8.48

9

Bushing, Stabilizer Tube

5434549

$8.48

10

Washer

7555939

Unavailable

10

Washer

7555939

Unavailable

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Support, Stabilizer

1541801-067

$117.37

13

SCREW

7515472

$2.39

13

SCREW

7515472

$2.39

14

Bushing, A-Arm, Short

5434548

$2.38

14

Bushing, A-Arm, Short

5434548

$2.38

14

Bushing, A-Arm, Short

5434548

$2.38

14

Bushing, A-Arm, Short

5434548

$2.38

14

Bushing, A-Arm, Short

5434548

$2.38

15

Screw

7512492

$1.49

15

Screw

7512492

$1.49

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

17

SHAFT, A-ARM, SHORT

5020826

$11.99

17

SHAFT, A-ARM, SHORT

5020826

$11.99

17

SHAFT, A-ARM, SHORT

5020826

$11.99

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

19

Strap, Rear Skid Plate

5245140-067

Unavailable

20

Arm, Control, Upper, LH (AF)(AH)(AJ)

1014320-293

Unavailable

20

Arm, Control, Upper, RH (AF)(AH)(AJ)

1014321-293

$121.02

20

Arm, Control, Upper, LH (AT)(AV)

1014320-067

$95.99

20

Arm, Control, Upper, RH (AT)(AV)

1014321-067

$95.99

21

Bushing, A-Arm, Long

5434551

$5.01

21

Bushing, A-Arm, Long

5434551

$5.01

22

Washer, Flat

7555806

$1.49

23

Screw

7515433

$1.59

24

Retainer, Spring

5630885

$10.03

25

Spring, Compression (AT)(AV)

7041453-067

$94.99

25

Spring, Compression (If built before 6/16/03)(AF)(AH)(AJ)

7041453-293

$94.99

25

Spring, Compression (If built after 6/16/03)(AF)(AH)(AJ)

7042311-293

$94.99

26

Sleeve, Shock Protector

5433551

$39.99

27

CAM, ADJUSTING, SPRING

5631014

$31.99

28

Shock, Rear

7041959

$123.99

29

Screw

7515415

$1.49

30

Shaft, A-Arm

5133806

$30.79

31

Arm, Control, Lower, LH (AT)(AV)

1014174-067

Unavailable

31

Arm, Control, Lower, RH (AT)(AV)

1014175-067

Unavailable

31

Arm, Control, Lower, LH (AF)(AH)(AJ)

1014174-293

Unavailable

31

Arm, Control, Lower, RH (AF)(AH)(AJ)

1014175-293

Unavailable

32

Bushing, Bearing Carrier

5631142

$23.16

33

WASHER-LOCK, 7/16-B

7552614

$1.59

34

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

35

WASHER, FLAT

7555740

$1.59

36

Bushing, Control, Lower

5434550

$4.62

36

Bushing, Control, Lower

5434550

$4.62

37

Shield, LH

5434890-1038

Unavailable

37

Shield, RH

5434891-1038

Unavailable

38

Screw

7512084

$1.49

39

Carrier, Wheel Bearing, RH

5133664

$111.96

39

Carrier, Wheel Bearing, LH

5133663

$111.96
