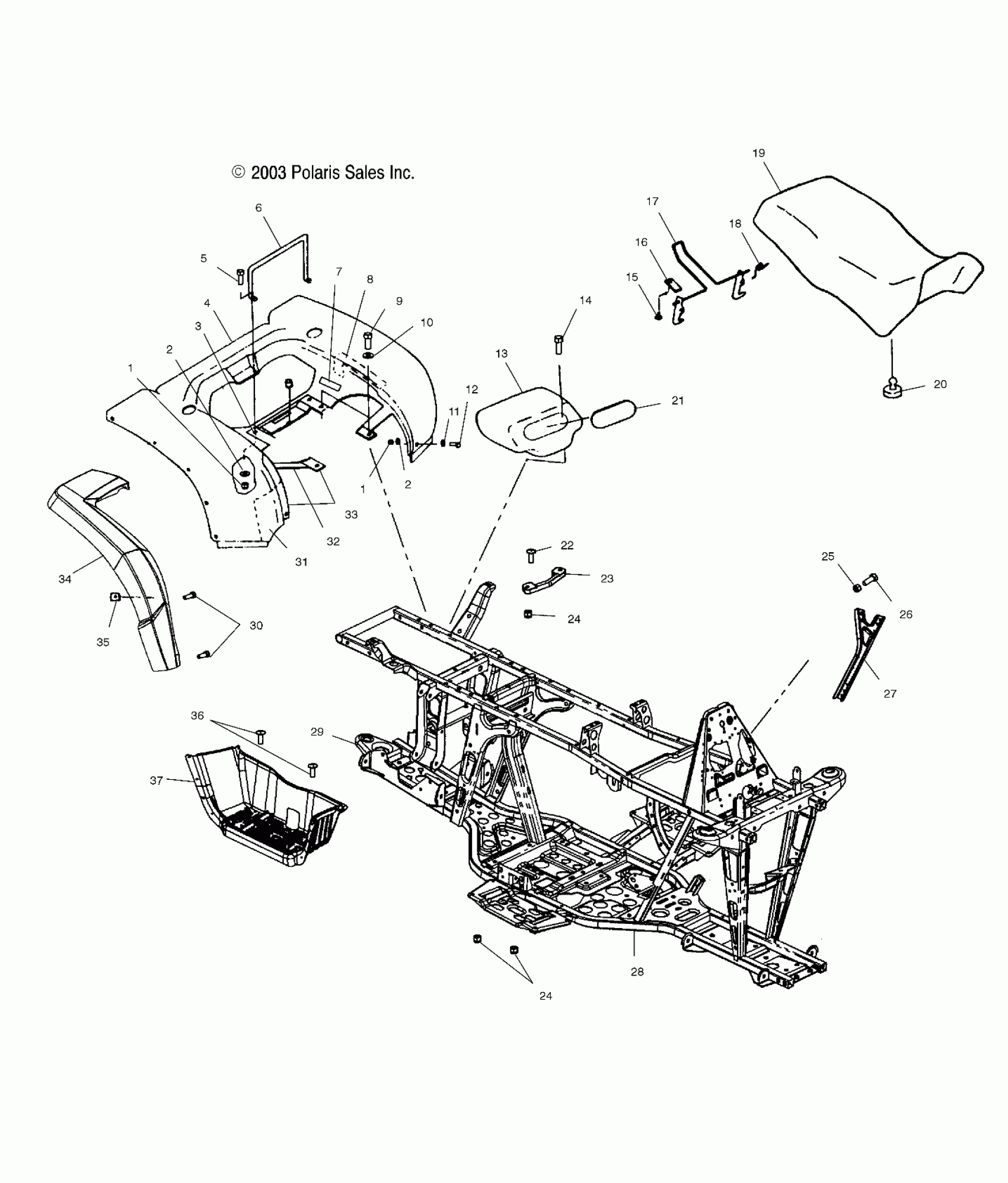

Polaris A04CH59AF SPORTSMAN 600 - A04CH59AF/AH/AJ/AT/AV REAR CAB, SEAT AND MAIN FRAME - A04CH59AF/AH/AJ/AT/AV (4986108610A03) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$1.49

1

Nut, Nylok

7541925

$1.49

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Foil, Rear Cab, Rear

5811107

$6.46

4

Cab, Rear [AH]

5432117-400

Unavailable

4

Cab, Rear (AT)

5435164-455

$529.99

4

Cab, Rear (AV)

5435164-456

Unavailable

4

Cab, Rear [AF]

5432117-341

Unavailable

4

Cab, Rear [AJ]

5432117-053

Unavailable

5

Bolt

7511930

$2.39

6

Retainer, Seat Latch

5246076

Unavailable

7

Decal, 4 Stroke, Carb/Filter Information

7079902

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.79

9

SCREW

7512242

$2.39

10

Washer, Flat

7555859

$1.49

11

WASHER

7556034

$2.39

12

Screw

7512085

Unavailable

13

Box, Tool

5431786

$53.59

14

Screw

7517375

Unavailable

15

RIVET

7621403

$1.49

16

BRACKET, LEVER RETAINER

5211033

$29.25

17

LATCH, SEAT

1040387

$47.99

18

SPRING, LATCH

7041370

$9.59

19

Covering, Seat, Black

2682958-070

$141.65

19

Asm., Seat, Black

2683197-070

$424.98

19

Asm., Seat, Black w/Gold Polaris (AT)(AV)

2683419-070

$424.98

20

BUMPER-RUBBER

5412067

$3.99

21

Cover, Tool Box

5431787

Unavailable

22

SCREW

7517377

$4.79

23

Spacer [LH Only]

5432280

$8.79

24

Nut, Nylok

7542122

$1.49

24

Nut, Nylok

7542122

$1.49

25

NUT, NYLOK, FLANGED

7542153

$1.59

26

Screw

7512283

$3.99

27

Brace, Frame

5244751-067

Unavailable

28

Frame, Main

1014260-067

$959.03

29

DECAL, HITCH, 1500 LBS.

7170509

$6.39

30

SCREW

7512232

$1.49

31

Foil, Rear Fender

5811111

$32.37

32

Foil

5811087

Unavailable

33

Foil, Rear Cab, Front

5811106

$8.89

34

Guard, Mud, Rear, LH

5434704-070

Unavailable

34

Guard, Mud, Rear, RH

5434705-070

Unavailable

35

NUT, U-TYPE SPEED

7670057

$1.49

36

Screw [LH Side]

7517377

$4.79

36

Screw [RH Side]

7517376

Unavailable

37

Footwell, Black, LH

5432221-070

$230.70

37

Footwell, Black, RH

5433929-070

$230.70
