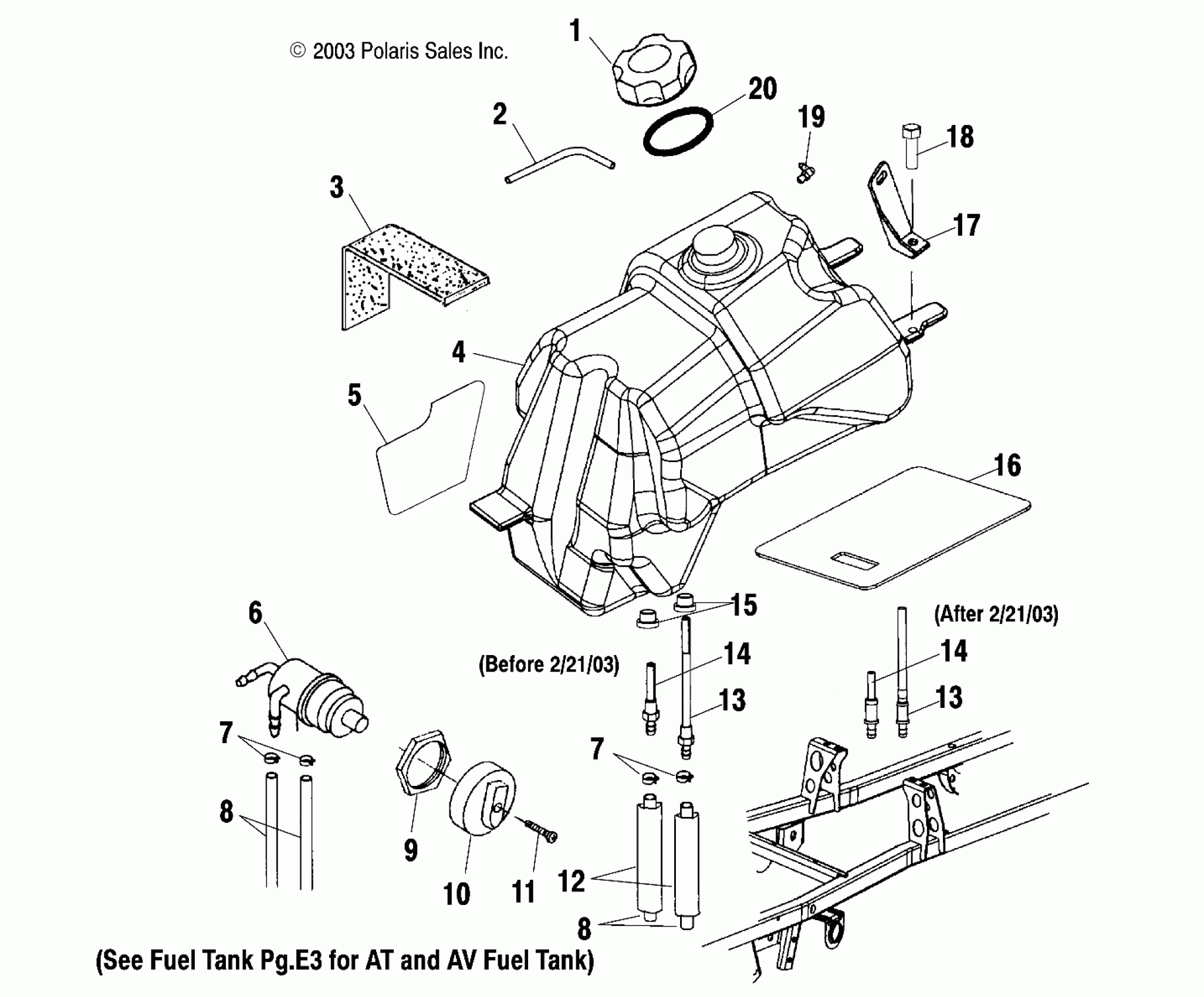

Polaris A04CH59AF SPORTSMAN 600 - A04CH59AF/AH/AJ/AT/AV FUEL TANK - A04CH59AF/AH/AJ (4986108610A12) Diagram

#

Description
Price

1

Cap, Gas Tank [Incl. 20]

5433687

$20.22

2

LINE, FUEL

8360009-600

Unavailable

3

SEAL, FOAM

5812265

$27.99

4

Asm., Fuel Tank [Incl. 13,14,19](If built before 2/21/03)

2520203

Unavailable

4

Asm., Fuel Tank [Incl. 13,14,19](If built after 2/21/03)

2520363

Unavailable

5

Foil, Fuel Tank

5182004

Unavailable

6

Valve, 3-Way

7052161

$39.99

7

HOSE CLAMP, RED

7080003

$1.49

7

HOSE CLAMP, RED

7080003

$1.49

8

Hose, Fuel

8450103-600

Unavailable

8

Hose, Fuel

8450103-600

Unavailable

9

Nut, Fuel Valve

5432733

Unavailable

10

Knob, Fuel Valve

5432559

$10.39

11

Screw

7517505

$1.59

12

Sheath, Foil

8450080-65

$64.75

13

Fitting, Fuel Outlet, Main (If built after 2/21/03)

7052347

Unavailable

13

Fitting, Fuel Outlet, Main (If built before 2/21/03)

7052150

$27.99

13

Fitting, Fuel Outlet, Main (If built after 2/21/03)

7052347

Unavailable

13

Fitting, Fuel Outlet, Main (If built before 2/21/03)

7052150

$27.99

14

Fitting, Fuel Outlet, Reserve (If built before 2/21/03)

7052149

$23.99

14

Fitting, Fuel Outlet, Reserve (If built after 2/21/03)

7052346

$27.99

14

Fitting, Fuel Outlet, Reserve (If built before 2/21/03)

7052149

$23.99

14

Fitting, Fuel Outlet, Reserve (If built after 2/21/03)

7052346

$27.99

15

Grommet

7052362

$9.99

16

Foil, Fuel Tank

5812005

$19.30

17

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

17

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

18

SCREW

7517685

$1.59

19

Vent, Tank

5431053

$19.99

20

GASKET

5812123

$5.65
