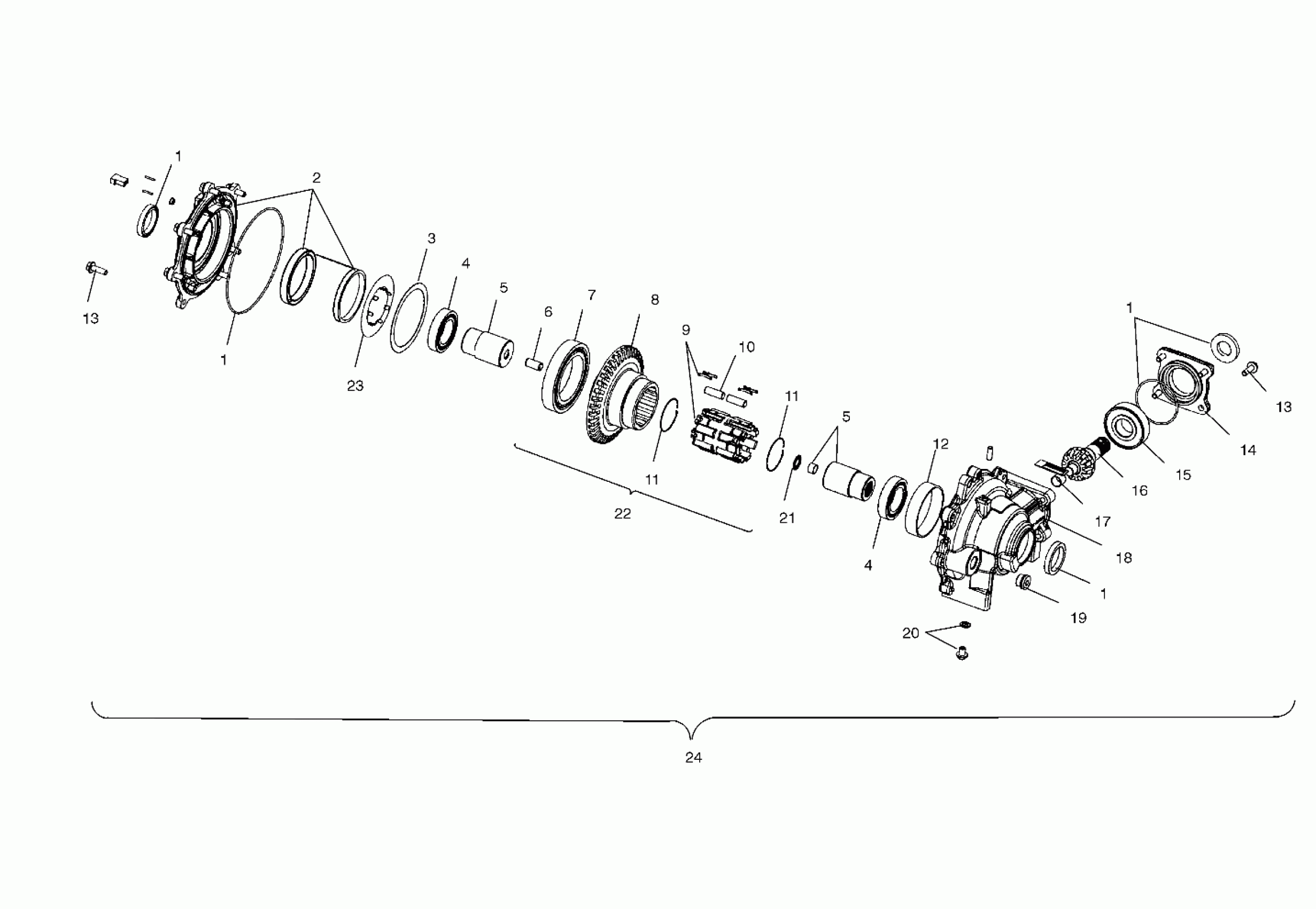

Polaris A04CH59AF SPORTSMAN 600 - A04CH59AF/AH/AJ/AT/AV FRONT HOUSING - A04CH59AF/AH/AJ/AT/AV (4986108610C11) Diagram

#

Description
Price

1

Kit, Minor Repair [Incl. O-Rings and Seals]

3233956

$75.99

1

Kit, Minor Repair [Incl. O-Rings and Seals]

3233956

$75.99

1

Kit, Minor Repair [Incl. O-Rings and Seals]

3233956

$75.99

1

Kit, Minor Repair [Incl. O-Rings and Seals]

3233956

$75.99

2

Asm., Cover Plate [Incl. Output Cover, Insert, Seal and Coil]

3234093

$1,909.99

3

Kit, Shim Set [Incl. Shims]

3233925

Unavailable

4

Bearing, Roller Ball

3233926

$59.99

4

Bearing, Roller Ball

3233926

$59.99

5

Asm., Race/Output Hub [Incl. 21]

3233953

$375.99

5

Asm., Race/Output Hub [Incl. 21]

3233953

$375.99

6

Pin, Dowel

3233928

$23.99

7

Bearing, Roller Ball

3233932

Unavailable

8

Clutch Housing/Ring Gear

3233933

$646.83

9

Asm., Roll Cage [Incl. Spring and Roll Cage]

3233949

Unavailable

9

Spring

-------

Unavailable

10

Kit, Roll

3233957

$135.99

11

Ring, Retaining, Wire Form

3233934

Unavailable

11

Ring, Retaining, Wire Form

3233934

Unavailable

12

BUSHING

-------

Unavailable

13

Kit, Bolt

3233955

$31.99

13

Kit, Bolt

3233955

$31.99

14

Cover, Input

3233947

Unavailable

15

Bearing, Roller Ball

3233945

Unavailable

16

Shaft, Pinion, 11T

3233944

Unavailable

17

BUSHING

-------

Unavailable

18

GEARCASE, LH

-------

Unavailable

19

Plug, Oil Fill

3233942

$31.99

20

Asm., Drain Plug [Incl. Plug and Washer]

3233951

Unavailable

21

Bearing, Needle, Roller Thrust

3233929

Unavailable

22

Asm., Clutch [Incl. 7-11]

3233954

$532.99

23

Plate Armature

3233924

Unavailable

24

Asm., Front Gearcase [Incl. 2-12,16-19,20-23]

1341344

$1,909.99
