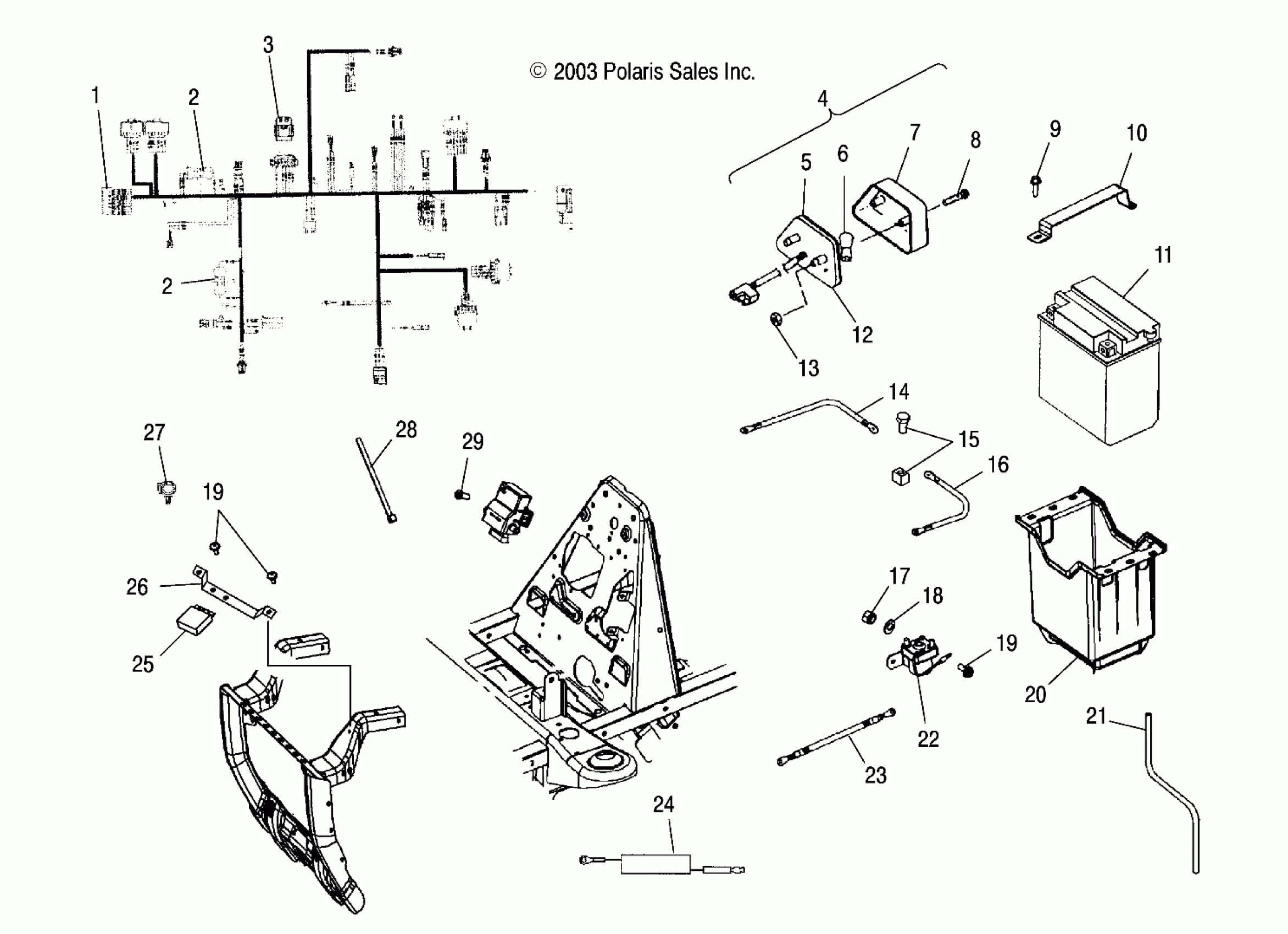

Polaris A04CH59AF SPORTSMAN 600 - A04CH59AF/AH/AJ/AT/AV ELECTRICAL/TAILLIGHT - A04CH59AF/AH/AJ/AT/AV (4986108610C07) Diagram

#

Description
Price

1

Kit, Fusible Link

2202147

$79.99

1

Harness, Main [If built before 2/17/03]

2460976

Unavailable

1

Harness, Main [If built after 2/17/03]

2461177

Unavailable

2

Breaker, Circuit, 20 AMP

2410323

$64.75

2

Breaker, Circuit, 20 AMP

2410323

$64.75

3

Kit, Harness, Resistor Module

2204890

$127.99

4

Asm., Taillight, 12V [Incl. 7-13]

2410320

$63.99

5

Gasket, Taillight

4032045

$4.03

6

Bulb, Taillight

4030043

$6.46

7

Lens, Taillight

4032046

$32.37

8

Screw, Taillight

4032029

$4.79

9

SCREW

7517386

$1.49

10

STRAP, BATTERY HOLDDOWN

5247376

$12.79

11

Battery, 30 AMP

4010630

$147.60

12

Backing, Taillight/Brake Light

4032064

$83.99

13

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

14

Cable

4010470

Unavailable

15

Kit, Battery Bolt

2202099

$5.99

16

Cable, Battery/Solenoid (AF)(AH)(AJ)

4010471

Unavailable

17

NUT

7542105

$3.99

18

WASHER, SPRING LOCK

7552801

$1.59

19

SCREW

7512024

$4.79

19

SCREW

7512024

$4.79

20

Box, Battery

5434037

$27.99

21

Tube, Battery Vent

5432077

Unavailable

22

Switch, Magnetic

3087196

Unavailable

23

CABLE, SOLENOID/STARTER

4010376

$47.99

24

Jumper, Harness (If built 2/03/03 to 3/05/03)

2410411

$44.17

25

Rectifier, Regulator [If built between 2/17/03 and 4/05/04]

4010929

Unavailable

25

Rectifier, Regulator [If built before 2/17/03]

4010796

Unavailable

25

Rectifier, Regulator (If built after 4/05/04)

4011053

Unavailable

26

Sink, Heat

5133182

Unavailable

27

Clip, Rosebud [Small]

4020139

$4.79

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

Screw

7512027

$1.49
