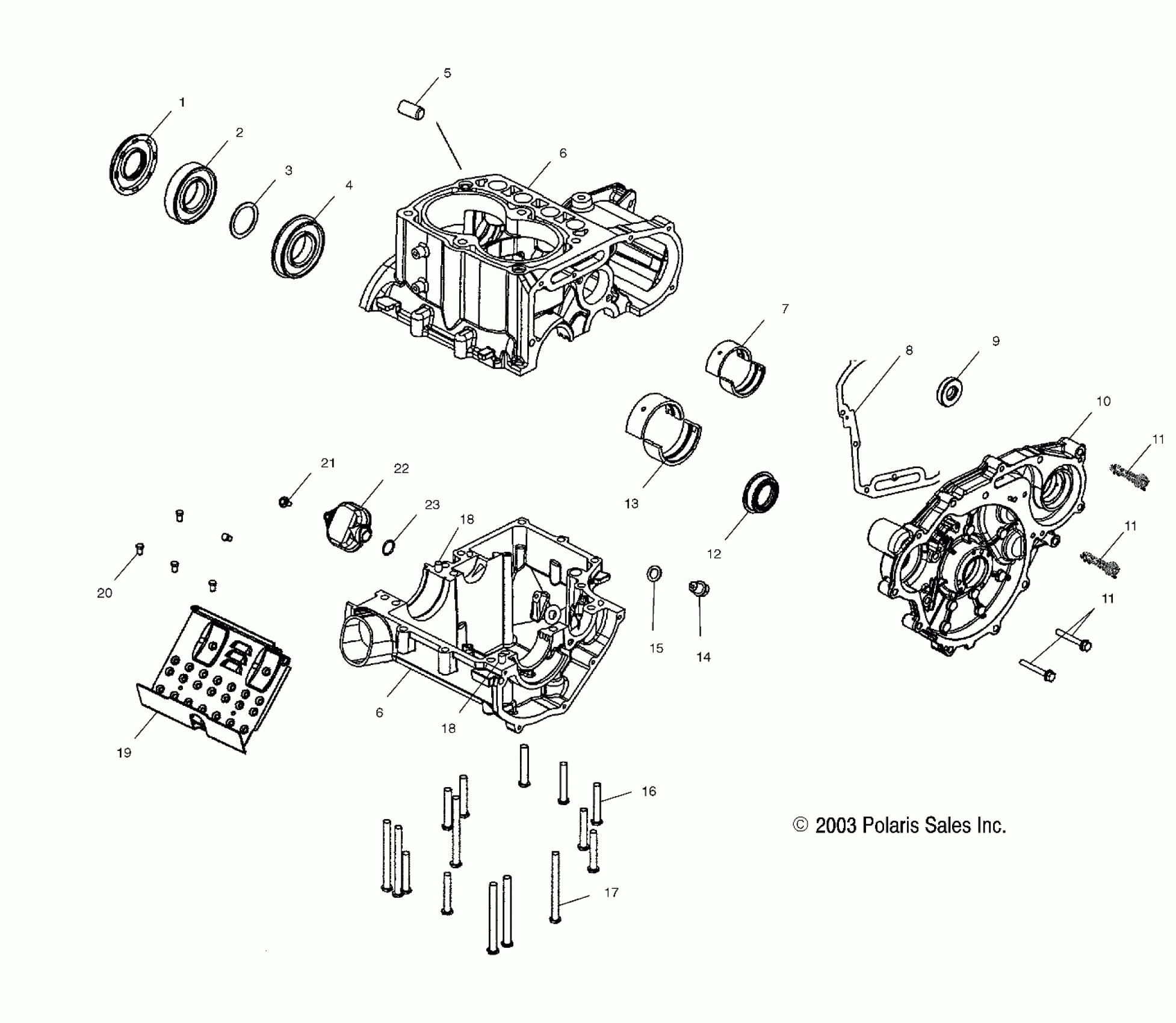

Polaris A04CH59AF SPORTSMAN 600 - A04CH59AF/AH/AJ/AT/AV CRANKCASE - A04CH59AF/AH/AJ/AT/AV (4987318731D03) Diagram

#

Description
Price

1

Seal, Flanged

5412114

$39.99

2

BEARING, BALL

3514361

Unavailable

3

BUSHING

7556194

$3.99

4

BEARING, BALL

3514318

$43.99

5

Plug

7518007

$5.65

6

Asm., Crankcase [Incl. 14-23]

1202658

$1,058.49

6

Asm., Crankcase [Incl. 14-23]

1202658

$1,058.49

7

BEARING

5132753

Unavailable

8

Gasket

5812364

$24.27

9

Seal, Oil

5411184

Unavailable

10

Cover, Magneto

1202384

$246.89

11

Screw

7517950

$5.59

11

Screw

7517950

$5.59

11

Screw

7517950

$5.59

12

Seal

5412048

Unavailable

13

BEARING, MAIN JOURNAL

3585704

$28.56

14

Plug, Magnetic

7052306

$15.37

15

WASHER, COPPER

5812232

$1.59

16

SCREW

7517793

$5.59

17

SCREW

7517792

$2.39

18

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

18

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

19

Baffle

5211785

$39.99

20

SCREW

7518045

$10.39

21

Screw

7516603

$10.39

22

Pickup, Oil

1201970

Unavailable

23

O-Ring

5812016

$3.19
