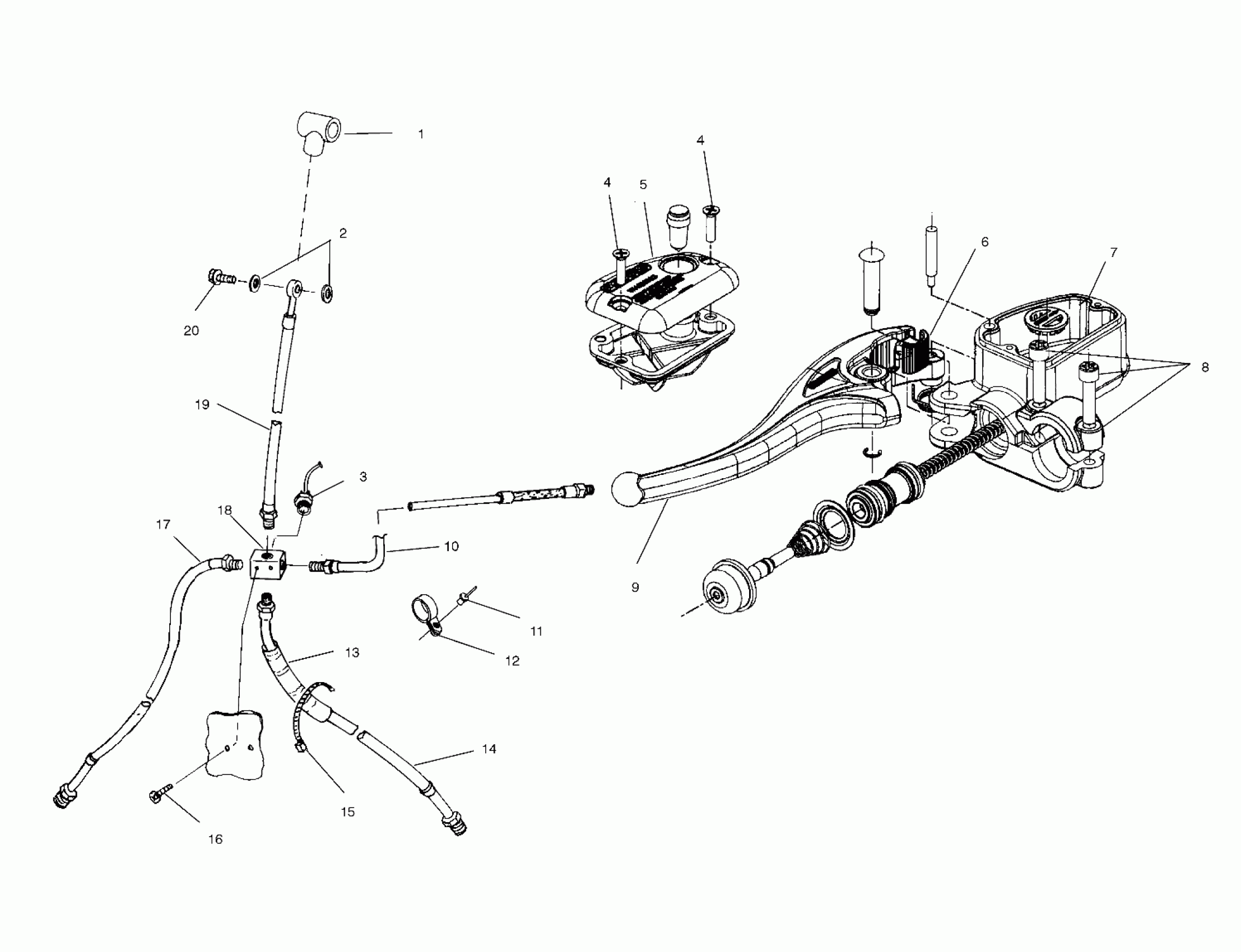

Polaris A04CH59AF SPORTSMAN 600 - A04CH59AF/AH/AJ/AT/AV CONTROLS - MASTER CYLINDER/BRAKE LINE - A04CH59AF/AH/AJ/AT/AV (4986108610B10) Diagram

#

Description
Price

1

Boot, Brake Line, Rubber

5411297

$2.07

2

Seal

5410988

$4.84

3

SWITCH

4110164

Unavailable

4

SCREW

7517899

$1.49

4

SCREW

7517899

$1.49

5

Kit, Master Cylinder Cap [Incl. Cap, Screws, Sight, Gasket]

2201834

Unavailable

6

KIT, MASTER CYLINDER PARK BRAKE LEVER [INCL. LEVER, SPRING]

2201836

$43.99

7

Asm., Master Cylinder

2010196

Unavailable

8

KIT, MASTER CYLINDER CLAMP [INCL. CLAMP, SCREWS]

2201833

$47.99

8

Screw (AT)(AV)

7518304

Unavailable

9

KIT, MASTER CYLINDER LEVER [INCL. PIN, LEVER, CLIP]

2201835

$59.99

10

Line, Brake, Hand, Rear

1910430

$96.52

11

Rivet

7621462

$1.49

12

Clamp, Nylon

7080539

$4.79

13

Conduit

8360031-34

Unavailable

14

Line, Brake, Left Front

1910474

$87.99

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

SCREW

7512024

$4.79

17

Line, Brake, Right Front

1910475

$89.03

18

FITTING, CROSS

7052292

$39.99

19

Line, Brake, Pod

1910470

$87.99

20

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99
