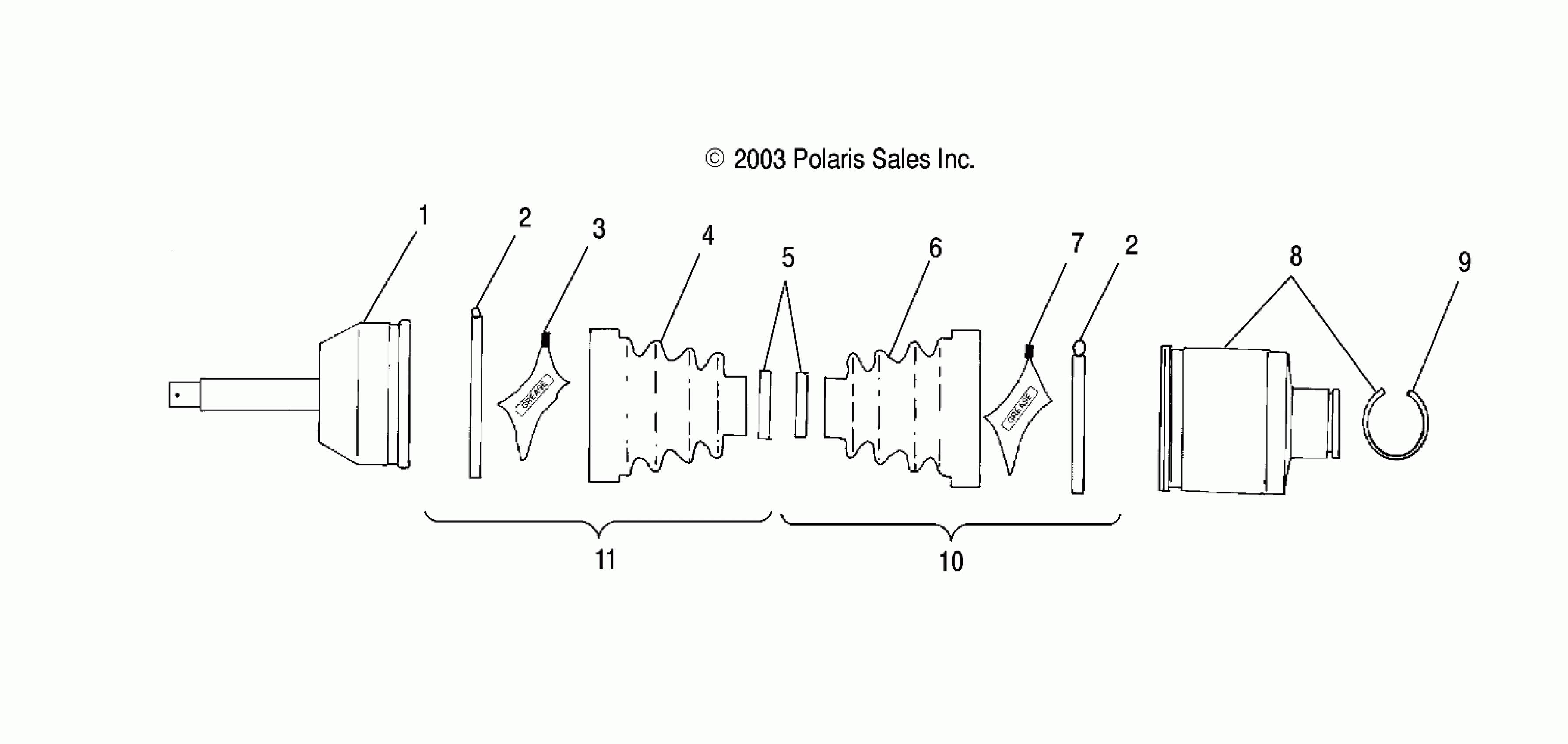

Polaris A04CH50AQ SPORTSMAN 500 - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX REAR DRIVE SHAFT - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX (4987288728B11) Diagram

Asm., Drive Shaft, Rear [Incl. 1-9](If built before 11/24/03)

1380197

Unavailable

Asm., Drive Shaft, Rear [Incl. 1-9](If built after 11/24/03)

1380240

Unavailable

CV Joint (If built before 11/24/03)(Use w/1380197)

1590362

Unavailable

CV Joint (If built after 11/24/03)(Use w/1380240)

1590280

Unavailable

Clamp, Large

1350044

$4.76

Clamp, Large

1350044

$4.76

Grease, 30g

1350046

$15.87

Boot (Qty. 1 for 1380240, Wheel Side)

1350045

Unavailable

Clamp, Small

1350043

$7.94

Boot, Rear (Gear Side)(1380240)

1332343

Unavailable

Grease, 50g

1350047

$15.87

Joint, Plunging

1590281

Unavailable

RING, SPRING

1350042

Unavailable

Kit, Boot [Gear Side](1380197)

2201374

Unavailable

Kit, Boot Replacement [Gear Side](1380240)

2202904

Unavailable

Kit, Boot [Wheel Side]

2201373

$56.99
