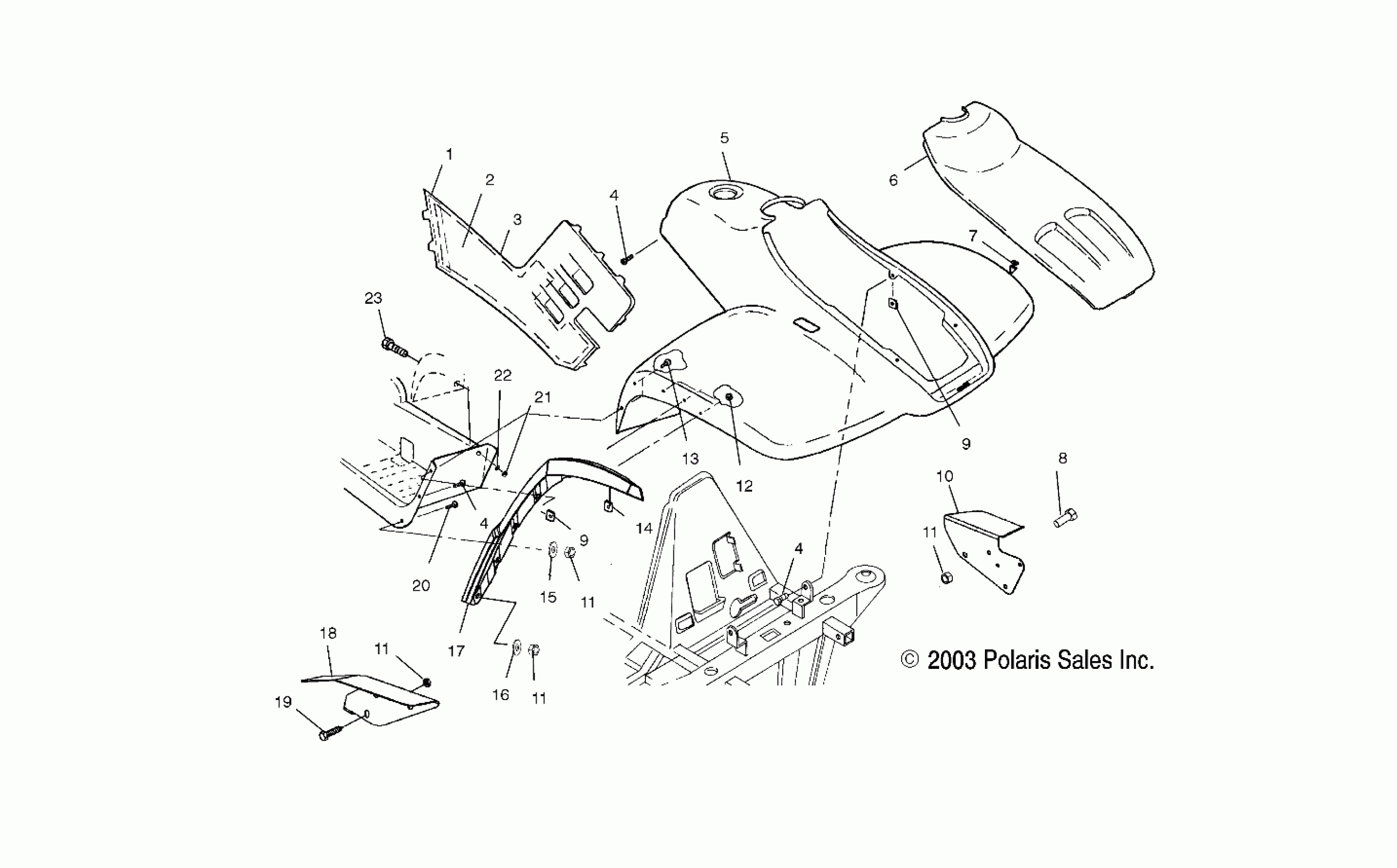

Polaris A04CH50AQ SPORTSMAN 500 - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX FRONT CAB - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX (4987288728A05) Diagram

#

Description
Price

1

Foil, Side Panel, Gen. IV, RH

5811491

Unavailable

2

Foil, Side Panel, RH [AQ](AR)(AS)(AW)

5812329

Unavailable

2

Foil, Side Panel, RH [AT][AV](AO)

5812326

Unavailable

3

Panel, Side, Camo Green Met, LH [AQ]

5435322-400

$87.30

3

Panel/Foil, Camo Green Met, RH [AQ]

2632471-400

Unavailable

3

Panel, Side, Break-Up, LH [AT](AO)

5435335-455

Unavailable

3

Panel/Foil, Break-Up, RH [AT](AO)

2632819-455

$165.86

3

Panel, Side, Shadowgrass, LH [AV]

5435335-456

$186.65

3

Panel/Foil, Shadowgrass, RH [AV]

2632819-456

Unavailable

3

Panel, Side, Med Yellow, LH (AR)

5435322-053

$95.19

3

Panel/Foil, Med Yellow, RH (AR)

2632471-053

Unavailable

3

Panel, Side, Sonic Blue Met, LH (AS)

5435322-341

Unavailable

3

Panel/Foil, Sonic Blue Met, RH (AS)

2632471-341

Unavailable

3

Panel, Side, Red, LH (AW)

5435322-288

$98.41

3

Panel/Foil, Red, RH (AW)

2632471-288

$99.19

3

Panel, Side, Avalanche Gray, LH (AX)

5435322-453

$99.19

3

Panel/Foil, Avalanche Gray, RH (AX)

2632471-453

$80.10

4

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

4

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

4

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

5

Cab, Front, Break-Up [AT](AO)

2632818-455

$559.99

5

Cab, Front, Shadowgrass [AV]

2632818-456

$559.99

5

Cab, Front, Med Yellow (AR)

2632748-053

Unavailable

5

Cab, Front, Sonic Blue Met (AS)

2632748-341

Unavailable

5

Cab, Front, Camo Green Met [AQ]

2632299-400

Unavailable

5

Cab, Front, Red (AW)

2632748-288

Unavailable

5

Cab, Front, Midnight blue Metallic (AX)

2632953-469

$239.19

6

Cover, Front, Break-Up [AT](AO)

5435166-455

$246.89

6

Cover, Front, Shadowgrass [AV]

5435166-456

Unavailable

6

Cover, Front, Med Yellow (AR)

5435110-053

Unavailable

6

Cover, Front, Sonic Blue Met (AS)

5435110-341

Unavailable

6

Cover, Front, Camo Green Met [AQ]

5432088-400

Unavailable

6

Cover, Front, Blazing Red (AW)

5435110-288

$66.39

6

Cover, Front, Midnight Blue Metallic (AX)

5435588-469

$99.19

7

Clip, Spring

7670085

$3.51

8

BOLT

7512240

$3.99

9

NUT, U-TYPE SPEED

7670057

$1.49

9

NUT, U-TYPE SPEED

7670057

$1.49

10

Guard, Splash, LH/Pump Mount

5246872

$44.99

11

NUT-M5X.8,HX NYL-Y

7546601

$1.49

11

NUT-M5X.8,HX NYL-Y

7546601

$1.49

11

NUT-M5X.8,HX NYL-Y

7546601

$1.49

11

NUT-M5X.8,HX NYL-Y

7546601

$1.49

12

Nut, Speed

7670135

$4.79

13

SCREW

7512232

$1.49

14

Clip, Retainer

7670156

Unavailable

15

WASHER

7556034

$2.39

16

Washer, Flat

7555859

$1.49

17

Guard, Mud, Front, LH

5434702-070

Unavailable

17

Guard, Mud, Front, RH

5434703-070

Unavailable

18

Guard, Splash, RH

5246021-067

$28.15

19

SCREW

7517386

$1.49

20

Screw

7515158

$4.79

21

Nut, Nylok

7541925

$1.49

22

WASHER

7555792

$4.79

23

Screw

7512085

Unavailable
