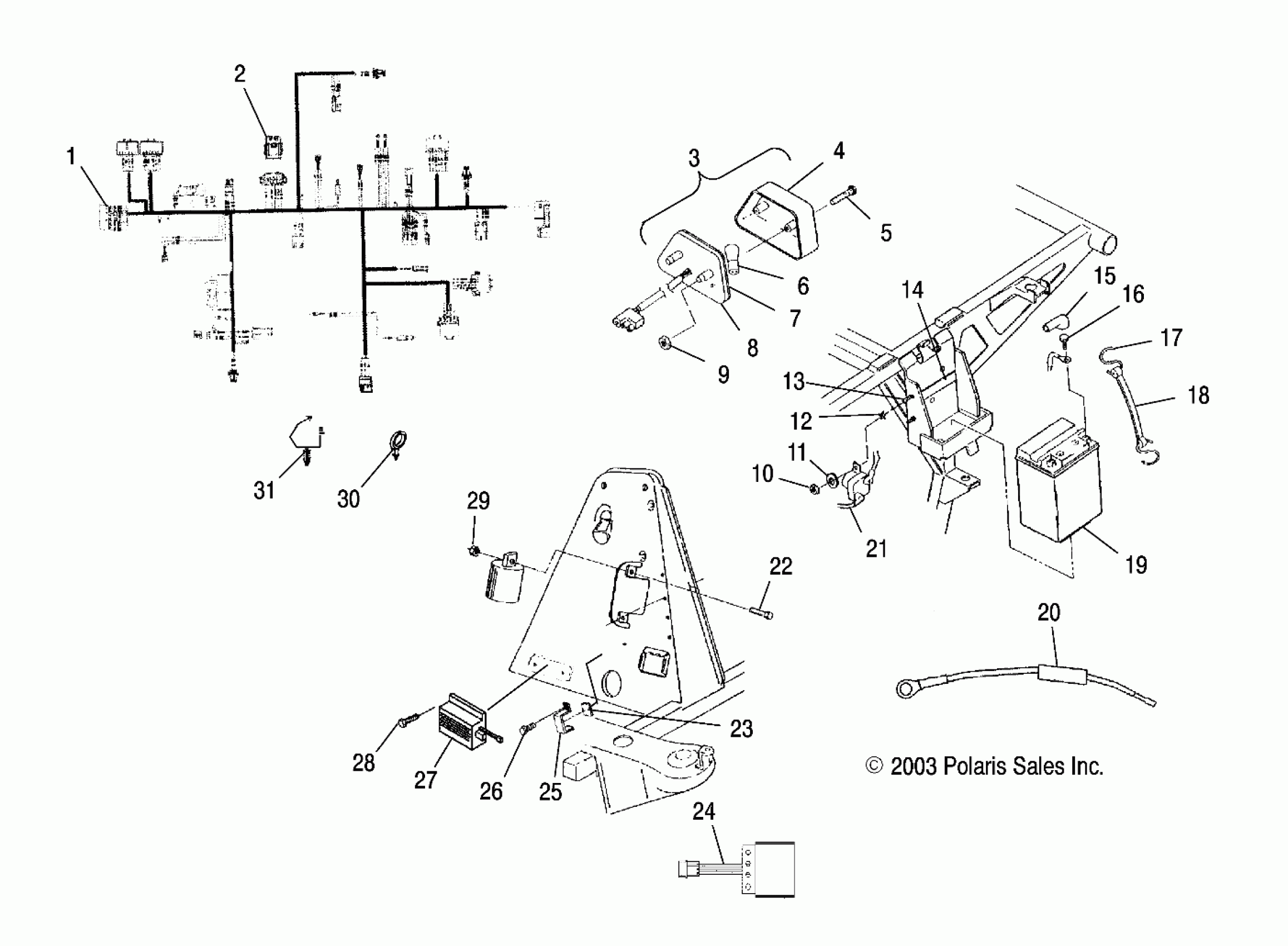

Polaris A04CH50AQ SPORTSMAN 500 - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX ELECTRICAL/TAILLIGHT - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX (4987288728C11) Diagram

#

Description
Price

1

Harness, Main

2461192

Unavailable

2

Kit, Harness, Resistor Module

2204890

$127.99

3

Asm., Taillight 12V [Incl. 4-9]

2410320

$63.99

4

Lens, Taillight

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

Bulb, Taillight

4030043

$6.46

7

Gasket, Taillight

4032045

$4.03

8

Backing, Taillight/Brake Light

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

NUT

7542105

$3.99

11

WASHER, SPRING LOCK

7552801

$1.59

12

Washer

7571602

$4.79

13

Screw

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

Cable, Battery/Solenoid [AQ]

4010094

Unavailable

16

Kit, Battery Bolt, Short

2200361

$3.99

17

Hook, Battery Strap

7010032

$1.59

18

Strap, Battery Holddown (If built after 8/18/03)

5412499

$4.62

18

Strap, Battery Holddown (If built before 8/18/03)

5410424

Unavailable

19

Battery

4010774

$107.99

20

Kit, Fusible Link

2202147

$79.99

21

Cable, Solenoid/Starter

4010093

$47.99

22

BOLT

7512007

$3.99

23

PAD, RACK MOUNT

5810455

$3.19

24

Module, Load Shed [AT][AV]

4010970

Unavailable

25

BRACKET, CDI

5246747

$7.99

26

SCREW

7512024

$4.79

27

Module, Controller

4010937

Unavailable

28

SCREW

7512024

$4.79

29

Nut, Nylok

7541925

$1.49

30

Clip, Rosebud

4020149

$6.39

31

CLIP, ROUTING

7670109

$2.39
