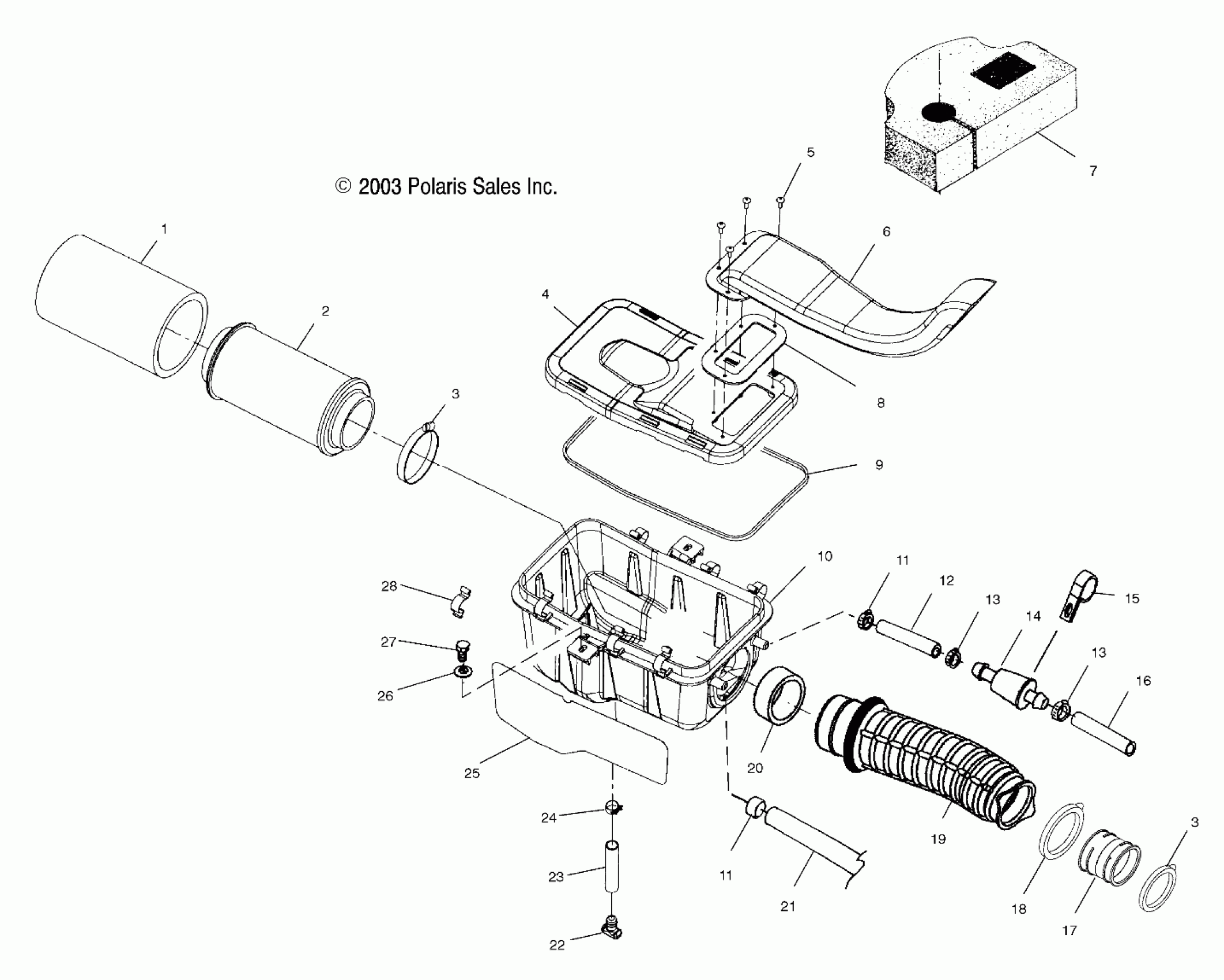

Polaris A04CH50AQ SPORTSMAN 500 - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX AIR BOX - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX (4987288728B02) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.90

2

FILTER, AIR INTAKE

7080595

$27.78

3

Clamp, Narrow Band

7080413

$3.17

3

Clamp, Narrow Band

7080413

$3.17

4

Cover, Air Box

5432868

$56.65

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

6

Duct, Air Inlet

5433293

$69.99

7

Seal, Foam

5811626

$32.37

8

Gasket, Intake

5411422

$6.59

9

Seal, Air Box Cover

5811482

$28.32

10

Box, Air

5433387

$137.60

11

Clamp, Hose

7080699

$1.59

11

Clamp, Hose

7080699

$1.59

12

Line, Breather

8450073-600

Unavailable

13

Clamp, Hose

7080544

Unavailable

13

Clamp, Hose

7080544

Unavailable

14

Filter, Breather

2530029

$6.35

15

P-Clamp

7080913

$5.56

16

Hose, Breather

5411858

Unavailable

17

Boot, Carb

5412004

Unavailable

18

Clamp, Narrow

7080511

$4.76

19

Boot, Carb

5412284

Unavailable

20

Sleeve

5433847

$14.56

21

Hose, Breather

5411858

Unavailable

22

Plug, Trap (If built after 7/21/03)

5435299

$6.46

22

Plug, Trap (If built before 7/21/03)

5432377

Unavailable

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080694

$6.64

25

Foil, Air Box

5811650

Unavailable

26

Washer, Flat

7558301

$1.19

27

Screw

7515179

$2.38

28

CLIP-AIR BOX

5242044

$9.52
