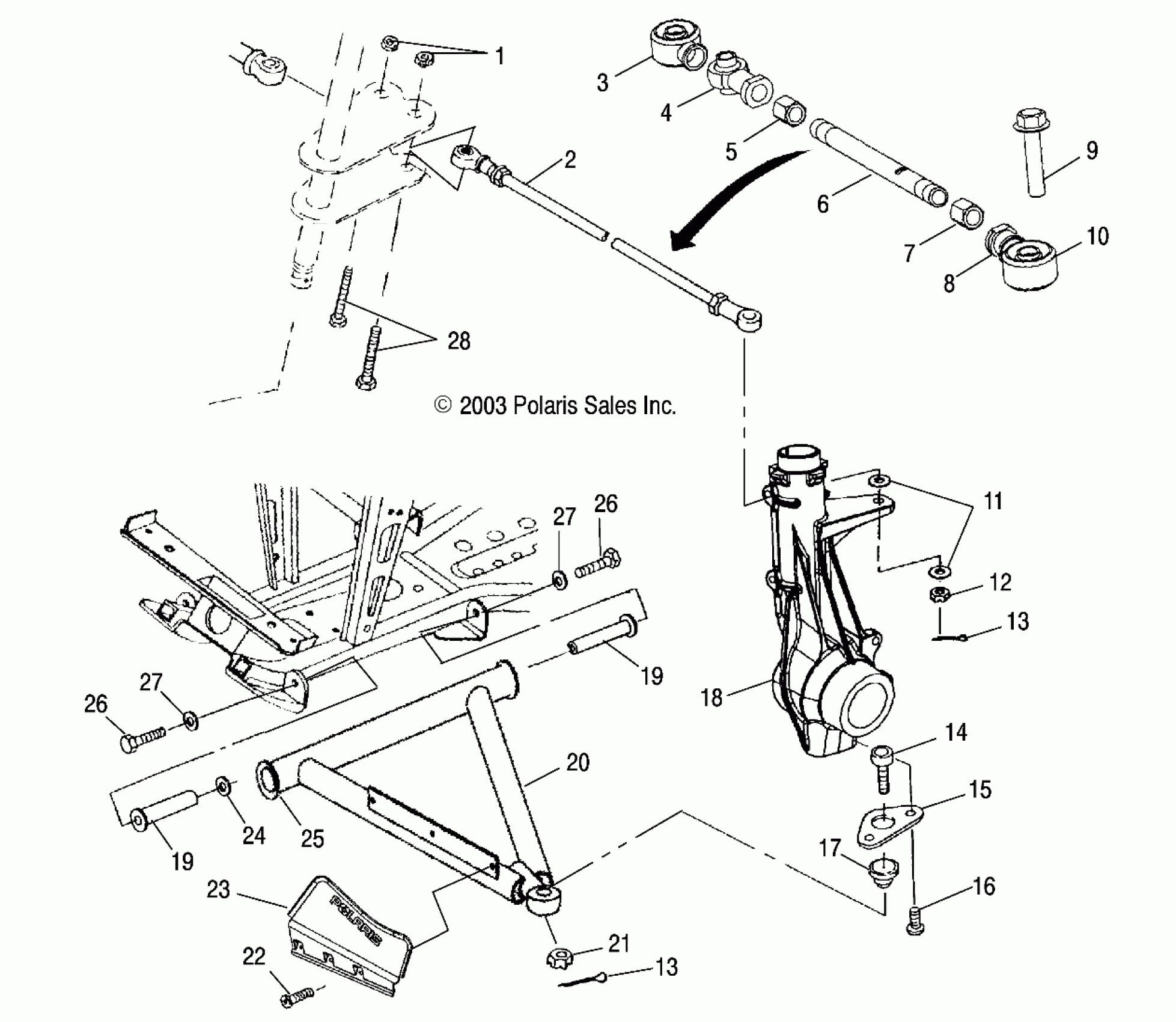

Polaris A04CH50AQ SPORTSMAN 500 - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX A-ARM/STRUT MOUNTING - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX (4987288728C03) Diagram

#

Description
Price

1

Nut, FLEXLOC

7542439

$1.19

2

Asm., Tie Rod [Incl. 3-8]

1820805

$133.56

3

Boot, Seal, Rod End

5411291

$11.32

4

Rod End

7061034

$60.70

5

Nut

7542711

$2.38

6

Tie Rod

5020926

$44.51

7

Nut, Jam, LH

7547028

$2.38

8

Rod End, LH

7061054

$56.65

9

Bolt

7517909

$5.56

10

Boot, Seal, Rod End

5411920

$11.32

11

Washer, Flat

7556099

$1.59

12

Nut

7547177

$0.79

13

Pin, Cotter

7661203

$1.19

13

Pin, Cotter

7661203

$1.19

14

Joint, Ball

7080927

$28.32

15

BRACKET-BALL JOINT

5211121

$32.37

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

Boot, Rubber

5410548

$4.84

18

ASM., HUBSTRUT [SEE FRONT STRUT PG. B13, REF. 11]

----

Unavailable

19

Bushing, A-Arm, Long

5434551

$5.56

19

Bushing, A-Arm, Long

5434551

$5.56

20

Kit, A-Frame, LH [Incl. 13,19,24,25,26]

2202274

$151.99

20

Kit, A-Frame, RH [Incl. 13,19,24,25,26]

2202275

Unavailable

21

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

22

Screw

7512084

$1.19

23

Shield, CV Joint, LH

5435028-070

$24.27

23

Shield, CV Joint, RH

5435029-070

$24.27

24

WSHR-.813X.406X.105-Y

7555832

$2.38

25

Shaft, A-Arm

5133806

$33.24

26

Screw

7512492

$1.19

26

Screw

7512492

$1.19

27

Washer, Spring Lock

7552603

$0.79

27

Washer, Spring Lock

7552603

$0.79

28

Screw

7515415

$1.19
