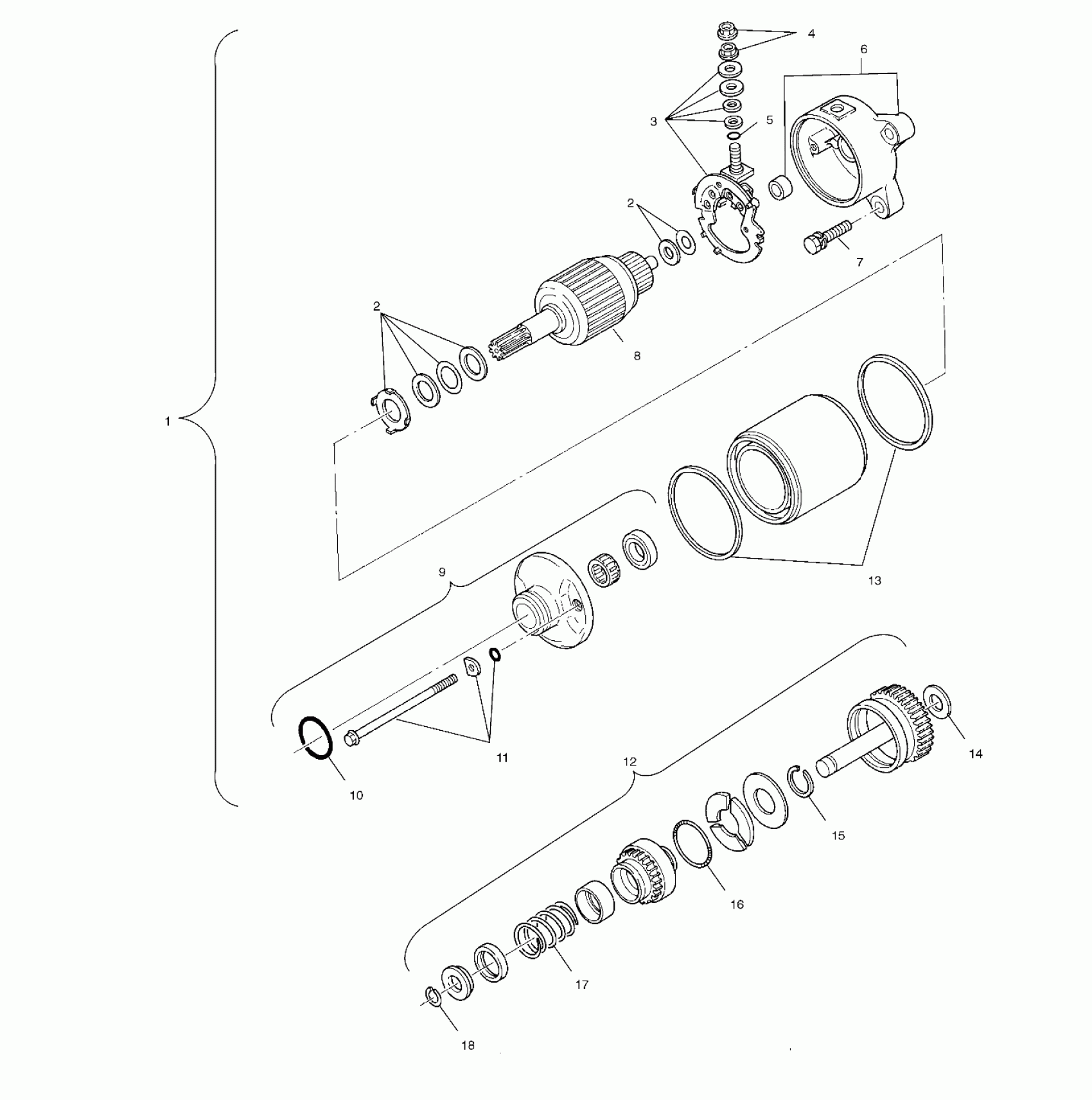

Polaris A04CH42AA SPORTSMAN 400 - A04CH42AA/AE/AG STARTING MOTOR - A04CH42AA/AE/AG (4986068606D12) Diagram

#

Description
Price

1

Starting Motor [Incl. 2-6,8-11,13]

3084981

Unavailable

2

Washer Set

3088163

Unavailable

2

Washer Set

3088163

Unavailable

3

Brush, Carbon

3088169

$115.99

4

Nut, Flange

3088166

Unavailable

5

O-Ring

3088165

Unavailable

6

Bracket, Rear

3085034

$91.99

7

Bolt and Washer

3082038

$3.99

8

Armature

3088168

Unavailable

9

Asm., Front Bracket [Incl. 10]

3088160

Unavailable

10

O-Ring

3088161

Unavailable

11

Asm., Bolt Set [Incl. 5]

3088164

Unavailable

12

Asm., Gear Shaft [Incl. 14-18]

3087030

Unavailable

13

Ring, Rubber

3088162

Unavailable

14

Washer, Gear Shaft

3083737

Unavailable

15

CLIP

3084412

$9.59

16

SPRING, WEIGHT

3084411

$15.67

17

SPRING, RETURN

3084410

$2.47

18

CLIP

3084409

$7.19
