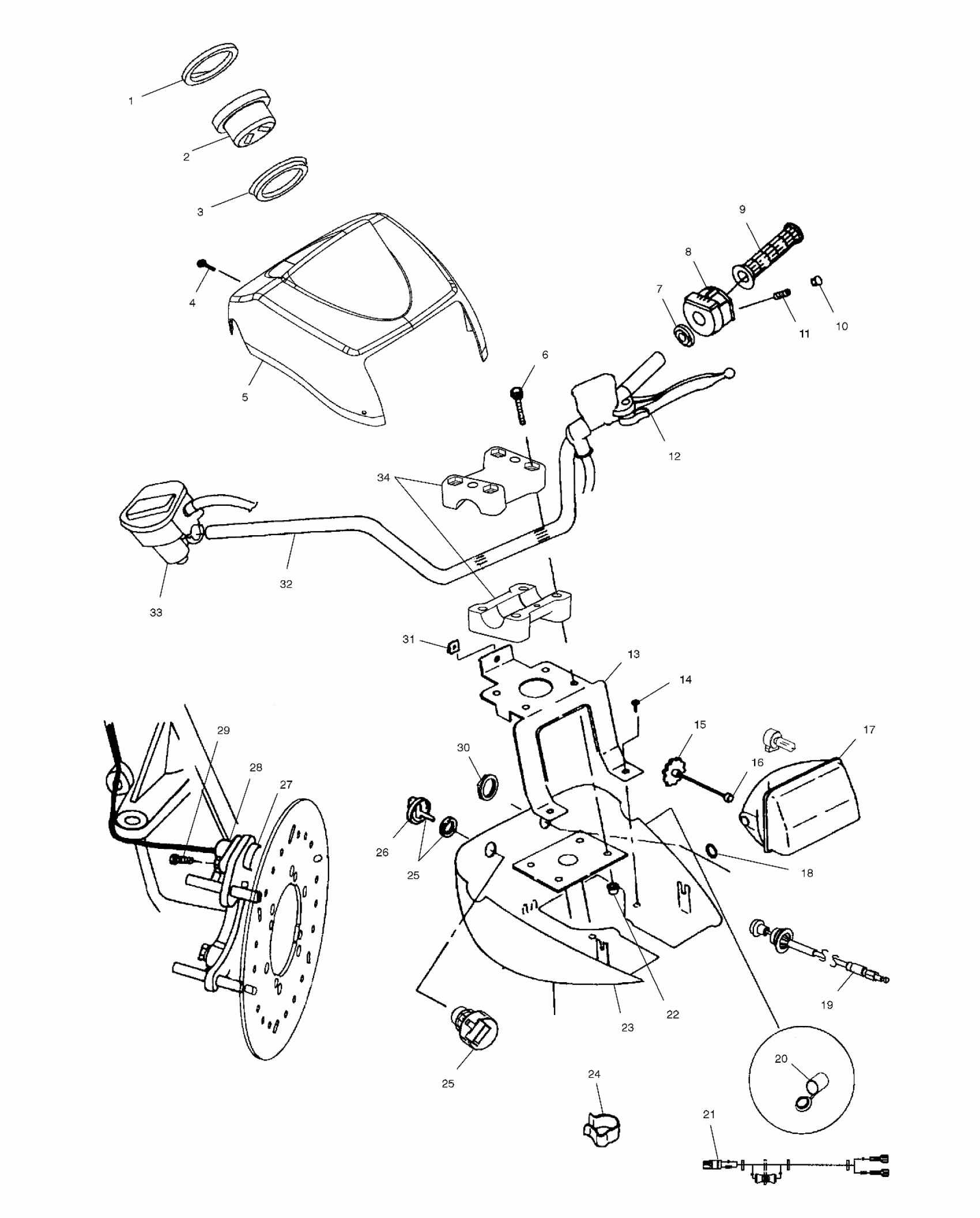

Polaris A04CH42AA SPORTSMAN 400 - A04CH42AA/AE/AG HANDLEBAR AND HEADLIGHT POD - A04CH42AA/AE/AG (4986068606C01) Diagram

#

Description
Price

1

Bezel

5434380

Unavailable

2

Cluster

3280431

$343.99

3

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

5

Pod, Handlebar, Upper [AA]

5434706-400

Unavailable

5

Pod, Handlebar, Upper [AE]

5434706-053

Unavailable

5

Pod, Handlebar, Upper [AG]

5434706-341

Unavailable

6

SCREW

7517238

$4.79

7

Spacer, Switch, LH

5433903

Unavailable

8

Switch, Handlebar [If built before 2/03/03]

4010560

$123.54

8

Switch, Handlebar [If built after 2/03/03]

4010591

$127.99

9

Grip, Handlebar

5433834-070

$24.27

10

Plug

5432952

$5.59

11

SCREW, SET

7517625

$4.79

12

ASM., MASTER CYLINDER [SEE CONTROLS - MASTER CYLINDER/BRAKE LINE PG. B3 FOR DETAILS]

-------

Unavailable

13

Bracket, Pod Mounting

5244969-067

$44.99

14

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

15

KNOB, ADJUSTING

4032079

$23.99

16

Rod, Adjusting

4032078

Unavailable

17

KIT-HARNESS,HEADLIGHT

2204143

$71.99

17

BULB-HEADLIGHT,50 WATT

4010253

$34.99

17

Asm., Headlamp

2410268

$109.27

18

O-RING

5410163

$1.60

19

Cable, Choke

7081008

$79.99

20

Receptacle, Pod Mount, 12V

4010283

Unavailable

21

Harness, Light, Pod/Accy.

2461045

Unavailable

22

Nut, Nylok

7542122

$1.49

23

Pod, Headlight [AA]

5433762-070

$114.99

24

Clip, Cable Retaining

7080631

$6.29

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

25

Switch, Ignition [Incl. Key]

4010390

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

25

Switch, Ignition [Incl. Key]

4010390

Unavailable

26

KEY SWITCH KEY COVER

5433534

$12.35

27

CAP

5132382

$23.99

28

Sensor

4010298

$111.99

29

Screw

7517658

$5.59

30

Nut, Choke

7080922

$3.19

31

CLIP, SCREW

7670127

$9.59

32

Tube, Handlebar

5242987-067

$114.99

33

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B4, REF. 5]

-------

Unavailable

34

Block, Handlebar, Pegged

5631146

$10.71

34

Block, Handlebar

5631147

Unavailable
