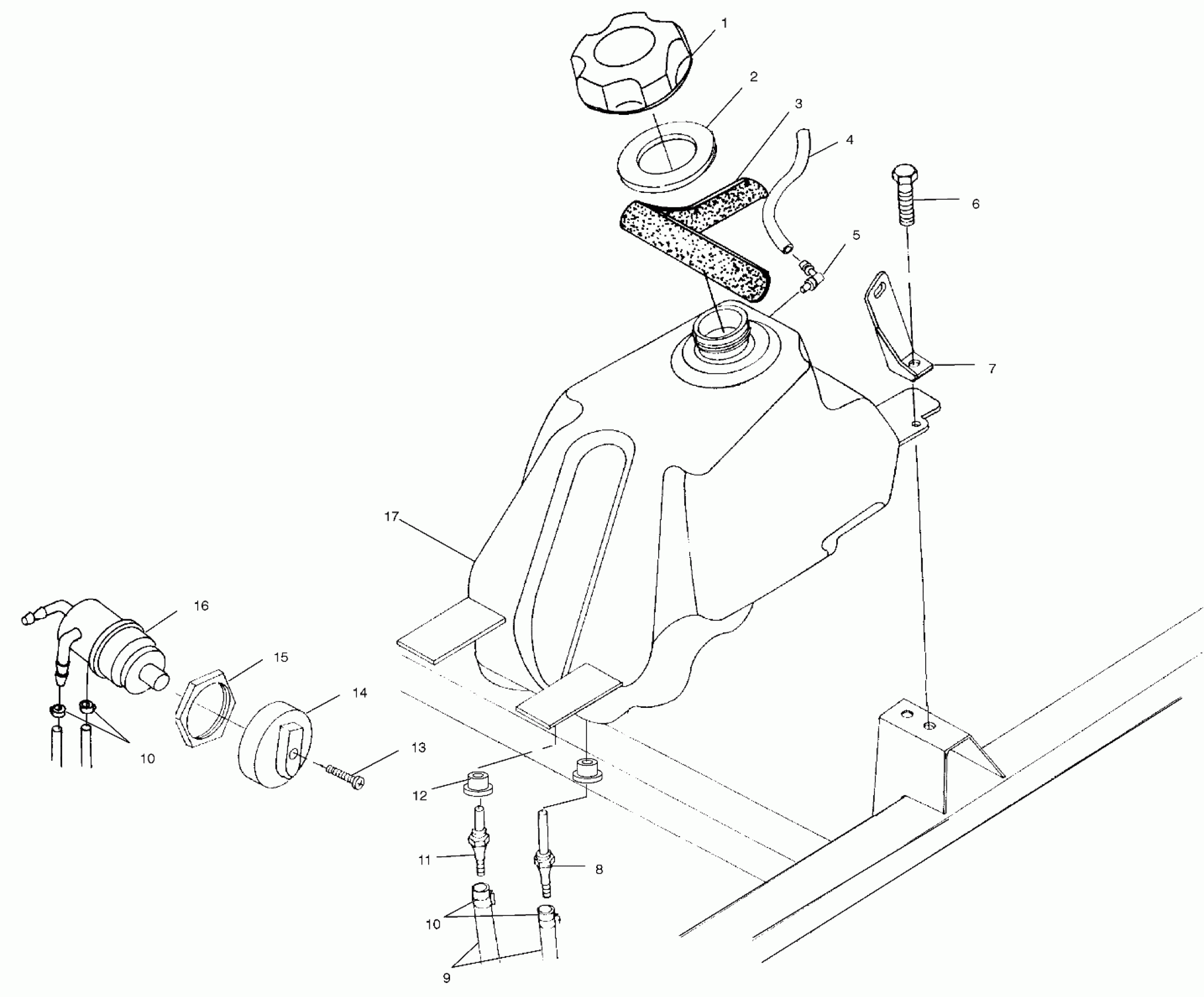

Polaris A04CH42AA SPORTSMAN 400 - A04CH42AA/AE/AG FUEL TANK - A04CH42AA/AE/AG (4986088608A12) Diagram

Cap, Gas Tank

5433687

$20.22

Gasket, Fuel Cap

5812123

$5.65

Seal, Foam

5812210

Unavailable

LINE, FUEL

8360009-600

Unavailable

Vent, Tank

5431053

$19.99

SCREW

7517685

$1.59

Bracket, Mounting, Rear, LH

5247184

Unavailable

Bracket, Mounting, Rear, RH

5247185

$43.99

Fitting, Fuel Outlet, Main [If built after 2/12/03]

7052347

Unavailable

Fitting, Fuel Outlet, Main [If built before 2/12/03]

7052150

$27.99

Hose, Fuel

8450103

Unavailable

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

Fitting, Fuel Outlet, Reserve [If built before 2/12/03]

7052149

$23.99

Fitting, Fuel Outlet, Reserve [If built after 2/12/03]

7052346

$27.99

Grommet [If built after 2/12/03]

7052362

$9.99

Screw

7517505

$1.59

Knob, Fuel Valve

5432559

$10.39

Nut, Fuel Valve

5432733

Unavailable

Valve, 3-Way

7052161

$39.99

Asm., Fuel Tank [Incl. 8,11][If built before 2/12/03]

2520144

Unavailable

Asm., Fuel Tank [Incl. 8,11][If built after 2/12/03]

2520360

Unavailable
