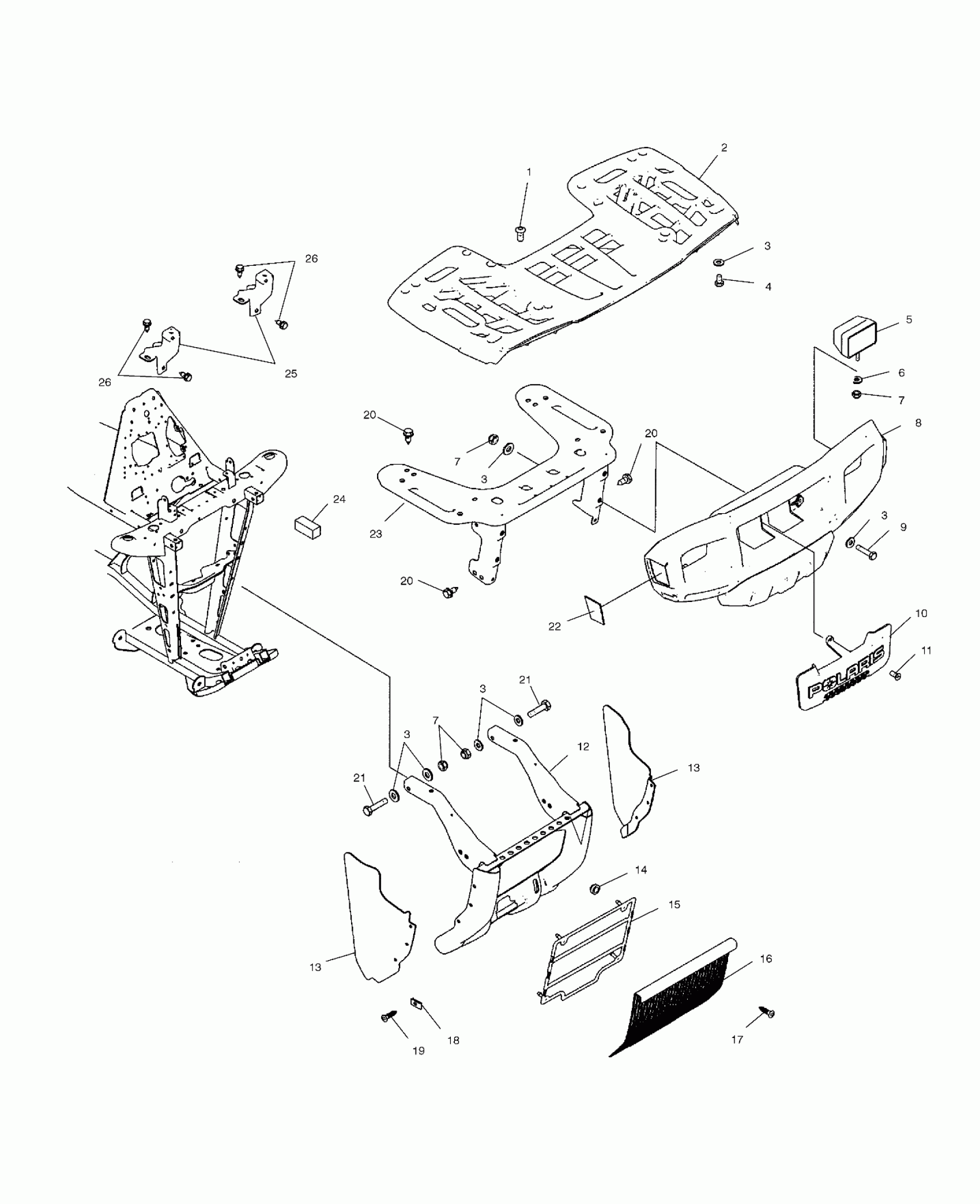

Polaris A04CH42AA SPORTSMAN 400 - A04CH42AA/AE/AG FRONT RACK AND BUMPER MOUNTING - A04CH42AA/AE/AG (4986068606A07) Diagram

#

Description
Price

1

SCREW

7517685

$1.59

2

Rack, Front, Black [If built before 2/03/03]

5434697-070

Unavailable

2

Rack, Front, Black [If built after 2/03/03]

5435240-070

$231.99

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

Screw

7512307

$3.99

5

Headlight

2431017

Unavailable

5

Bulb, Replacement, 27W

4030059

Unavailable

6

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

Asm., Bumper, Front, Black [Incl. Warning Decal]

2632758-070

Unavailable

9

Screw

7515306

Unavailable

10

Panel

5434699-070

Unavailable

11

SCREW

7512094

$1.59

12

Guard, Brush

1013366-067

Unavailable

13

Shield, Side, Radiator, LH

5434314

$44.99

13

Shield, Side, Radiator, RH

5434315

Unavailable

13

Shield, Side, Radiator, LH

5434314

$44.99

13

Shield, Side, Radiator, RH

5434315

Unavailable

14

Grommet

5410774

Unavailable

15

Cover, Radiator

5435046

$47.99

16

Grill

5247137-067

$64.99

17

Screw

7522021

$3.99

18

Nut, U-Type

7670094

$5.59

19

Screw

7512097

$3.99

20

SCREW

7515399

$1.49

20

SCREW

7515399

$1.49

20

SCREW

7515399

$1.49

21

Screw

7512329

$3.99

21

Screw

7512329

$3.99

22

Decal, Reflector, Amber, LH

7171474

Unavailable

22

Decal, Reflector, Amber, RH

7171475

Unavailable

23

Support, Front Rack

1014020-067

$199.98

24

PLUG, FRAME

5810467

Unavailable

25

Support, Front Rack, LH

1014261-067

Unavailable

25

Support, Front Rack, RH

1014262-067

Unavailable

26

SCREW

7512232

$1.49

26

SCREW

7512232

$1.49
