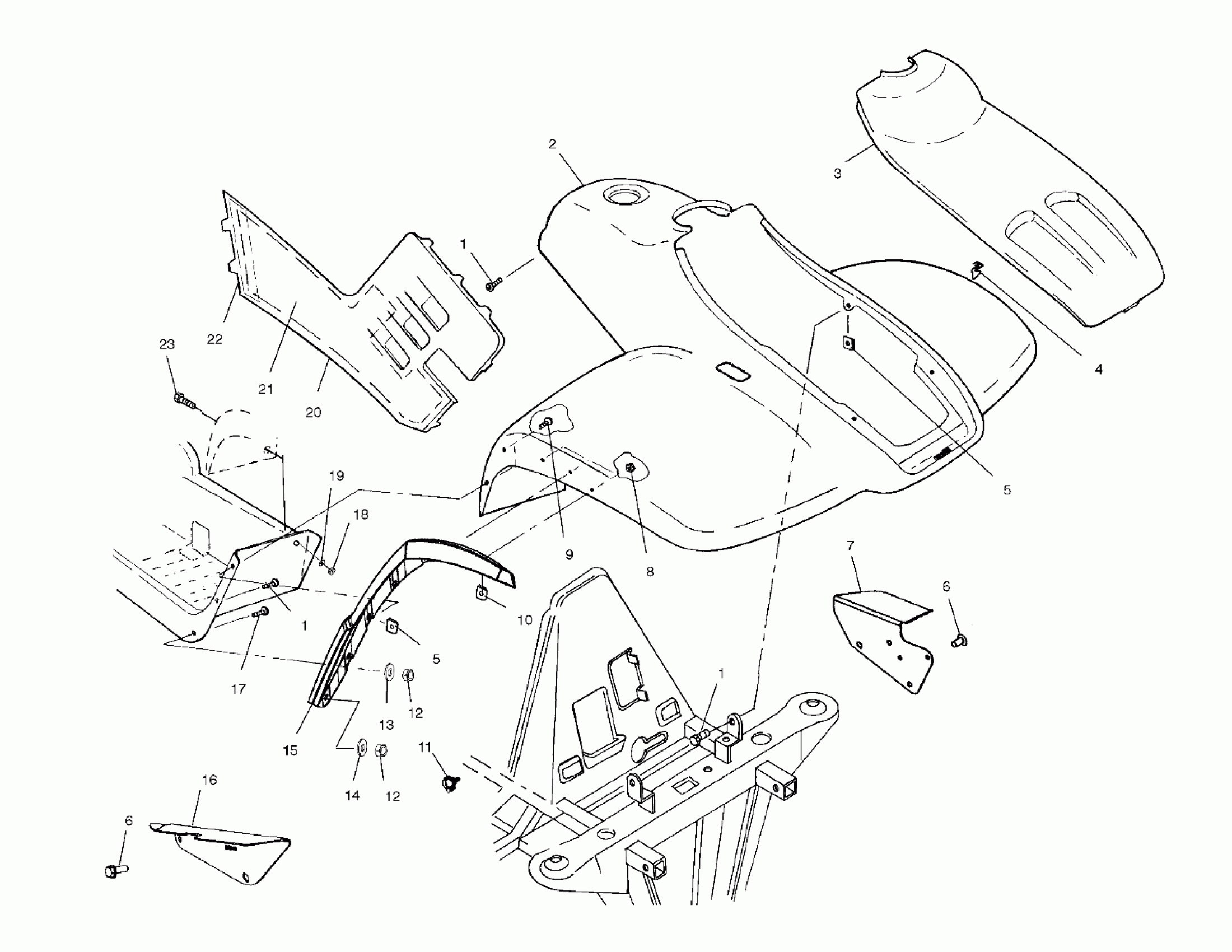

Polaris A04CH42AA SPORTSMAN 400 - A04CH42AA/AE/AG FRONT CAB - A04CH42AA/AE/AG (4986068606A05) Diagram

#

Description
Price

1

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

1

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

1

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

2

Cab, Front, Camo Green Met [AA]

2632299-400

Unavailable

2

Cab, Front, Yellow [AE]

2632299-053

Unavailable

2

Cab, Front, Sonic Blue [AG]

2632299-341

Unavailable

3

Cover, Front, Camo Green Met [AA]

5432088-400

Unavailable

3

Cover Front, Yellow [AE]

5432088-053

$99.19

3

Cover, Front, Sonic Blue [AG]

5432088-341

Unavailable

4

Clip, Spring

7670085

$3.51

5

NUT, U-TYPE SPEED

7670057

$1.49

5

NUT, U-TYPE SPEED

7670057

$1.49

6

Rivet, Plasti-Loc

7621509

$1.49

6

Rivet, Plasti-Loc

7621509

$1.49

7

Guard, Splash/Pump Mount, LH

5246872

$44.99

8

Nut, Speed

7670135

$4.79

9

SCREW

7512232

$1.49

10

Clip, Retaining

7670156

Unavailable

11

CLIP, ROSEBUD

4020139

$4.79

12

Nut, Nylok

7542122

$1.49

12

Nut, Nylok

7542122

$1.49

13

WASHER

7556034

$2.39

14

Washer, Flat

7555859

$1.49

15

Guard, Mud, Front, LH

5434702-070

Unavailable

15

Guard, Mud, Front, RH

5434703-070

Unavailable

16

Guard, Splash, RH

5244914-067

Unavailable

17

Screw

7515158

$4.79

18

Nut, Nylok

7541925

$1.49

19

WASHER

7555792

$4.79

20

Foam, LH

5812138

$6.39

20

Panel/Foam, Camo Green Met, LH [AA]

2632289-400

Unavailable

20

Panel/Foam, Yellow, LH [AE]

2632289-053

$124.99

20

Panel/Foil, Camo Green Met, RH [AA]

2620085-400

Unavailable

20

Panel/Foil, Yellow, RH [AE]

2620085-053

Unavailable

20

Panel/Foam, Sonic Blue, LH [AG]

2632289-341

Unavailable

20

Panel/Foil, Sonic Blue, RH [AG]

2620085-341

$95.24

21

Foil, Side Panel, RH

5812329

Unavailable

22

Foil, Side Panel, RH

5811491

Unavailable

23

Screw

7512085

Unavailable
