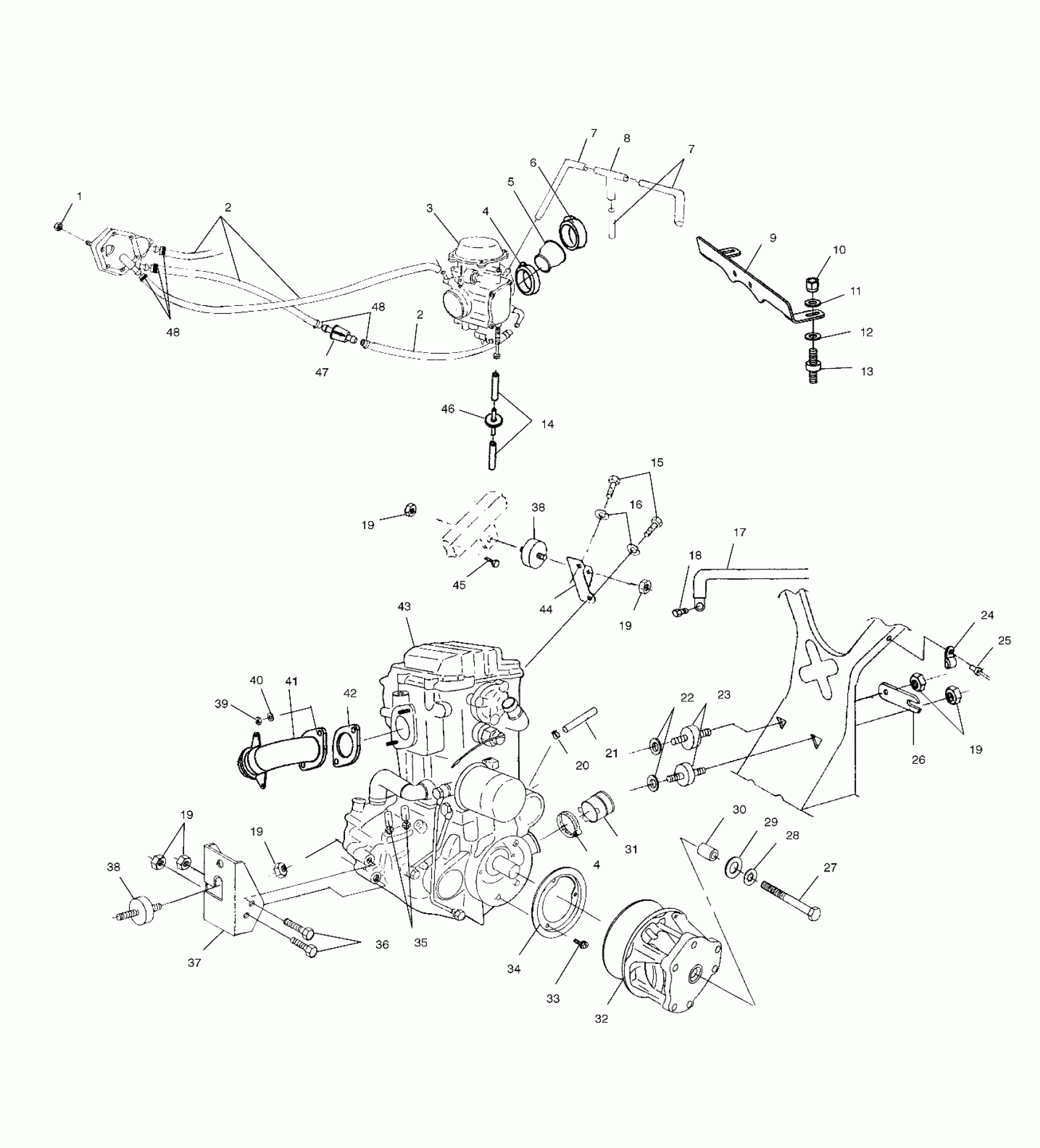

Polaris A04CH42AA SPORTSMAN 400 - A04CH42AA/AE/AG ENGINE MOUNTING - A04CH42AA/AE/AG (4986068606A13) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

Line, Fuel

8450040-600

Unavailable

2

Line, Fuel

8450040-600

Unavailable

3

ASM., CARBURETOR [SEE CARBURETOR PG. D6, REF. 9]

-------

Unavailable

4

Clamp, Narrow Band

7080511

$4.79

4

Clamp, Narrow Band

7080511

$4.79

5

Boot, Carburetor

5410995

Unavailable

6

CLAMP, NARROW BAND

7080909

$7.99

7

Line, Fuel

8450003-1525

Unavailable

7

Line, Fuel

8450003-1525

Unavailable

8

FITTING, TEE

7052075

$9.59

9

Strap, Carburetor Mount

5247154

Unavailable

10

NUT

7542105

$3.99

11

WASHER

7558203

$3.19

12

INSERT

7542143

$5.59

13

Mount, Carb

3110050

$12.99

14

LINE, FUEL

8360009-600

Unavailable

15

BOLT

7512315

$4.79

16

WASHER, SPRING LOCK

7552901

$1.49

17

CABLE, BLACK, FRAME/ENGINE

4010895

$27.99

18

ASM., BOLT AND WASHER

3082038

$3.99

19

NUT, FLANGE LOCK

7547108

$4.79

19

NUT, FLANGE LOCK

7547108

$4.79

19

NUT, FLANGE LOCK

7547108

$4.79

19

NUT, FLANGE LOCK

7547108

$4.79

19

NUT, FLANGE LOCK

7547108

$4.79

20

Clamp, Spring Hose

7080694

$6.53

21

HOSE, BREATHER [SEE AIR BOX PG. B1, REF. 18]

-------

Unavailable

22

Washer

7555815

$3.99

23

Mount, Rubber, Front

3110046

Unavailable

24

Clamp, Nylon

7080539

$4.79

25

Rivet

7621462

$1.49

26

Strap, Frame Support

5224658-067

Unavailable

27

BOLT

7512566

$30.79

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

29

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

30

BUSHING-.437 X.770 X.50

5430261

$7.19

31

Boot, Clutch Intake

5410421

$11.19

32

ASM., DRIVE CLUTCH, BRAKING [SEE DRIVE CLUTCH PG. C5, REF. 14]

-------

Unavailable

33

SCREW AND WASHER [SEE CRANKCASE PG. D1, REF. 6]

-------

Unavailable

34

BRACKET, RETAINER, SEAL [SEE CLUTCH COVER PG. C7, REF. 21]

-------

Unavailable

35

CLAMP-HOSE,.875-SS

7080474

$8.40

36

SCREW

7515417

$4.79

37

Mount, Engine, Front

5241150

Unavailable

38

Mount, Rubber, Top

3110044

Unavailable

38

Mount, Rubber, Top

3110044

Unavailable

39

NUT [SEE CYLINDER PG. D2, REF. 23]

-------

Unavailable

40

WASHER [SEE CYLINDER PG. D2, REF. 22]

-------

Unavailable

41

Manifold, Black

1261043-029

Unavailable

42

GASKET, EXHAUST [SEE CYLINDER PG. D2, REF. 34]

-------

Unavailable

43

Engine, Short Block [EH42PLE053] NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f

3087023

Unavailable

44

Mount, Engine, Top

5241453

$7.99

45

SCREW

7512232

$1.49

46

Valve, Check Vent

7051011

Unavailable

47

FILTER

2530009

$5.65

48

HOSE CLAMP, RED

7080003

$1.49

48

HOSE CLAMP, RED

7080003

$1.49
