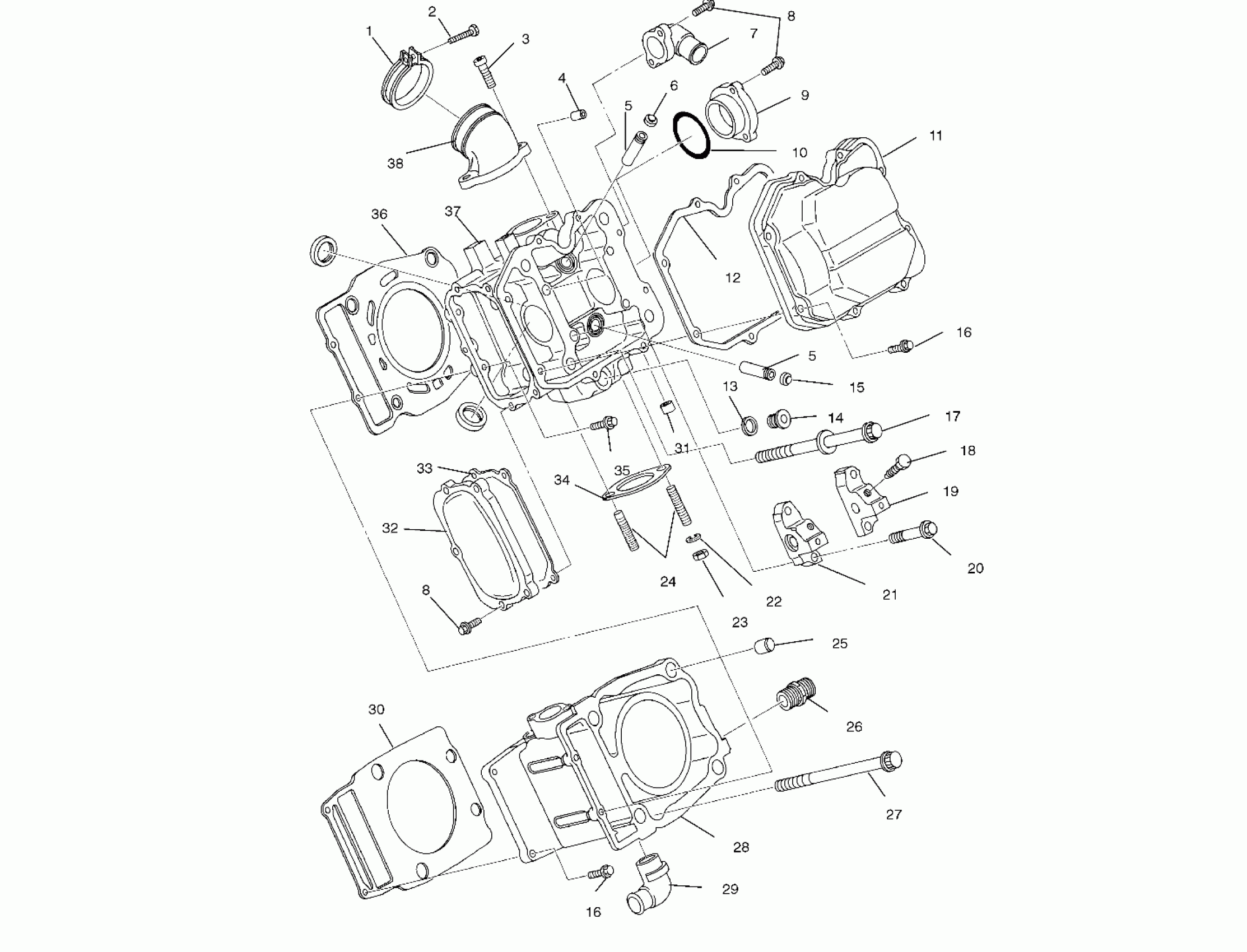

Polaris A04CH42AA SPORTSMAN 400 - A04CH42AA/AE/AG CYLINDER - A04CH42AA/AE/AG (4986068606D02) Diagram

#

Description
Price

1

Asm., Band, Adapter [Incl. 2]

3083166

$19.84

2

SCREW

3081497

$2.39

3

BOLT, SOCKET HEAD

3081330

$3.99

4

Pin, Straight

3084857

Unavailable

5

GUIDE, VALVE

3084994

$39.99

5

GUIDE, VALVE

3084994

$39.99

6

Seal, Intake Valve

3084858

$13.59

7

Adapter, Water Out

3085072

Unavailable

8

BOLT, FLANGE

3084877

Unavailable

8

BOLT, FLANGE

3084877

Unavailable

9

ADAPTER, CAMSHAFT

3084866

Unavailable

10

O-RING

3084867

$23.99

11

COVER, ROCKER

3085073

$75.99

12

GASKET, ROCKER COVER

3085074

$31.99

13

GASKET

3084861

$4.79

14

PLUG

3084860

$7.19

15

SEAL, EXHAUST VALVE

3084859

$23.99

16

BOLT, FLANGE

3084874

Unavailable

16

BOLT, FLANGE

3084874

Unavailable

17

Bolt, Cylinder Head

3084875

Unavailable

18

BOLT, ROCKER SHAFT

3085854

Unavailable

19

SUPPORT, VALVE ROCKER SHAFT

3084864

Unavailable

20

BOLT

3084876

$4.79

21

SUPPORT, VALVE ROCKER SHAFT

3084863

$91.99

22

Washer, Lock

3080530

$3.19

23

Nut

3087199

Unavailable

24

Stud

3085326

Unavailable

25

PIPE, KNOCK

3087266

Unavailable

26

Union, Oil Pump

3084849

Unavailable

27

BOLT, FLANGE

3084873

Unavailable

28

Cylinder [Incl. 29]

3087062

Unavailable

29

Pipe 2, Elbow

3084130

Unavailable

30

Gasket, Cylinder

3085370

$38.60

31

PLUG, BLIND

3084862

Unavailable

32

Cover, Camshaft

3088717

$56.65

33

Gasket, Cover Cam

3086200

Unavailable

34

Gasket, Exhaust

3085075

$39.99

35

Bolt, Flange

3084215

Unavailable

36

GASKET, HEAD

3085337

$55.99

37

Cylinder Head [Incl. 4-6,13-15,24,31]

3085527

$712.79

38

ADAPTER

3084879

Unavailable
