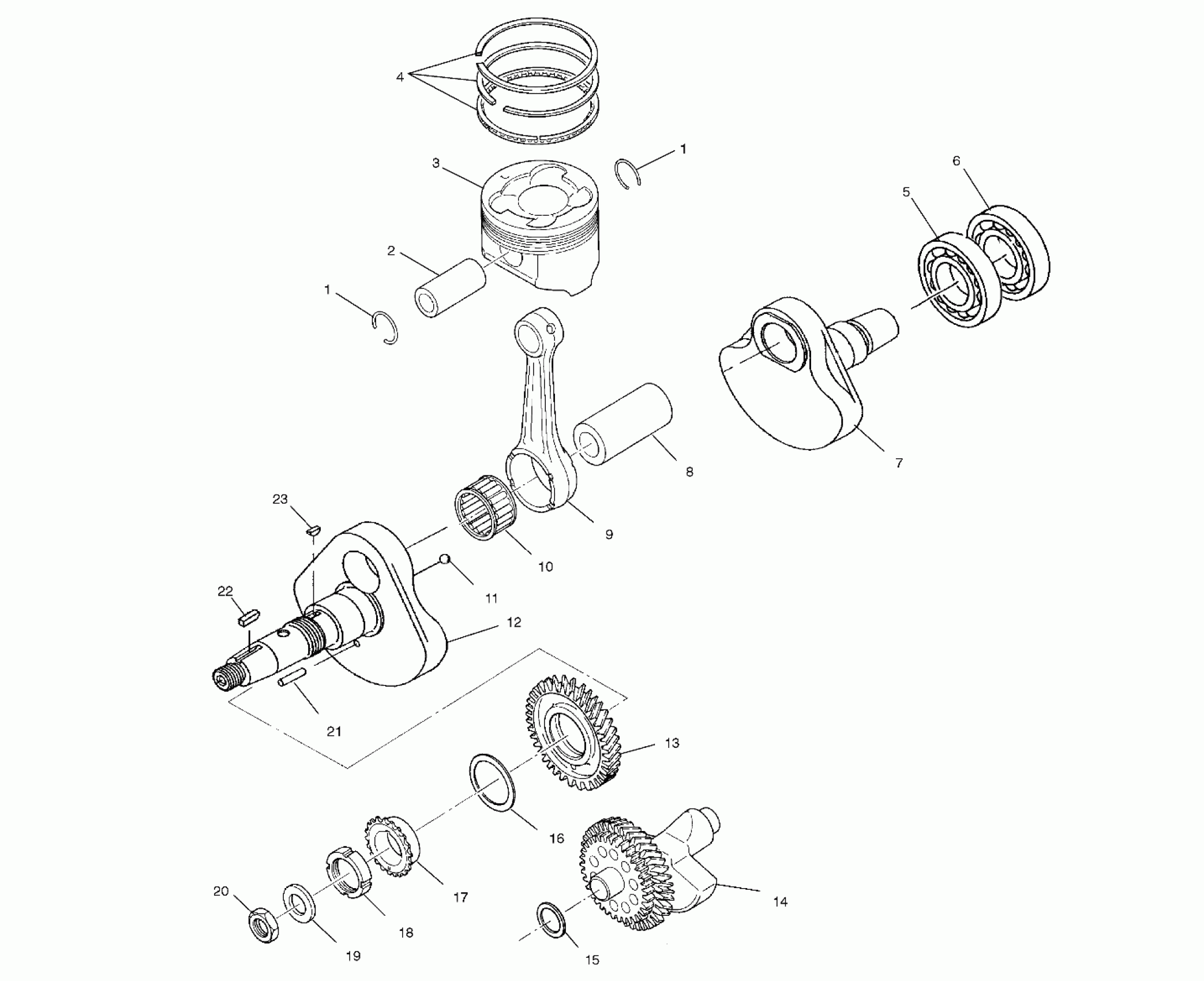

Polaris A04CH42AA SPORTSMAN 400 - A04CH42AA/AE/AG CRANKSHAFT AND PISTON - A04CH42AA/AE/AG(4986068606D03) Diagram

#

Description
Price

1

CLIP

3085534

Unavailable

1

CLIP

3085534

Unavailable

2

Pin, Piston

3084886

Unavailable

3

Piston Set [Std][Incl. 2]

3087230

Unavailable

3

Piston Set [0.25 mm O/S][Incl. 2]

3087231

Unavailable

3

Piston Set [0.50 mm O/S][Incl. 2]

3087232

Unavailable

4

Ring Set, Piston [Std]

3087233

$63.99

4

Ring Set, Piston [0.25 mm O/S]

3087234

$63.99

4

Ring Set, Piston [0.50 mm O/S]

3087235

$63.99

5

BEARING, BALL

3085815

$43.99

6

BEARING, BALL

3080676

$39.99

7

Crankshaft 2

3088719

$401.69

8

Pin, Crank

3085341

Unavailable

9

Rod, Connecting

3086206

Unavailable

10

Bearing, Large End

3085400

$78.56

11

BALL, STEEL

3085024

$5.59

12

Asm., Crankshaft [Incl. 7-13,21]

3087228

$615.08

12

Crankshaft 1

3088718

$308.99

13

Balancer, Gear 1

3085852

Unavailable

14

Shaft, Balancer

3085404

Unavailable

15

Spacer [1.2]

3084897

$6.39

15

Spacer [0.8]

3084895

$6.39

15

Spacer [1.0]

3084896

$6.39

16

Spacer [1.2]

3084894

$19.99

16

Spacer [0.6]

3240088

$10.39

16

Spacer [1.0]

3084893

$19.99

16

Spacer [0.8]

3084892

$12.79

17

SPROCKET 1

3084882

Unavailable

18

NUT, SLIT

3085528

$35.99

19

WASHER

3086767

Unavailable

20

NUT, LOCK

3083905

Unavailable

21

Pin, Dowel

3085346

Unavailable

22

KEY

3081447

Unavailable

23

Key, Woodruff

3080130

Unavailable
