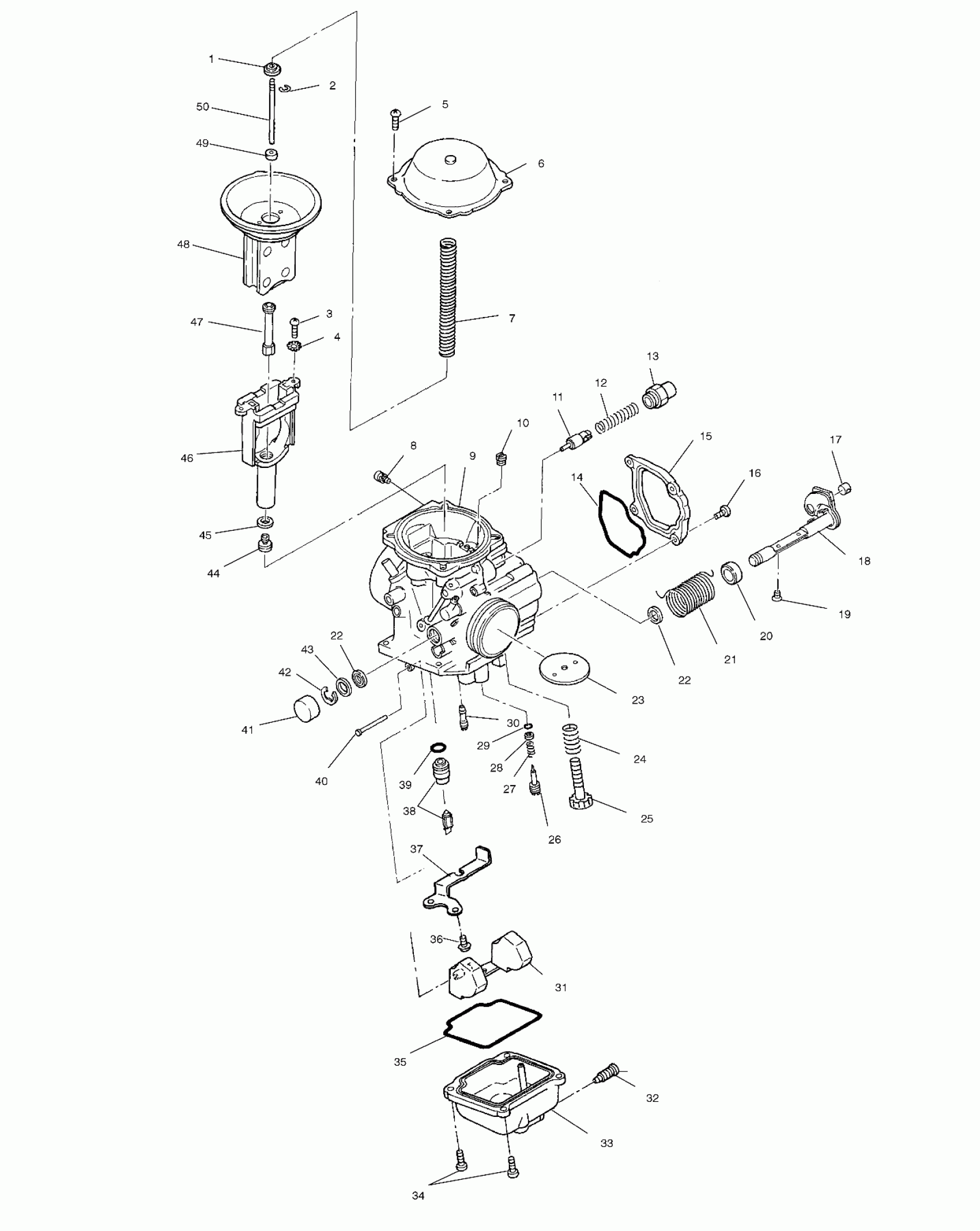

Polaris A04CH42AA SPORTSMAN 400 - A04CH42AA/AE/AG CARBURETOR - A04CH42AA/AE/AG (4986068606D05) Diagram

#

Description
Price

1

RING

3130507

$5.65

2

E-RING

3130508

$6.46

3

SCREW

3130541

$11.11

4

WASHER, SPRING

3130540

$4.76

5

SCREW-MIKUNI C2=0408

3130592

$1.59

6

Cover

3130503

$68.79

7

SPRING

3130505

$28.32

8

Screw and Washer

3085698

$2.38

9

Asm., Carburetor [Incl. 1-13,18-50]

3131454

Unavailable

10

Air Jet [#160]

3130625

$14.56

11

Plunger

3130593

$40.46

12

SPRING

3130538

$5.65

13

Guide Holder

3130199

$28.32

14

O-Ring

3130512

Unavailable

15

COVER

3130511

$54.99

16

SCREW

3130535

$7.14

17

Cable Guide

3130543

$32.37

18

Throttle Shaft

3130513

$79.37

19

SCREW

3130501

$3.97

20

Ring

3130514

$7.27

21

SPRING

3130589

$28.32

22

SEAL

3130515

$12.13

22

SEAL

3130515

$12.13

23

Throttle Valve [100]

3130502

$62.92

24

SPRING

3130836

$8.08

25

SCREW, ADJUST

3131423

$23.81

26

Adjuster

3130524

$23.81

27

Spring

3130525

$5.65

28

Washer

3130523

$2.38

29

O-Ring

3130522

$5.65

30

Jet, Pilot [#40]

3130624

$28.32

31

Float

3130529

$99.74

32

SCREW

3130521

$10.32

33

Float Body

3130590

$119.98

34

SCREW

3130520

$1.59

35

O-RING

3130532

$32.37

36

SCREW

3130591

$3.97

37

PLATE

3130594

$32.37

38

Valve, Needle [1.5]

3131360

$61.74

39

O-RING

3130533

$5.65

40

PIN, FLOAT

3130361

$9.70

41

CAP

3130519

$10.51

42

E-RING

3130518

$1.60

43

PACKING

----

Unavailable

44

Main Jet [#167.5]

3131144

$8.89

45

WASHER

3130014

$1.59

46

Jet Block

3130504

$64.75

47

Jet, Needle [Q-0]

3131311

Unavailable

48

Diaphragm

3130732

$156.74

49

RING

3130752

$5.65

50

Jet Needle [5F14]

3131312

Unavailable
