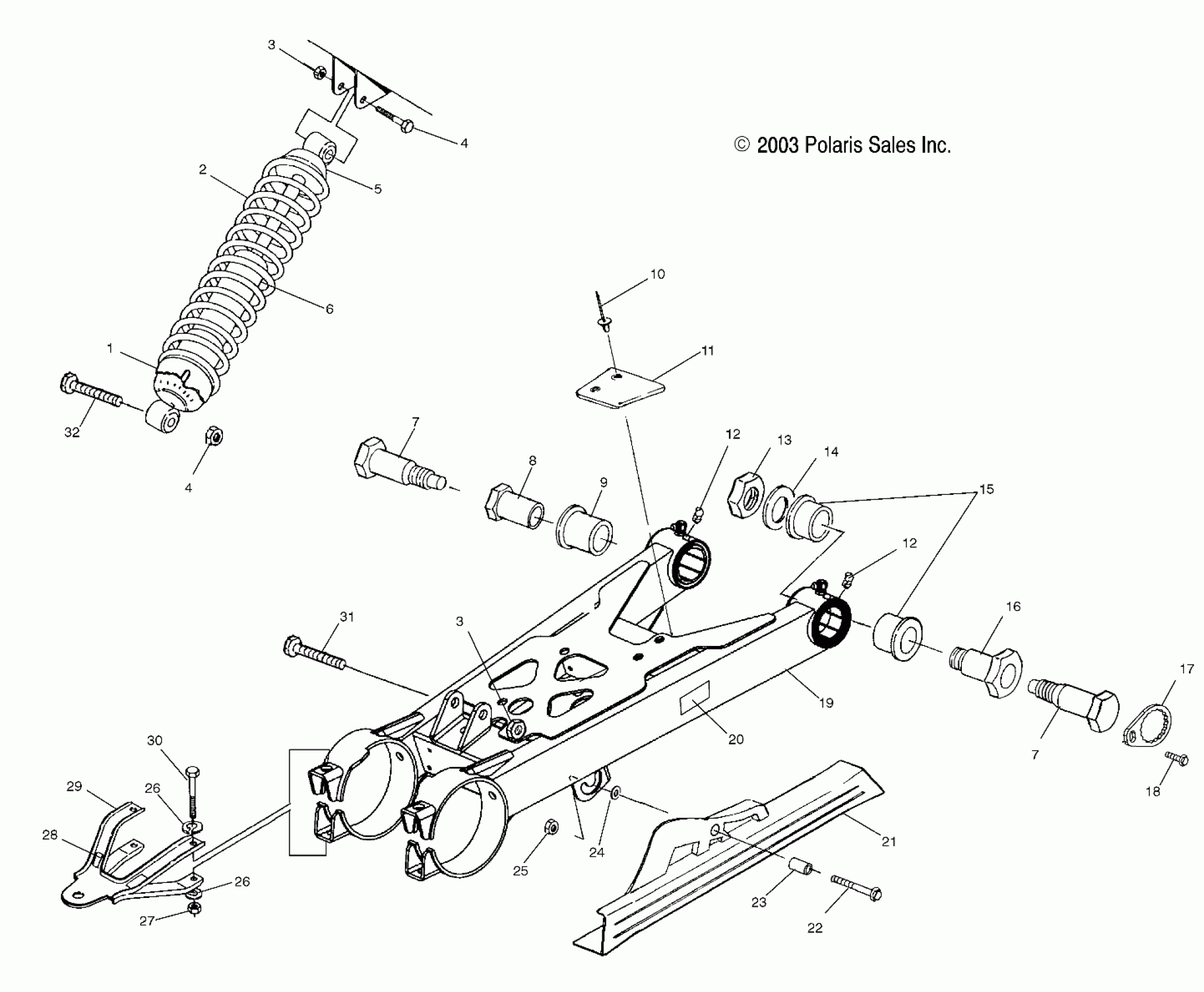

Polaris A04CA32AA TRAIL BOSS 330 - A04CA32AA/AB/FA SWING ARM/SHOCK MOUNTING - A04CA32AA/AB/FA (4986248624B11) Diagram

#

Description
Price

1

Cam, Adjusting

5630551

$31.99

2

Spring, Compression

7041986-067

$55.99

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

4

Screw

7515415

$1.49

4

Screw

7515415

$1.49

5

Retainer, Spring

5631045

Unavailable

6

Shock, Rear

7041960

Unavailable

7

Bolt, Swing Arm Pivot

5134321

$39.99

7

Bolt, Swing Arm Pivot

5134321

$39.99

8

Bushing, Swing Arm Pivot, LH

5133166

$31.99

9

Bushing, Swing Arm, LH

5434545

$8.79

10

Rivet

7661046

$3.99

11

Guide, Pad, Chain

5432727

$31.99

12

Fitting

7080510

$5.59

12

Fitting

7080510

$5.59

13

Nut

7547082

$31.99

14

Washer, Flat

7556035

Unavailable

15

Bushing, Swing Arm, RH

5434546

$8.79

16

Bushing, Swing Arm Pivot, RH

5133167

$35.99

17

Bracket, Bolt Lock

5247488

Unavailable

18

Bolt

7515399

$1.49

19

Asm., Swing Arm [Incl. 9,12,15]

1580111

Unavailable

20

Decal, "Chain Free Play"

7078572

Unavailable

21

Guard, Chain

5432854

$35.99

22

SCREW

7515304

$5.59

23

Bushing

5332828

$9.59

24

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

25

Nut, Flange

7542321

$1.49

26

Washer

7555883

$3.99

26

Washer

7555883

$3.99

27

Nut, Nylok

7547066

$1.59

28

Decal, Hitch

7170915

Unavailable

29

Kit, Hitch [Incl. 27-30]

2200472

Unavailable

30

Bolt

7512576

$7.99

31

Screw

7515438

$4.79

32

SCREW

7517761

$5.59
