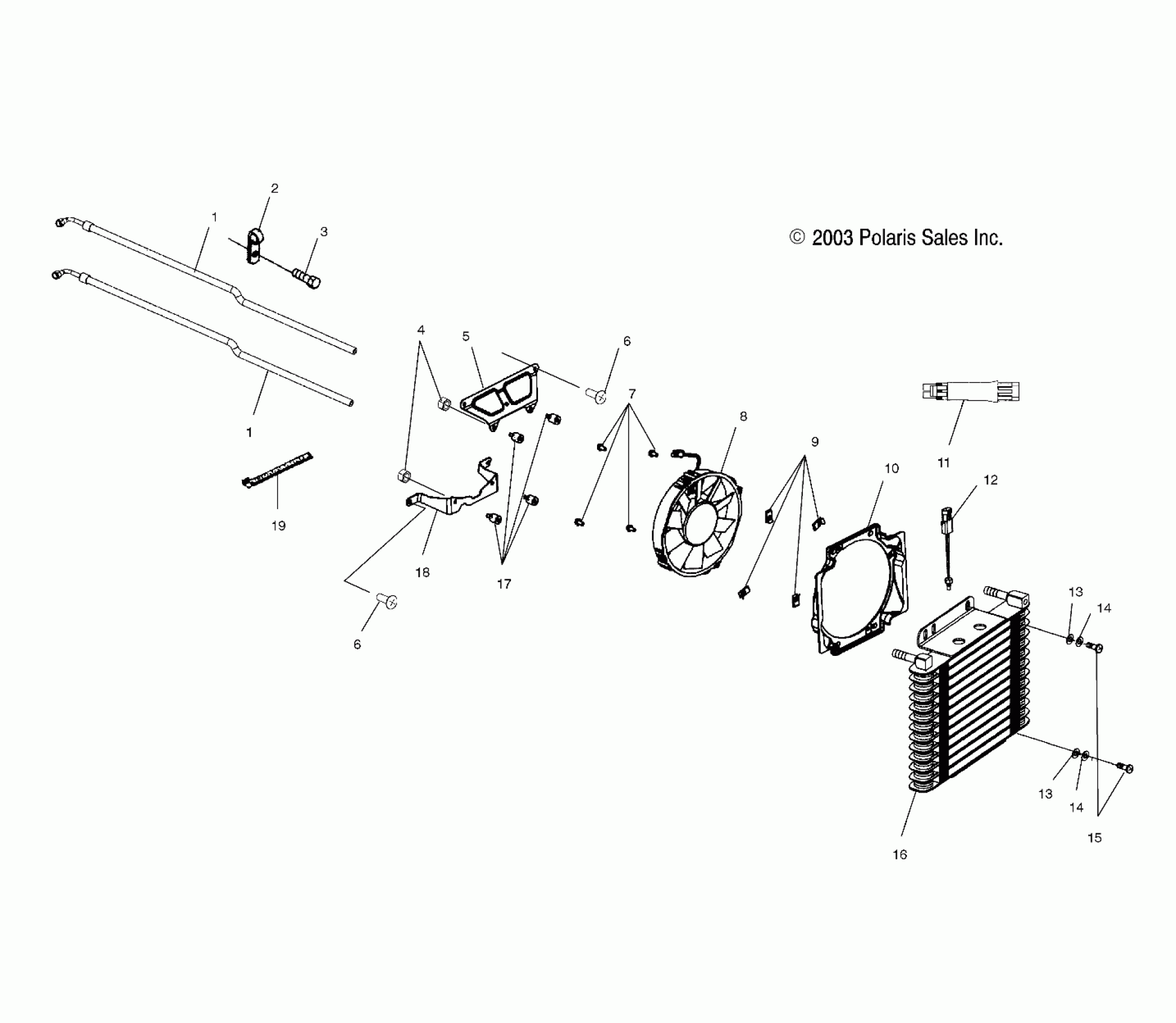

Polaris A04CA32AA TRAIL BOSS 330 - A04CA32AA/AB/FA OIL COOLING - A04CA32AA/AB/FA (4986248624A09) Diagram

#

Description
Price

1

Hose, Inlet

5412355

$123.54

1

Hose, Inlet

5412355

$123.54

2

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

3

Screw

7512084

$1.49

4

Nut, Nylok

7542122

$1.49

5

Bracket, Oil Cooler, Top

5245416-067

$56.99

6

BOLT

7515133

$3.99

6

BOLT

7515133

$3.99

7

Screw

7517659

$3.99

8

Motor, Fan

2410157

Unavailable

9

U-Clip

7670111

Unavailable

10

Shroud

5433353

$70.39

11

Jumper, Thermistor Offset

2410380

Unavailable

12

Thermister

4010274

$124.99

13

WASHER

7558301

$1.49

13

WASHER

7558301

$1.49

14

WASHER, SPRING LOCK

7552801

$1.59

14

WASHER, SPRING LOCK

7552801

$1.59

15

BOLT

7512240

$3.99

16

Cooler, Oil

1240155

Unavailable

17

Mount, Rubber

5411548

$27.99

18

Bracket, Lower, Oil Cooler

1013519

Unavailable

19

Cable Tie

7080999

$9.59
