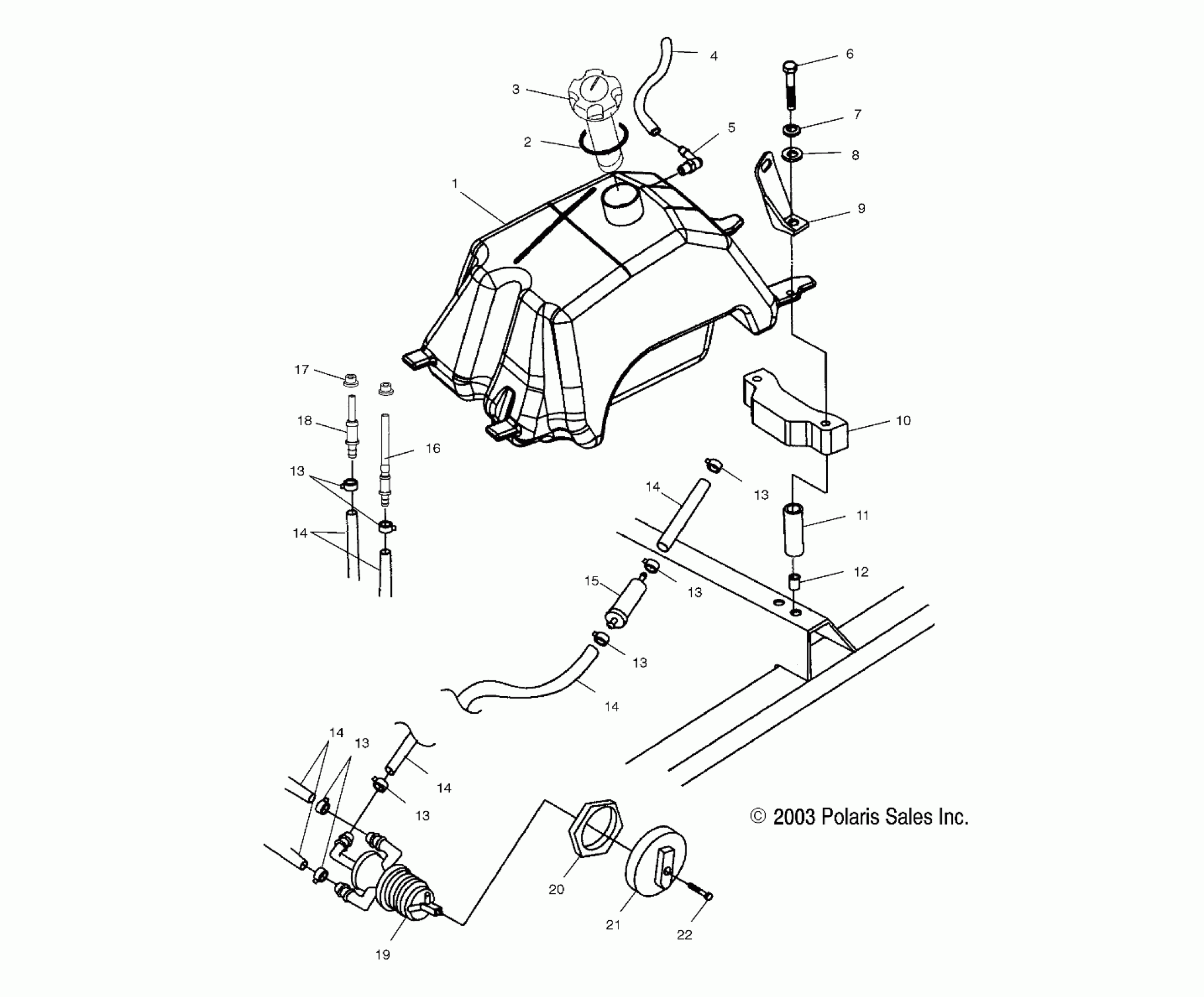

Polaris A04CA32AA TRAIL BOSS 330 - A04CA32AA/AB/FA FUEL TANK - A04CA32AA/AB/FA (4986248624A12) Diagram

#

Description
Price

1

Tank, Fuel

2520362

Unavailable

2

GASKET

5812123

$5.65

3

Kit, Fuel Gauge

2873626

Unavailable

4

Hose, Vent

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Screw

7517451

$5.59

7

WASHER, SPRING LOCK

7552801

$1.59

8

Washer, Flat

7555859

$1.49

9

Bracket, Cover Mount, Rear, LH

5222154

Unavailable

9

Bracket, Cover Mount, Rear, RH

5222155

Unavailable

10

Seal, Foam

5811951

$32.37

11

Tube

5332457

Unavailable

12

Nutsert

7547069

$3.99

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

14

Line, Fuel

8450040-600

Unavailable

14

Line, Fuel

8450040-600

Unavailable

14

Line, Fuel

8450040-600

Unavailable

14

Line, Fuel

8450040-600

Unavailable

14

Line, Fuel

8450040-600

Unavailable

15

Filter, Fuel

2530009

$5.65

16

Fitting, Main Outlet

7052350

Unavailable

17

Grommet, Flanged

7052362

$9.99

18

Fitting, Fuel Outlet, Reserve

7052346

$27.99

19

Valve, 3-Way

7052161

$39.99

20

Nut, Fuel Valve

5432733

Unavailable

21

Knob, Fuel Valve

5432559

$10.39

22

Screw

7517505

$1.59
