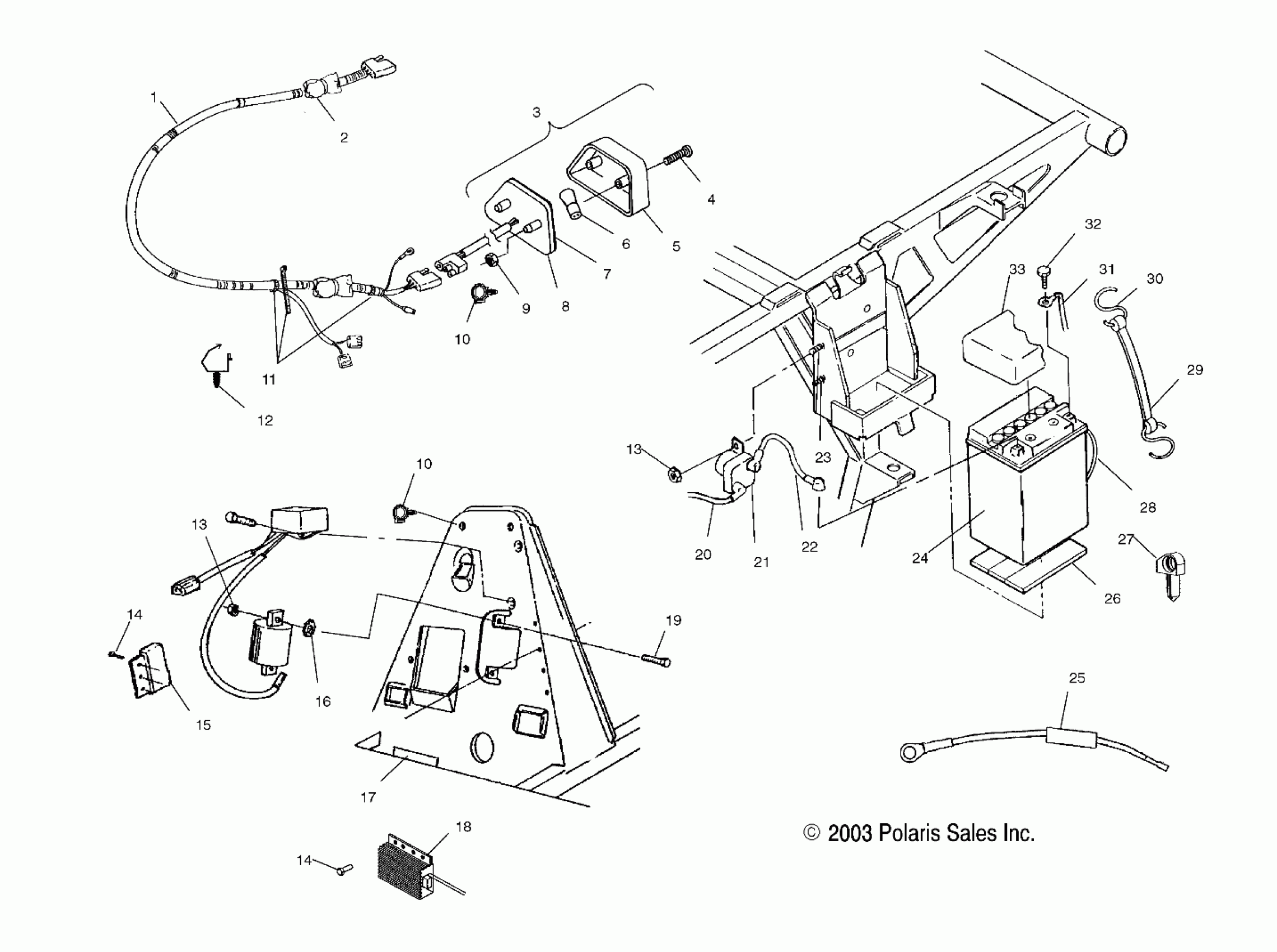

Polaris A04CA32AA TRAIL BOSS 330 - A04CA32AA/AB/FA ELECTRICAL/TAILLIGHT - A04CA32AA/AB/FA (4986248624C01) Diagram

#

Description
Price

1

Harness, Main

2461221

Unavailable

2

Kit, Circuit Breaker, Fan

2201795

$68.79

3

Taillight w/Brake Light (AA)(AB)

2410320

$63.99

4

Screw, Taillight (AA)(AB)

4032029

$4.79

5

Lens, Taillight (AA)(AB)

4032046

$32.37

6

Bulb, Taillight (AA)(AB)

4030043

$6.46

7

Gasket, Taillight (AA)(AB)

4032045

$4.03

8

BACKING, TAILLIGHT/BRAKE LIGHT (AA)(AB)

-------

Unavailable

9

SPEED NUT-WASHER, HEAD-1/4 (AA)(AB)

7670054

$1.49

10

Clip, Rosebud (AA)(AB)

4020149

$6.39

10

Clip, Rosebud (AA)(AB)

4020149

$6.39

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CLIP, ROUTING

7670109

$2.39

13

Nut, Nylok

7518287

$3.19

13

Nut, Nylok

7518287

$3.19

14

SCREW

7512024

$4.79

14

SCREW

7512024

$4.79

15

Limiter, RPM

4010995

Unavailable

16

Washer

7571602

$4.79

17

Trim, Edge

8360012-04

Unavailable

18

Module, Electronic, Control

4010944

$383.99

19

BOLT

7512007

$3.99

20

Cable, Solenoid/Starter

4010093

$47.99

21

SWITCH, MAGNETIC [SEE MAGNETO PG. C14, REF. 10]

-------

Unavailable

22

Cable, Battery/Solenoid

4010094

Unavailable

23

Screw

7512027

$1.49

24

Battery (FA)

4140006

$99.99

24

Battery (AA)(AB)

4010774

$107.99

25

Kit, Fusible Link

2202147

$79.99

26

PAD-BATTERY

5810290

$7.27

27

Clip, Silencer

7670102

$2.39

28

Tube, Battery Vent

5432077

Unavailable

29

Strap, Battery Holddown (FA)

5412499

$4.62

29

Strap, Battery Holddown (AA)(AB)

5410424

Unavailable

30

Hook, Battery Strap

7010032

$1.59

31

Cable, Battery/Engine

4010095

Unavailable

32

Kit, Battery Bolt (AA)(AB)

2202213

$3.79

32

Kit, Battery Bolt, Short (FA)

2200361

$3.99

33

Cover, Battery

5431769

$14.39
