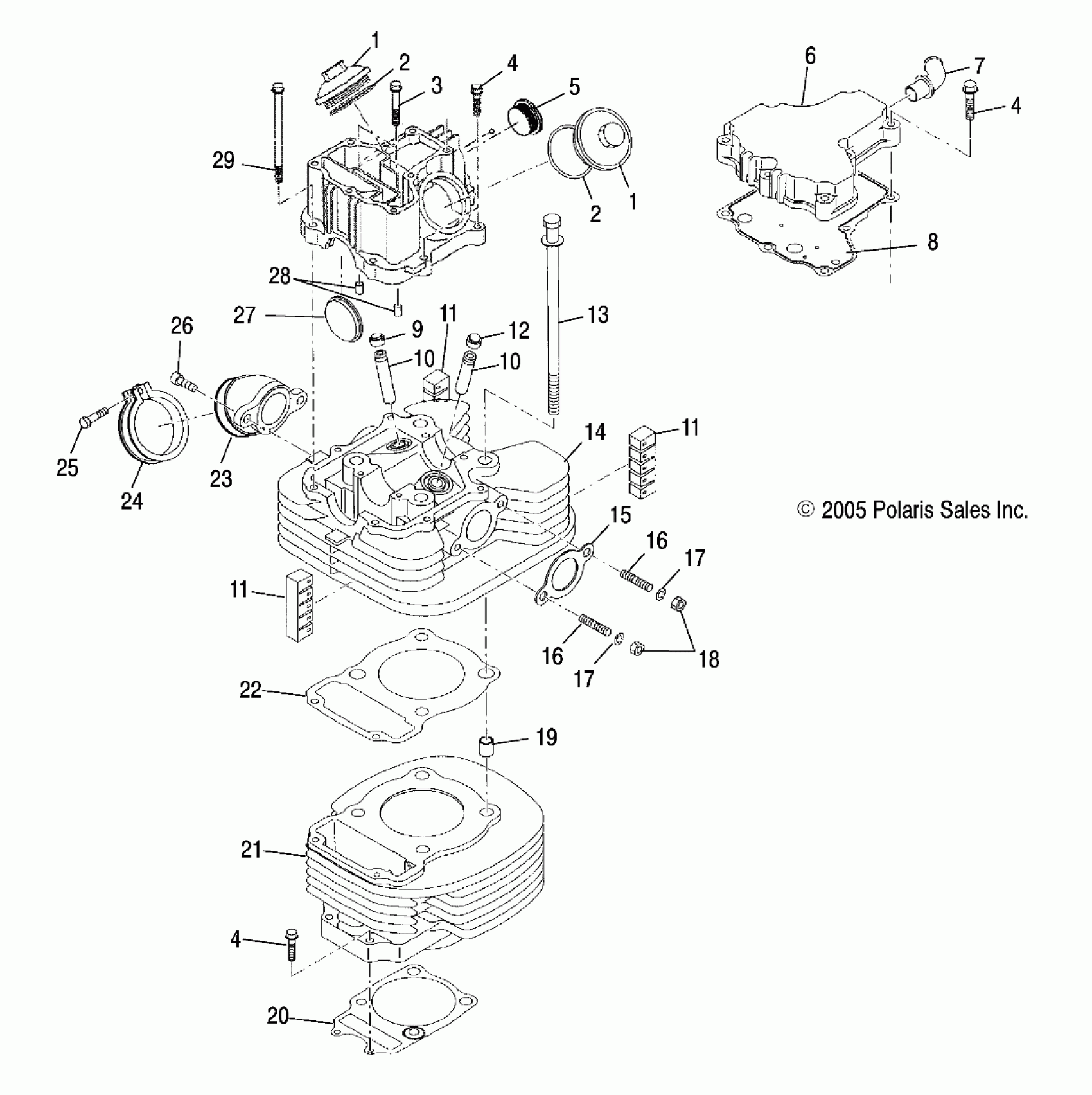

Polaris A04CA32AA TRAIL BOSS 330 - A04CA32AA/AB/FA CYLINDER - A04CA32AA/AB/FA (4999201699920169D01) Diagram

#

Description
Price

1

Cover, Valve

3087259

Unavailable

1

Cover, Valve

3087259

Unavailable

2

O-Ring

3086414

$29.99

2

O-Ring

3086414

$29.99

3

BOLT, FLANGE

3087159

$3.99

4

Bolt, Flange

3087158

Unavailable

4

Bolt, Flange

3087158

Unavailable

4

Bolt, Flange

3087158

Unavailable

5

Asm., Plug

3089272

Unavailable

6

Asm., Cover, Breather [Incl. 7]

3089271

Unavailable

7

Asm., Pipe

3085850

$51.99

8

Gasket, Breather Cover

3087034

$27.99

9

Seal, Intake Valve

3084858

$13.59

10

GUIDE, VALVE

3084994

$39.99

10

GUIDE, VALVE

3084994

$39.99

11

Fin, Damper A

3084798

$31.99

11

Fin, Damper A

3084798

$31.99

11

Fin, Damper A

3084798

$31.99

12

SEAL, EXHAUST VALVE

3084859

$23.99

13

Asm., Bolt and Washer

3086418

$10.39

14

Asm., Cylinder Head [Incl. 9,10,12,14,16,28]

3089270

$704.99

15

Gasket, Exhaust

3086421

Unavailable

16

Stud

3085326

Unavailable

16

Stud

3085326

Unavailable

17

Washer, Spring Lock

3080530

$3.19

17

Washer, Spring Lock

3080530

$3.19

18

Nut

3086787

Unavailable

19

KNOCK, PIPE

3087266

Unavailable

20

Gasket, Cylinder

3086407

$31.99

21

Unit, Cylinder

3087236

$367.99

22

Gasket, Head

3087238

$39.99

23

Asm., Adapter

3087050

$71.99

24

Asm., Adapter Band [Incl. 25]

3083166

$19.84

25

ASM., SCREW AND WASHER

3081497

$2.39

26

Bolt, Socket, Head

3081330

$3.99

27

Gasket, Cam

3086416

Unavailable

28

Knock, Pipe

3087275

Unavailable

29

Bolt, Flange

3087160

Unavailable
