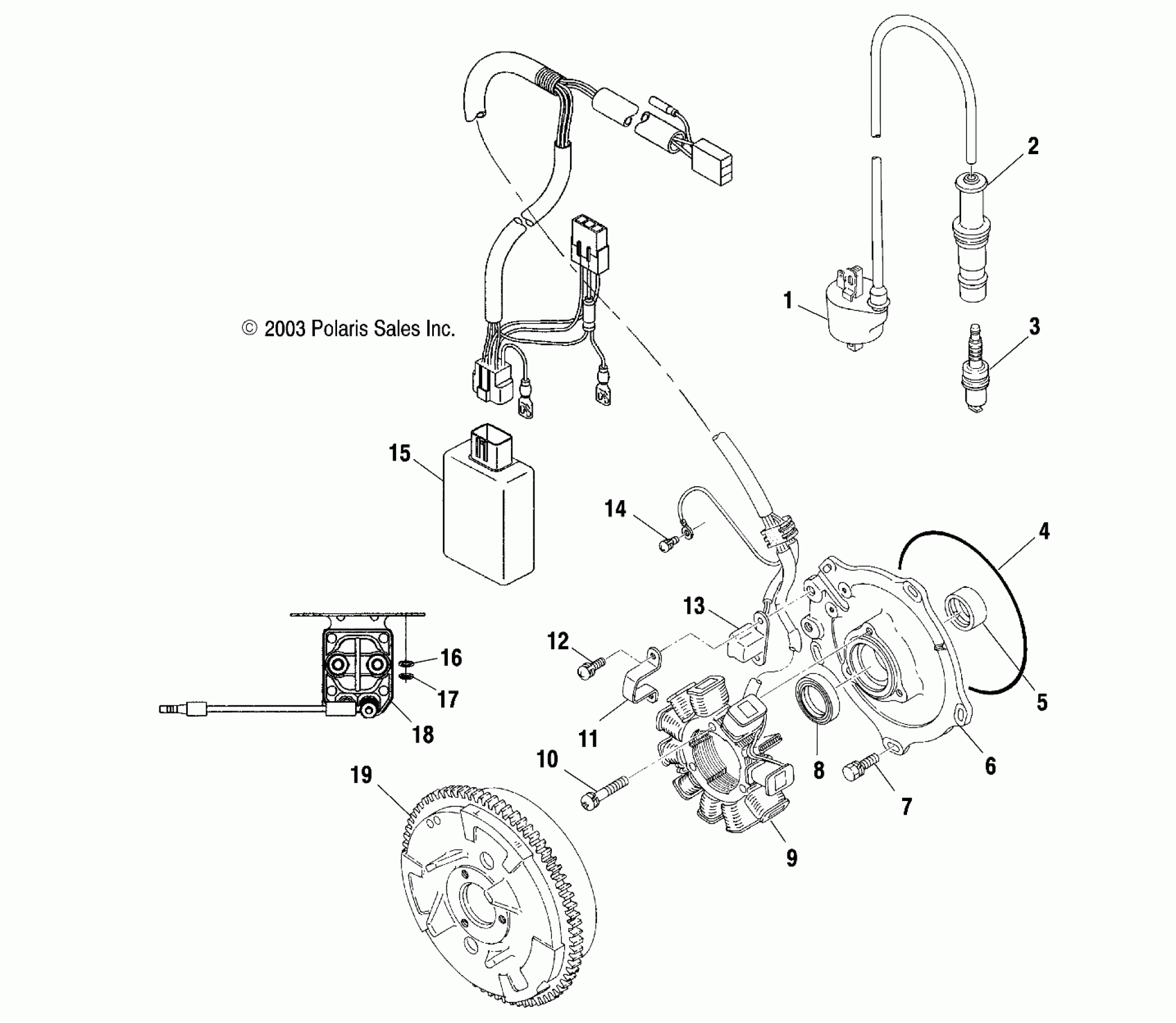

Polaris A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA MAGNETO - A04BG50AA/FA (4986228622D08) Diagram

#

Description
Price

1

Asm., Ignition Coil [Incl. 1,2]

3089260

Unavailable

1

Coil, Ignition

3089261

Unavailable

2

CAP, SPARK PLUG

3084980

$59.99

3

Plug, Spark

3084997

Unavailable

4

O-RING

3084978

$35.99

5

Metal, Bearing

3084972

Unavailable

6

PLATE

3089248

Unavailable

6

Asm., Plate [Incl. 5,8,9,11-15]

3089253

$551.59

7

Bolt and Washer

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

Stator [Incl. 13]

3089249

Unavailable

10

Screw and Washer

3089251

$5.59

11

BAND, PULSE

3089250

Unavailable

12

Screw and Washer

3084976

Unavailable

13

COIL, PULSER

3089254

$103.99

14

Screw and Washer

3081256

$3.19

15

CDI System

3089238

$375.99

16

WASHER, SPRING LOCK

7552801

$1.59

17

NUT

7542105

$3.99

18

Switch, Magnetic

4010930

$60.70

19

Flywheel/Ring Gear

3089247

Unavailable
