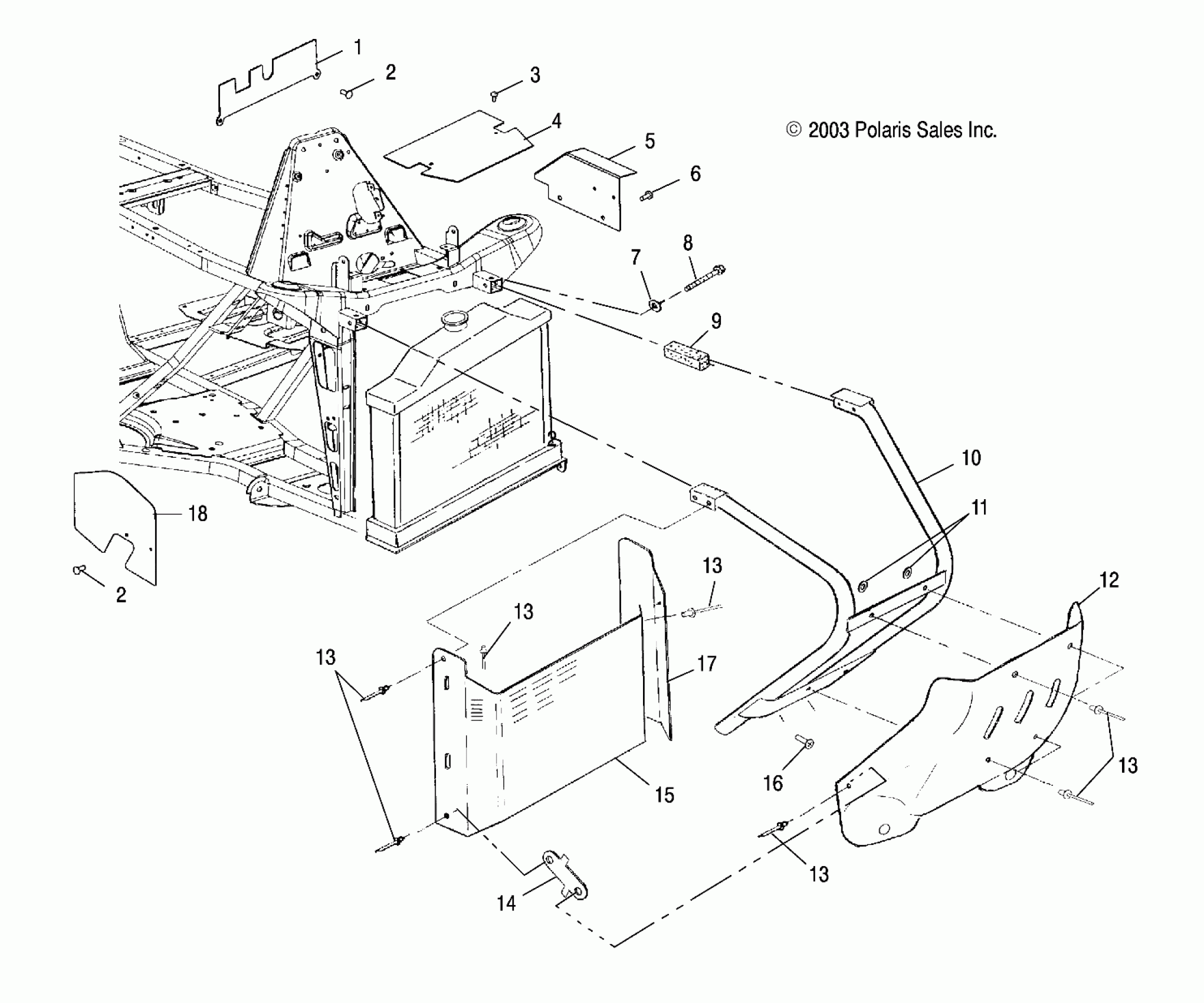

Polaris A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA FRONT BUMPER and SHIELDS - A04BG50AA/FA (4986228622A05) Diagram

#

Description
Price

1

Shield, Splash, Rear

5434162

$12.39

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

3

Screw

7522026

$4.79

4

Shield, Splash, Front

5435455

$13.19

5

Shield, Splash, LH (If built after 8/01/03)

5247602-067

$13.19

5

Shield, Splash, LH (If built before 8/01/03)

5245415-067

$13.10

6

SCREW

7517386

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

Bolt

7512329

$3.99

9

Plug, Frame

5811675

Unavailable

10

Bumper, Front, Black

1012773-067

$259.99

11

WASHER

7555827

$3.99

12

Plate, Skid, Bumper

5432378-070

$92.39

13

Rivet

7661121

Unavailable

13

Rivet

7661121

Unavailable

13

Rivet

7661121

Unavailable

13

Rivet

7661121

Unavailable

13

Rivet

7661121

Unavailable

14

Bracket, Radiator Shield

5242694-067

Unavailable

15

Shield, Radiator, Side, RH

5245343-067

Unavailable

16

SCREW

7515399

$1.49

17

Shield, Radiator, Side, LH

5245342-067

Unavailable

18

Guard, Splash, RH

5434085

$28.95
