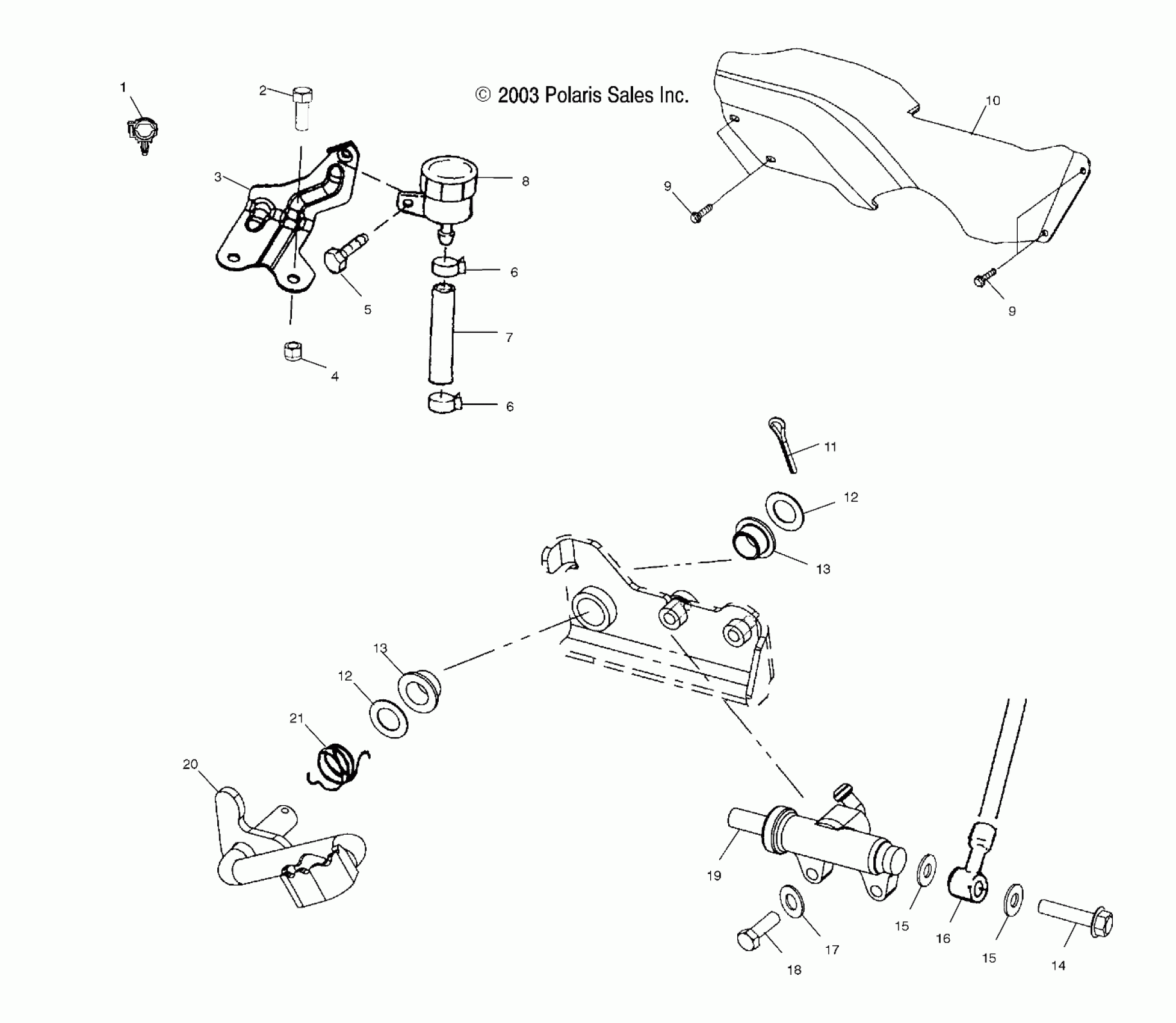

Polaris A04BA25CA TRAIL BLAZER - A04BA25CA/CB REAR BRAKE MASTER CYLINDER - A04BA25CA/CB (4986208620B06) Diagram

#

Description
Price

1

Clip

7670102

$2.38

2

Bolt

7512113

$3.97

3

Bracket, Reservoir Mount

5244091-067

$5.71

4

Nut, Nylok

7542122

$1.19

5

SCREW

7517386

$1.19

6

HOSE CLAMP, RED

7080003

$1.19

6

HOSE CLAMP, RED

7080003

$1.19

7

Hose, Reservoir

1910404

Unavailable

8

Reservoir

1930854

Unavailable

9

Screw

7517916

$6.35

9

Screw

7517916

$6.35

10

Guard, Prop Shaft, Side

5433457

$94.44

11

PIN, COTTER

7661401

$0.79

12

WASHER

7555919

$4.99

12

WASHER

7555919

$4.99

13

BUSHING, PEDAL PIVOT

5433189

$3.97

13

BUSHING, PEDAL PIVOT

5433189

$3.97

14

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

15

Seal

5410988

$4.84

15

Seal

5410988

$4.84

16

LINE, FOOT BRAKE, REAR [SEE REAR CALIPER MOUNTING PG. B5, REF. 6]

----

Unavailable

17

WASHER, SPRING LOCK

7552801

$1.59

18

Screw

7515179

$2.38

19

Asm., Foot Brake Master Cylinder

1910311

$174.03

20

Rod, Brake

1910377-067

Unavailable

21

SPRING-TORSION,BRAKE

7041750

$8.89
