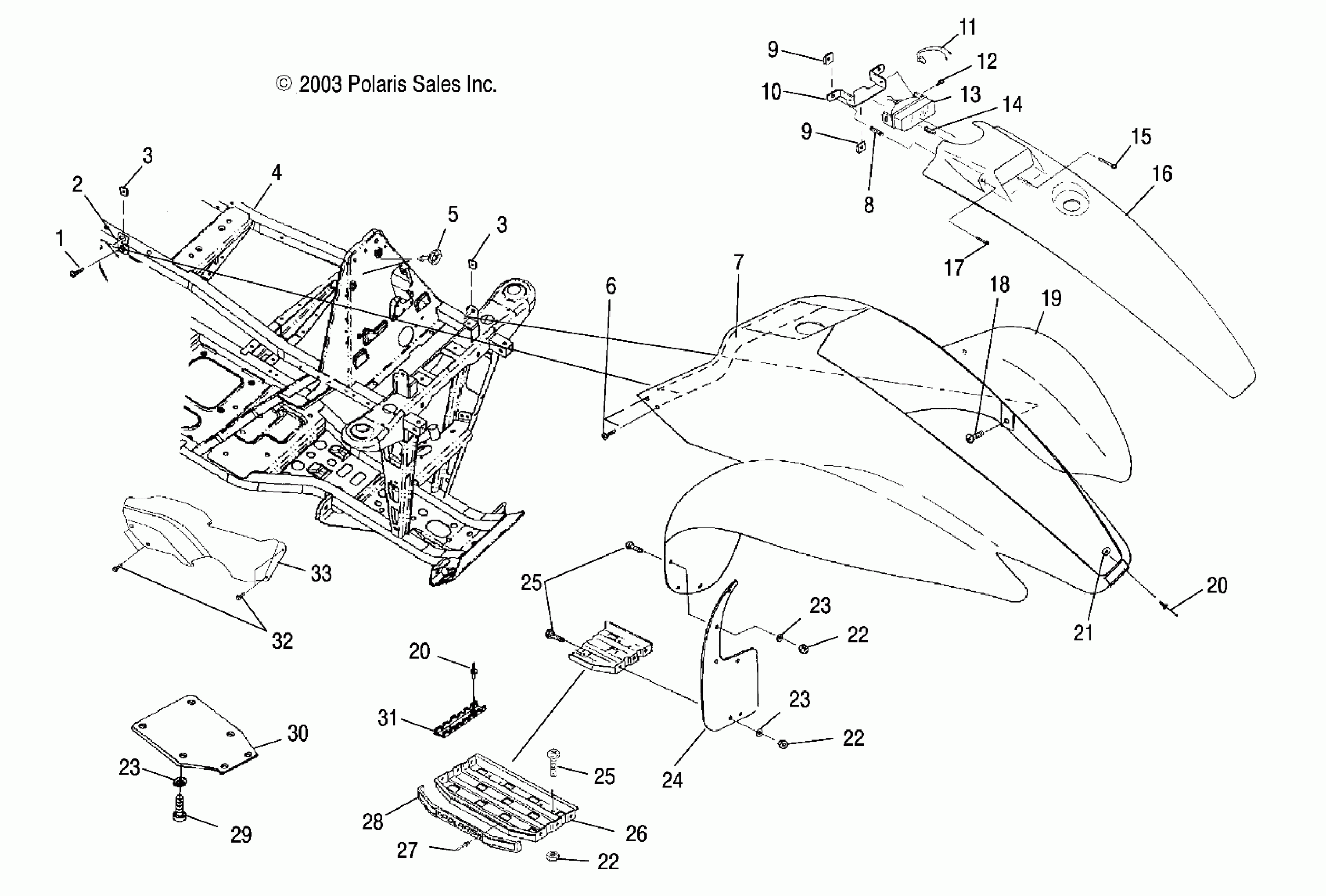

Polaris A04BA25CA TRAIL BLAZER - A04BA25CA/CB FRONT CAB - A04BA25CA/CB (4986208620A03) Diagram

#

Description
Price

1

SCREW

7517386

$1.49

2

Bracket, Cab Mount, LH

5244482-067

$3.81

2

Bracket, Cab Mount, RH

5244483-067

$45.24

3

Nut, U-Type, Speed

7670057

$1.49

3

Nut, U-Type, Speed

7670057

$1.49

4

Frame, Main

1014448-067

$923.79

5

Clip, Rosebud

4020149

$6.39

6

SCREW

7517685

$1.59

7

Foam, Seal

5811527

Unavailable

8

Spring, Adjustment

4032093

$1.49

9

Clip

7670163

Unavailable

9

Clip

7670163

Unavailable

10

Bracket, Headlight

5247522-067

Unavailable

11

Bulb, Halogen, 55W

4030056

$24.99

12

Screw

7512084

$1.49

13

Headlight, Single Beam [Incl. 10]

4010206

Unavailable

14

Spring

4032094

Unavailable

15

Screw

7518302

$1.49

16

Cover, Front, Black

5432179-177

Unavailable

17

Screw

7518303

Unavailable

18

Screw

7517916

$6.39

19

Asm., Cab, Front, Red [w/Warning Decals](CB)

2632424-288

Unavailable

19

Asm., Cab, Front, Sonic Blue [w/Warning Decals](CA)

2632424-341

Unavailable

20

RIVET

7621472

$1.49

20

RIVET

7621472

$1.49

21

Washer, Flat

7558201

$5.79

22

Nut, Nylok

7542122

$1.49

22

Nut, Nylok

7542122

$1.49

22

Nut, Nylok

7542122

$1.49

23

Washer, Flat

7555859

$1.49

23

Washer, Flat

7555859

$1.49

23

Washer, Flat

7555859

$1.49

24

Mudflap, Front, RH

5850150

Unavailable

24

Mudflap, Front, LH

5811831

Unavailable

25

Bolt

7512282

$1.49

25

Bolt

7512282

$1.49

26

Pad, Foot

1013249-067

$63.79

27

Rivet

7661825

$1.49

28

Trim, Footrest

5431484

Unavailable

29

Screw

7515179

$2.39

30

Guard, Rock

5432763

$87.99

31

Bracket, Cleat

5242525-067

$16.47

32

Screw

7517916

$6.39

33

Guard, Prop Shaft, Side

5433457

$95.19
