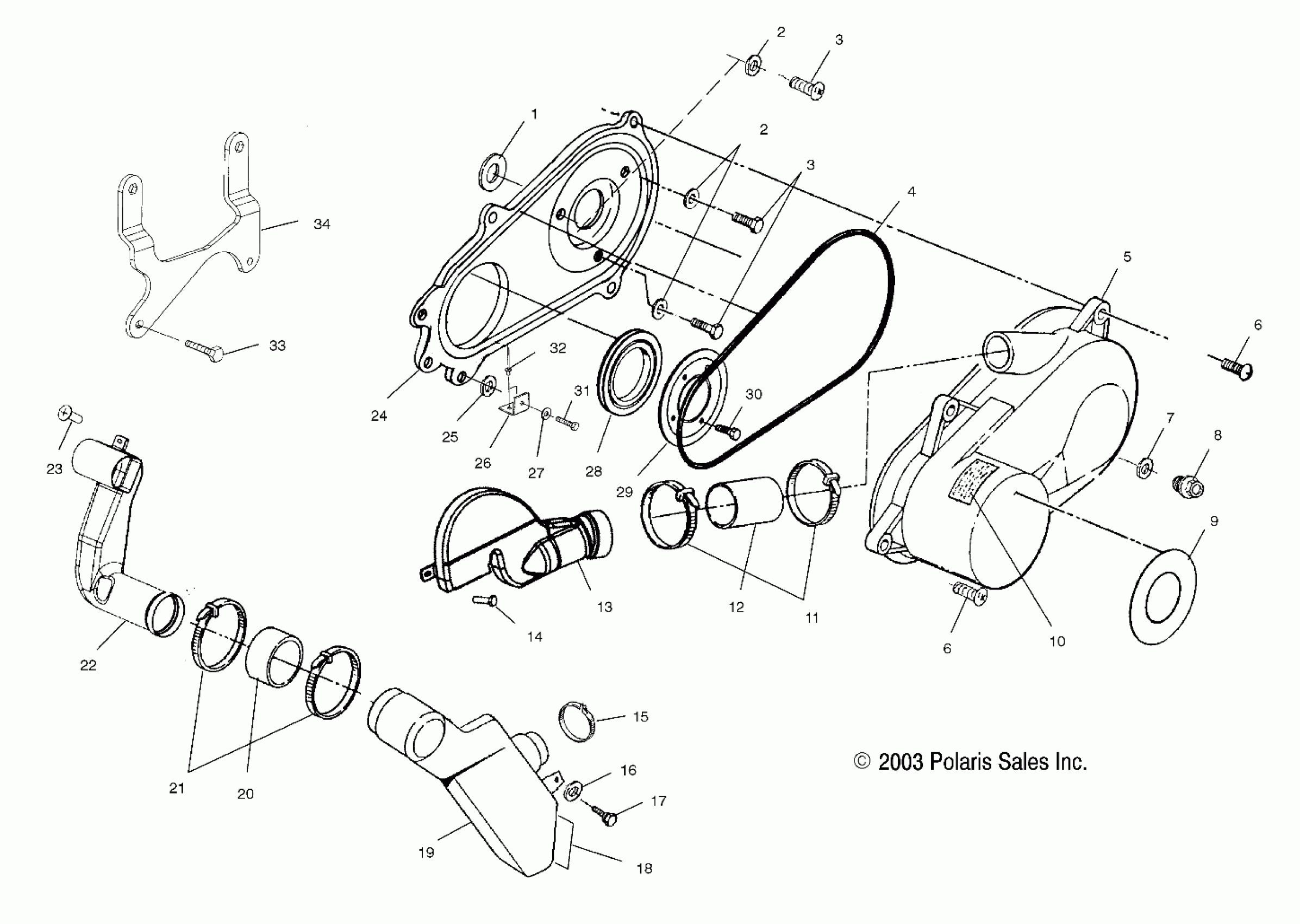

Polaris A04BA25CA TRAIL BLAZER - A04BA25CA/CB CLUTCH COVER - A04BA25CA/CB (4986208620C01) Diagram

#

Description
Price

1

Seal, Cover

5411180

$24.27

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

3

Bolt and Washer

7510000

Unavailable

3

Bolt and Washer

7510000

Unavailable

4

Seal, Clutch Cover

5521301

$32.37

5

Asm., Clutch Cover, Outer

2633262

$186.17

6

SCREW

7512094

$1.59

6

SCREW

7512094

$1.59

7

O RING-.364X.504X.07

5410542

$4.84

8

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

9

Decal, Automatic Transmission

7074782

Unavailable

10

Decal, Warning, Clutch Cover

7078689

Unavailable

11

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

12

Boot, Duct

5411489

Unavailable

13

Duct, Clutch, Out

5434160

Unavailable

14

Screw

7517916

$6.35

15

Clamp

7080511

$4.76

16

Washer, Flat

7555783

$3.97

17

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

18

Tape, Foil

5811373

$2.46

19

Duct, Inlet, Clutch

5433258

$49.21

20

Boot, Air Inlet, Upper

5411822

Unavailable

21

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

22

Duct, Clutch Inlet

5433450

Unavailable

23

Screw

7512084

$1.19

24

Kit, Cover, Clutch, Inner [Incl. 4,6,28,31]

2202418

$107.54

25

Washer, Nylon

7555932

$2.38

26

Bracket, Clutch Cover, Front

5242693-067

Unavailable

27

Washer

7555935

$2.38

28

Seal, Cover, Case

5410749

Unavailable

29

Bracket, Retainer, Seal

5222877-067

Unavailable

30

SCREW AND WASHER [SEE CRANKCASE AND CYLINDER PG. C6, REF. 23]

----

Unavailable

31

Screw

7512098

$1.59

32

RIVET-3/16-.090-.290

7661637

$1.19

33

SCREW

7517386

$1.19

34

Bracket, Clutch Cover

5247524-067

Unavailable
