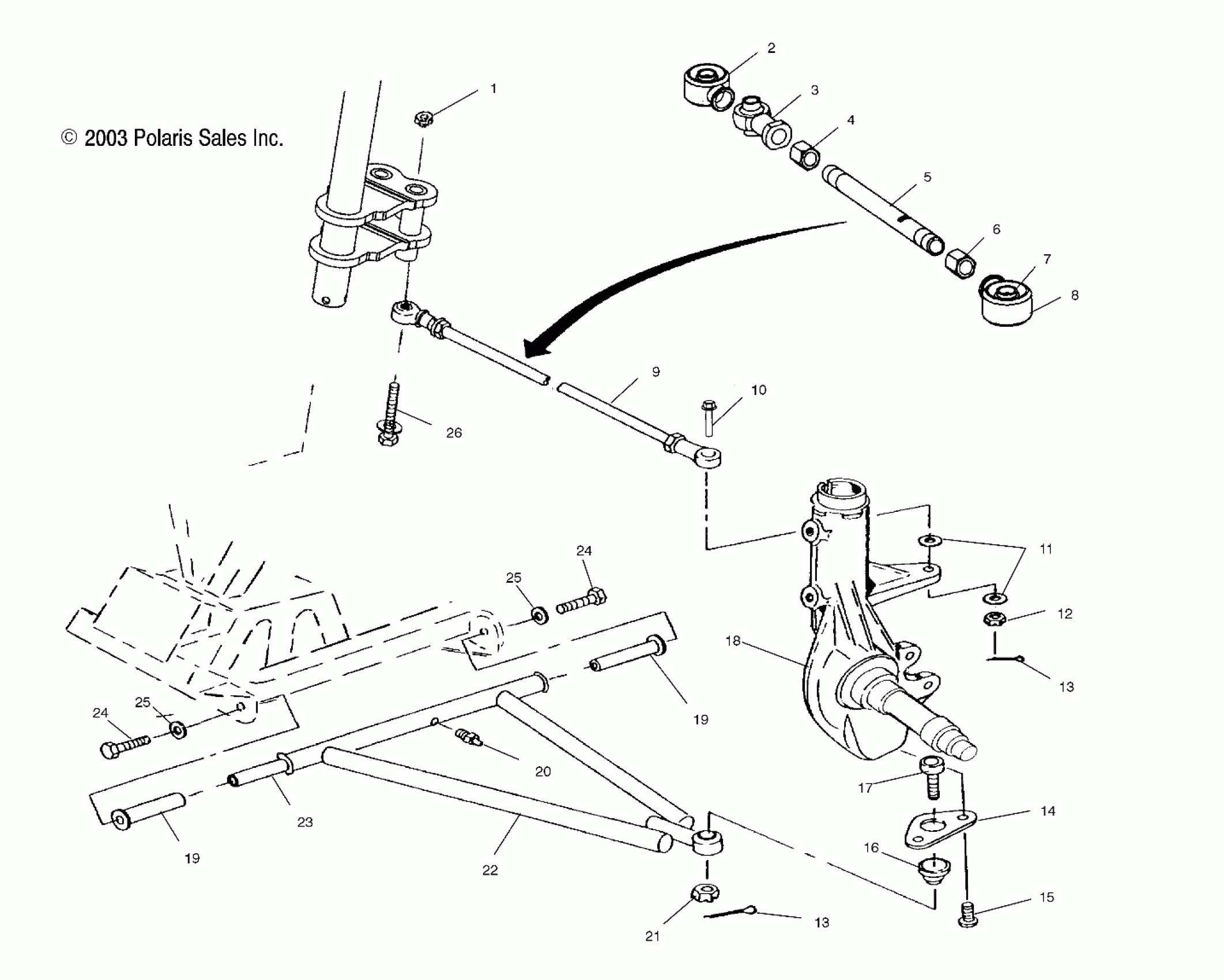

Polaris A04BA25CA TRAIL BLAZER - A04BA25CA/CB A-ARM/STRUT MOUNTING - A04BA25CA/CB (4986208620B01) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

Boot, Seal, Rod End

5411291

Unavailable

3

Rod End, RH

7061034

$54.04

4

Nut

7542711

$2.39

5

Tie Rod

5020927

$39.99

6

Nut, LH

7547028

$2.39

7

Boot, Seal

5411920

Unavailable

8

Rod End, LH

7061054

Unavailable

9

Asm., Tie Rod [Incl. 2-7]

1820806

Unavailable

10

Bolt

7517909

$5.59

11

Washer, Flat

7556099

$1.59

12

Nut

7547177

$2.39

13

Pin, Cotter

7661203

$1.49

13

Pin, Cotter

7661203

$1.49

14

Bracket, Ball Joint

5240717

Unavailable

15

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

16

Boot, Rubber

5410548

Unavailable

17

Joint, Ball

7080927

$76.89

18

SUPPORT, STRUT AND SPINDLE [SEE STRUT PG. A13, REF. 17]

-------

Unavailable

19

Bushing, A-Arm Long

5434551

$5.01

19

Bushing, A-Arm Long

5434551

$5.01

20

Fitting, Lubrication

7080433

$1.49

21

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

22

Kit, A-Frame, LH [Incl. 13,19,23,24,25]

2202276

Unavailable

22

Kit, A-Frame, RH [Incl. 13,19,23,24,25]

2202277

Unavailable

23

Shaft, A-Arm

5133806

$30.79

24

Screw

7512492

$1.49

24

Screw

7512492

$1.49

25

Washer, Dish Lock

7571611

$3.19

25

Washer, Dish Lock

7571611

$3.19

26

Bolt

7518033

$34.99
