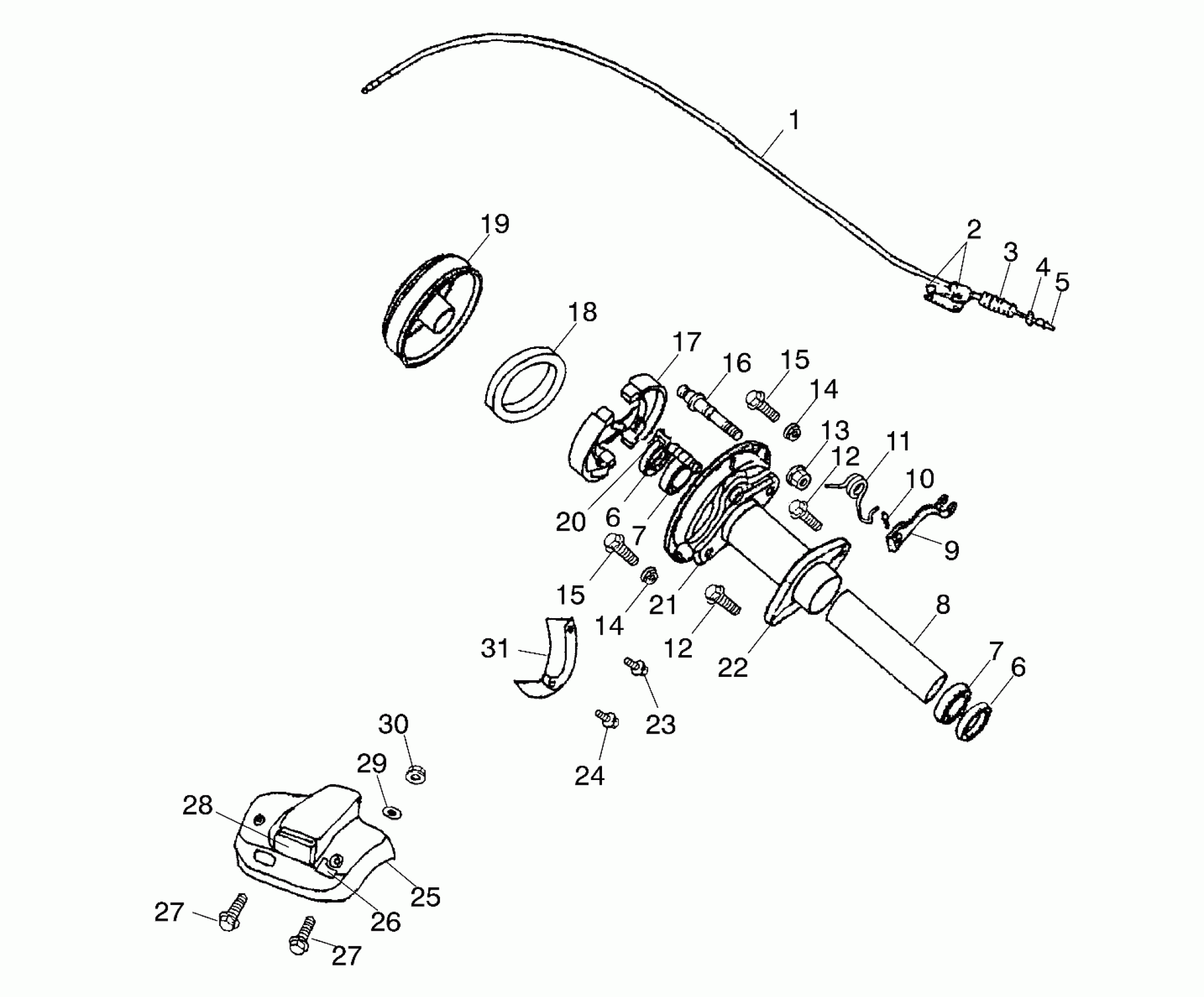

Polaris A03KA09CA PREDATOR 90 - A03KA09CA/CB REAR BRAKE - A03KA09CA/CB (4983138313B10) Diagram

#

Description
Price

1

Cable, Rear Brake

0450438

$47.99

2

Bolt, Hex

0450268

$1.49

3

Spring, Cable, Rear Brake

0450435

$4.79

4

Thru-Shaft, Rear Brake

0450437

Unavailable

5

NUT, ADJUST, BRAKE

0451079

$5.59

6

Seal, Oil

0450430

$15.99

6

Seal, Oil

0450430

$15.99

7

Bearing

0450429

$47.99

7

Bearing

0450429

$47.99

8

Tube, Spacer

0450428

$35.99

9

Arm, Rear Brake

0450687

Unavailable

10

Bolt, Hex

0450433

$3.99

11

Spring, Arm, Rear Brake

0450453

$4.79

12

Bolt, Hex

0450451

Unavailable

12

Bolt, Hex

0450451

Unavailable

13

Nut, Lock

0450881

$4.79

14

NUT, FLANGE

0450529

$2.39

14

NUT, FLANGE

0450529

$2.39

15

Bolt, Hex

0450452

$7.19

15

Bolt, Hex

0450452

$7.19

16

Shaft, Fixed, Rear Brake

0450854

$14.39

17

Shoe, Rear Brake

0450434

Unavailable

18

Rubber, Protective

0450442

$9.59

19

Drum, Rear Brake

0450441

Unavailable

20

Shaft, Cam, Rear Brake

0450431

$31.99

21

Plate, Rear Brake

0450440

$63.99

22

Seat, Fix, Rear Axle

0450427

Unavailable

23

BOLT, HEX

0450325

Unavailable

24

BOLT, HEX

0450298

$2.39

25

Cover, Rear

0450751

$35.99

26

Decal, Drive Chain

7171069

Unavailable

27

Bolt, Hex

0450340

Unavailable

27

Bolt, Hex

0450340

Unavailable

28

Reflector, Rear

0450446

$5.75

29

Washer

0450643

Unavailable

30

Nut, Flange

0450447

$4.79

31

Cover, Protective

0450833

$25.59
