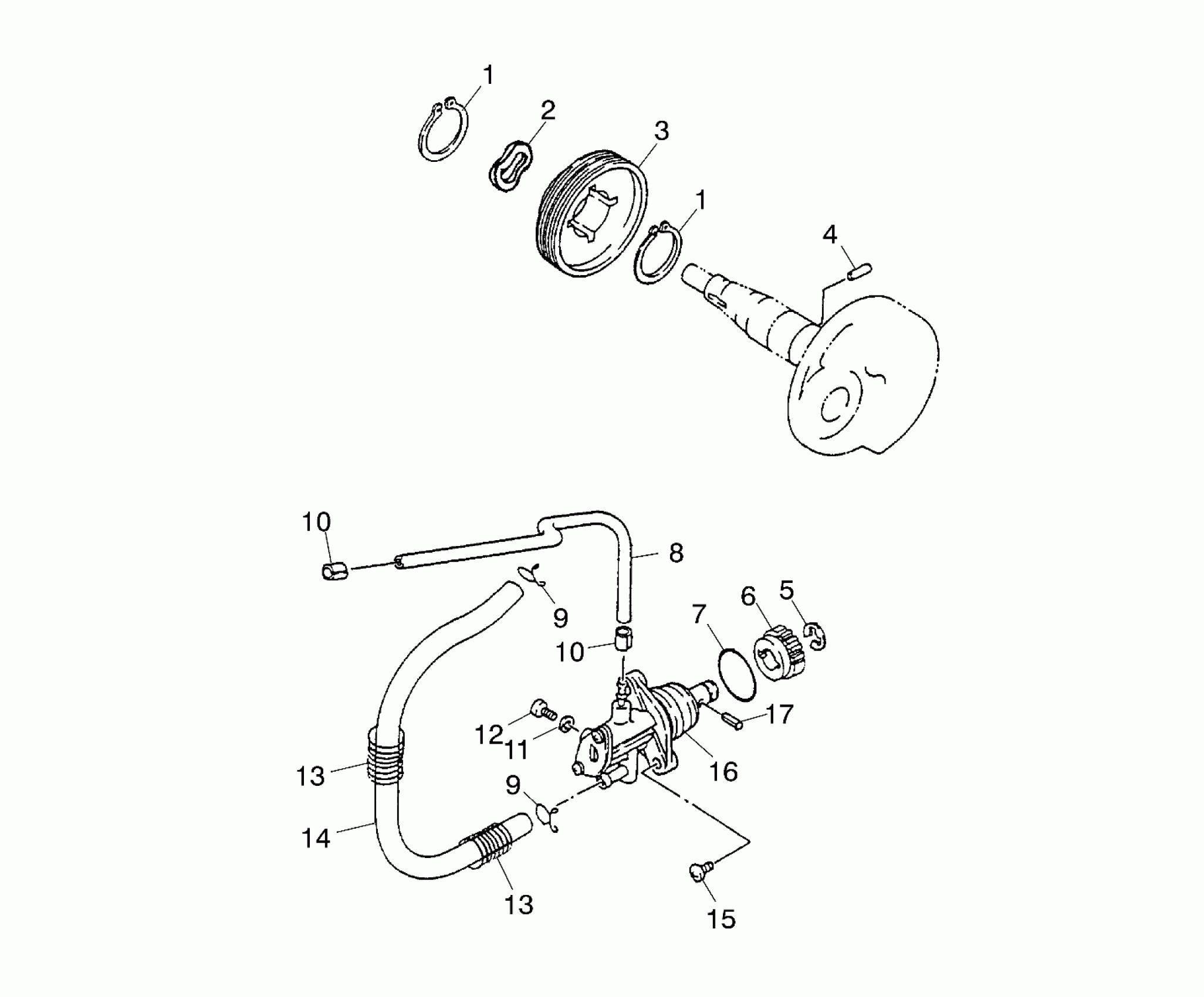

Polaris A03KA09CA PREDATOR 90 - A03KA09CA/CB OIL PUMP ASSEMBLY - A03KA09CA/CB (4983138313A06) Diagram

#

Description
Price

1

Circlip, External

0450060

$3.99

1

Circlip, External

0450060

$3.99

2

Washer, Wave

0450655

$1.59

3

Gear, Drive, Oil Pump

0450058

Unavailable

4

Pin, Dowel

0450059

Unavailable

5

Circlip, External

0450052

Unavailable

6

Gear, Worm, Oil Pump

0450050

$7.19

7

O-Ring

0450048

$5.59

8

Tube, Oil

0450055

$10.39

9

Clip

0450054

$1.49

9

Clip

0450054

$1.49

10

Clip

0450056

$2.39

10

Clip

0450056

$2.39

11

Washer

0450046

$1.49

12

Bolt, Phillips

0450884

$1.49

13

Spring, Protective, Oil Pipe

0450061

Unavailable

13

Spring, Protective, Oil Pipe

0450061

Unavailable

14

Tube, Oil

0450053

Unavailable

15

Bolt, Pan, Phillips

0450057

$1.49

16

Asm., Oil Pump [Incl. 5,6,7,8,9,10,11,12,13,14,17]

0450846

$91.99

17

Pin, Shaft

0450051

$2.86
