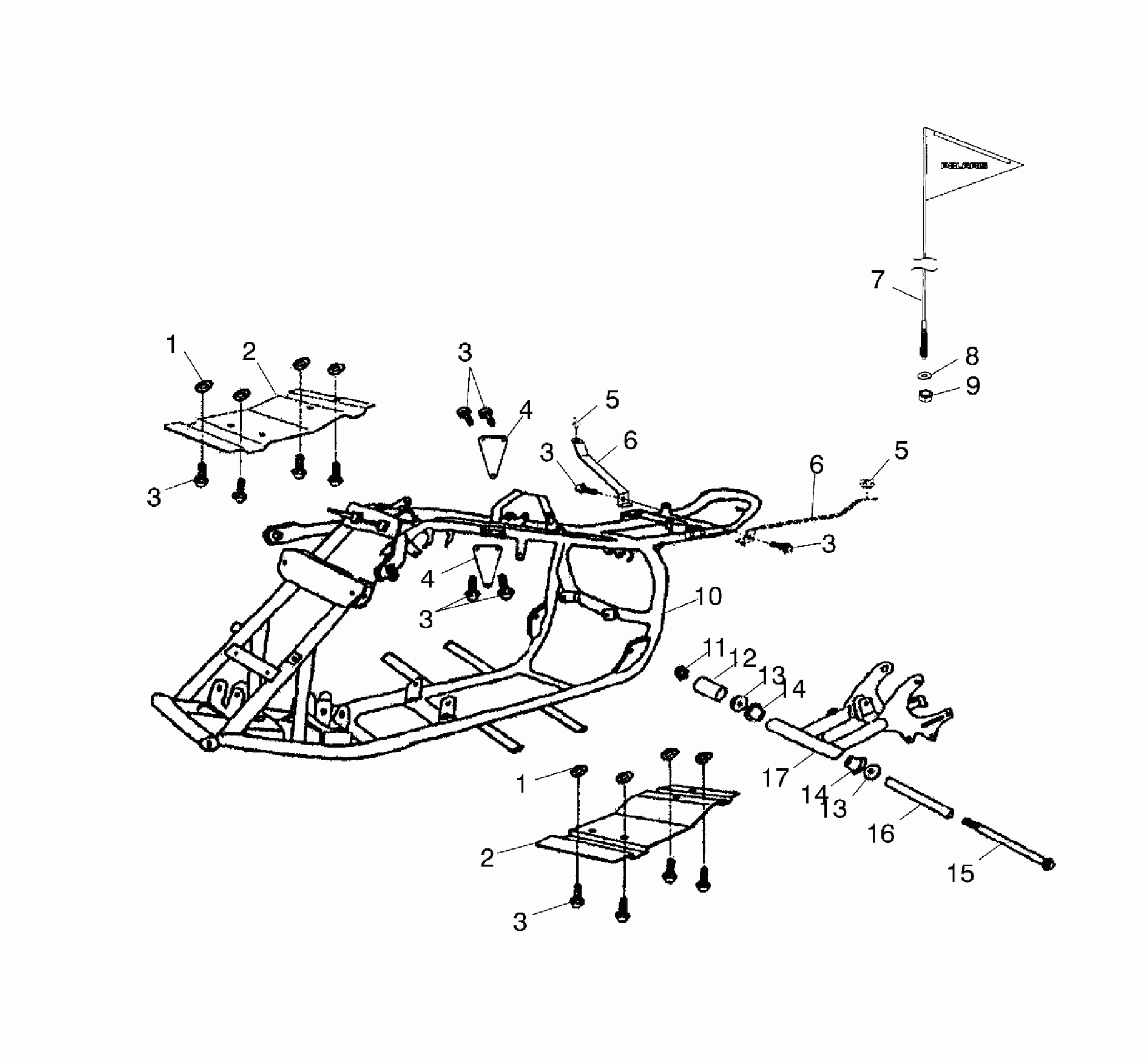

Polaris A03KA09CA PREDATOR 90 - A03KA09CA/CB FRAME BODY - A03KA09CA/CB (4983138313B01) Diagram

#

Description
Price

1

Grommet

0450613

$1.59

1

Grommet

0450613

$1.59

2

Support, Footwell, RH

0451113

$36.31

2

Support, Footwell, LH

0451112

$45.59

2

Support, Footwell, RH

0451113

$36.31

2

Support, Footwell, LH

0451112

$45.59

3

Bolt, Hex, Washer Face

0450887

$3.99

3

Bolt, Hex, Washer Face

0450887

$3.99

3

Bolt, Hex, Washer Face

0450887

$3.99

3

Bolt, Hex, Washer Face

0450887

$3.99

3

Bolt, Hex, Washer Face

0450887

$3.99

3

Bolt, Hex, Washer Face

0450887

$3.99

4

Plate, Engine Bracket

0450299

$9.84

4

Plate, Engine Bracket

0450299

$9.84

5

Rubber

0450806

$2.39

5

Rubber

0450806

$2.39

6

Bracket, Rear Cab Support

0451114

Unavailable

6

Bracket, Rear Cab Support

0451114

Unavailable

7

Flag

0450993

Unavailable

8

Washer, Spring

0450844

$3.19

9

Nut, Hex

0450845

$1.98

10

Frame, Silver (CB)

0451152

Unavailable

10

Frame (CA)

0451111

$661.89

11

Nut, Lock

0450265

$4.79

12

Sleeve, Rubber

0450304

$10.39

13

COVER, SWING ARM SEAL

0450303

$10.39

13

COVER, SWING ARM SEAL

0450303

$10.39

14

SEAT, GREASE CONTAIN

0450302

$6.39

14

SEAT, GREASE CONTAIN

0450302

$6.39

15

Bolt, Hex

0450305

$35.99

16

Tube, Spacer

0450301

$36.41

17

Subasm., Swing Arm (CA)

0451074

Unavailable

17

Subasm., Swing Arm, Silver (CB)

0451153

Unavailable
