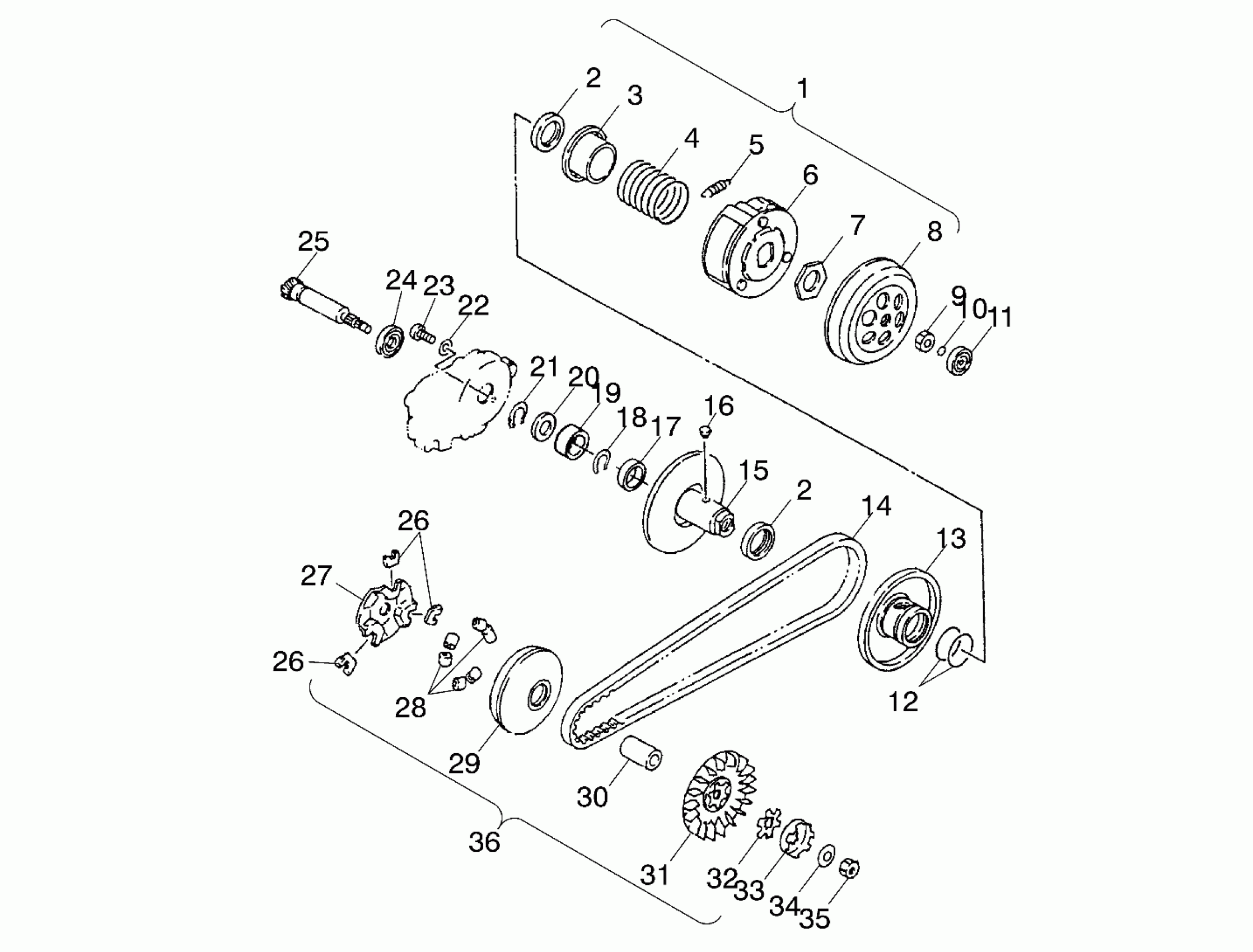

Polaris A03KA09CA PREDATOR 90 - A03KA09CA/CB DRIVE PULLEY - A03KA09CA/CB (4983138313A12) Diagram

#

Description
Price

1

Asm., Secondary Sheave [Incl. 2-8]

0450202

Unavailable

2

SEAL, OIL

0450211

$9.70

2

SEAL, OIL

0450211

$9.70

3

Seat, Spring, Secondary

0450219

$16.35

4

Spring, Compression

0450217

Unavailable

5

Spring, Weight, Clutch

0450206

Unavailable

6

Carrier, Clutch

0450204

Unavailable

7

Nut

0450221

$7.14

8

Cover, Clutch

0450223

$79.37

9

Nut, Hex

0450224

$4.76

10

O-RING

0450226

$0.79

11

BEARING

0450225

$39.68

12

Ring, Oil

0450213

$1.83

13

Wheel, Slot, Sliding, Secondary

0450210

$87.99

14

V-Belt

0450239

$56.73

15

Wheel, Slot, Fixed, Secondary

0450208

$79.99

16

Pin, Guide

0450215

$2.62

17

Bearing, Ball

0451016

Unavailable

18

Circlip

0451017

Unavailable

19

Bearing, Needle

0451015

Unavailable

20

Seal, Oil

0450200

$12.13

21

Circlip, External

0450198

$4.76

22

WASHER

0450041

$4.76

23

Bolt, Socket, Hex

0450158

$5.65

24

BEARING

0450199

$31.75

25

Asm., Primary Drive

0450195

Unavailable

26

Slider

0450234

$7.14

26

Slider

0450234

$7.14

27

Plate, Cam

0450232

$77.99

28

Roller, Weight

0450229

$12.57

29

Wheel, Slot, Sliding, Primary

0450228

Unavailable

30

Bushing

0450236

$19.84

31

Sheave, Fixed, Primary

0450241

$56.65

32

Washer, Claw

0450243

Unavailable

33

CLUTCH, ONE-WAY

0450245

$14.56

34

Washer, Spring

0450247

$4.76

35

NUT, FLANGE

0450249

$3.97

36

Asm., Sliding Drive [Incl. 26,27,28,29,30,31,32]

0450251

Unavailable
