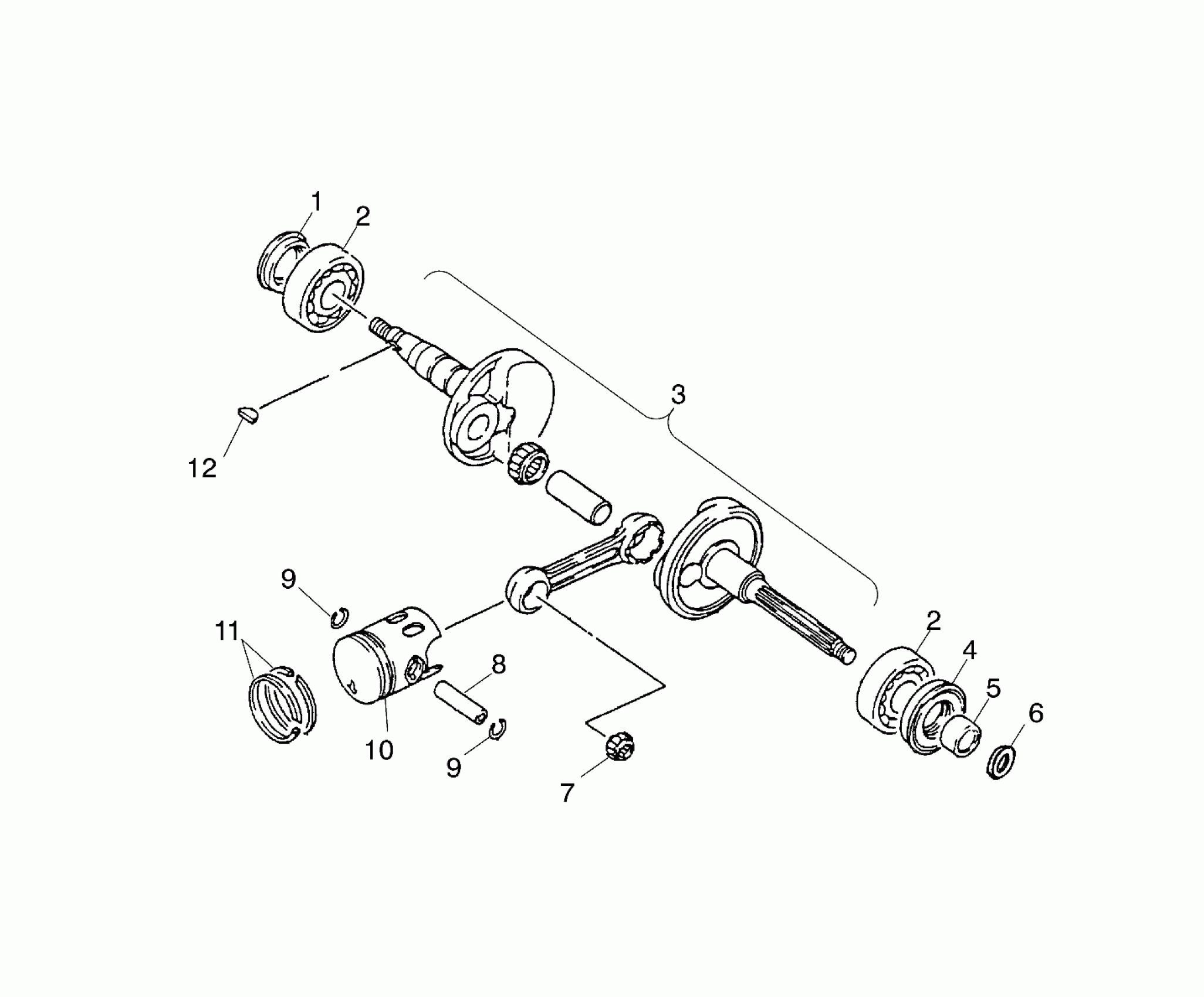

Polaris A03KA09CA PREDATOR 90 - A03KA09CA/CB CRANKSHAFT - A03KA09CA/CB (4983138313A04) Diagram

#

Description
Price

1

Seal, Oil

0450018

$28.32

2

Bearing, Ball, Radial

0450016

$31.99

2

Bearing, Ball, Radial

0450016

$31.99

3

Crankshaft

0450649

Unavailable

4

Seal, Oil

0450017

$11.99

5

Collar, Crank, LH

0450650

Unavailable

6

Washer, Plain

0450653

Unavailable

7

Bearing, Needle

0450029

Unavailable

8

Pin, Piston

0450023

$27.99

9

Clip, Piston Pin

0450027

$3.99

9

Clip, Piston Pin

0450027

$3.99

10

Piston [Std]

0450802

$75.99

10

Piston [.50 mm O/S]

0450704

Unavailable

10

Piston [.25 mm O/S]

0450651

Unavailable

11

Ring Set, Piston [.50 mm O/S]

0450705

$38.08

11

Ring Set, Piston [.25 mm O/S]

0450025

$38.08

11

Ring Set, Piston [Std]

0450877

$31.99

12

Key, Semicycle

0450015

$5.59
