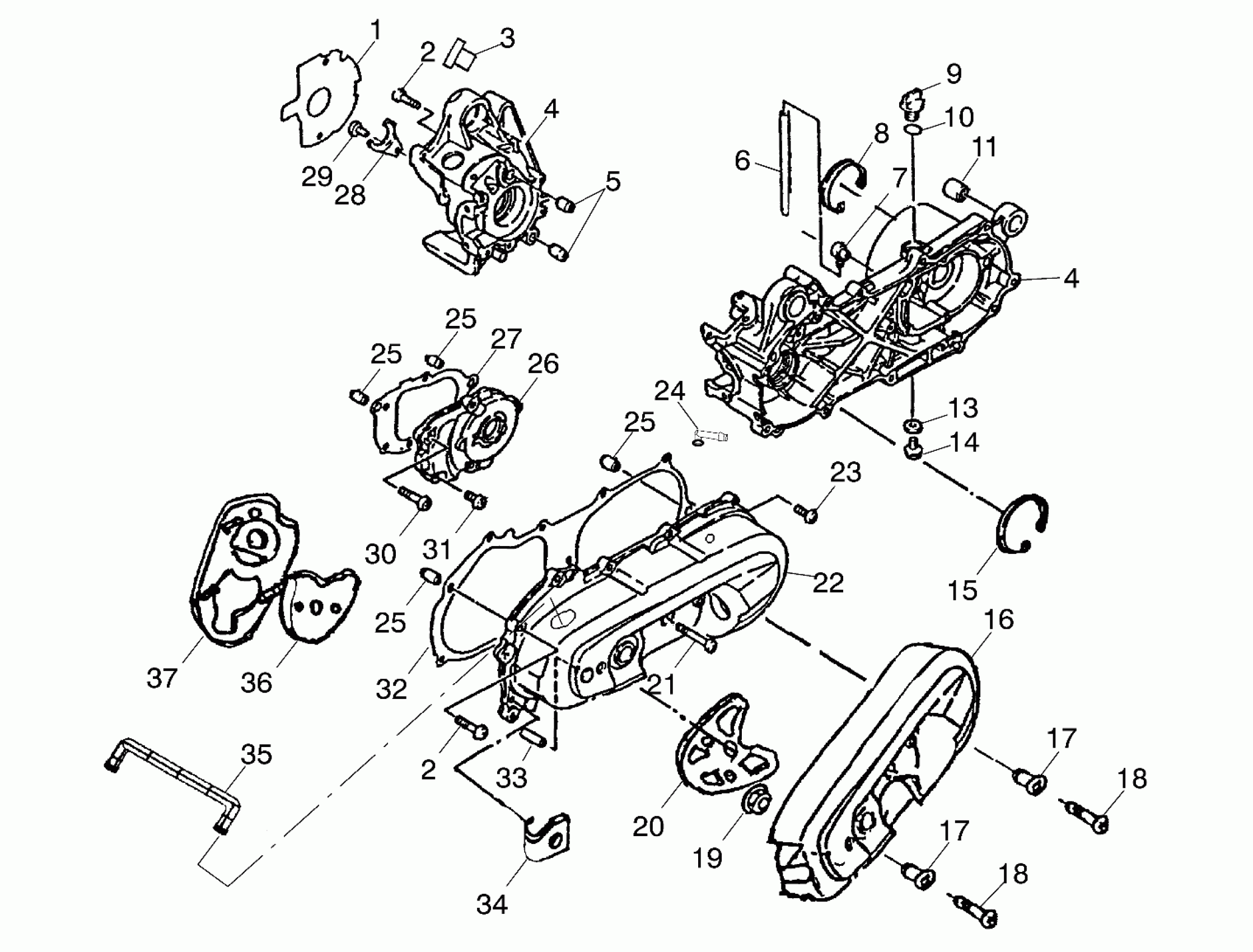

Polaris A03KA09CA PREDATOR 90 - A03KA09CA/CB CRANKCASE - A03KA09CA/CB (4983138313A10) Diagram

#

Description
Price

1

Gasket, Generator

0450159

Unavailable

2

Bolt, Socket

0450138

$4.79

2

Bolt, Socket

0450138

$4.79

3

Plug, Rubber

0450170

$5.65

4

Asm., Crankcase

0454171

Unavailable

4

Asm., Crankcase

0454171

Unavailable

5

Pin, Dowel

0450137

$2.23

6

Hose, Breather

0450136

Unavailable

7

Head, Breather Hose

0450133

Unavailable

8

Circlip, Internal

0450161

$5.59

9

Plug, Oil

0450153

Unavailable

10

O-Ring

0450154

Unavailable

11

BUSHING, RUBBER

0451139

$7.19

13

Washer

0450156

Unavailable

14

BOLT, HEX

0450298

$2.39

15

Circlip, Internal

0450162

$5.59

16

Protector, Crankcase, LH

0450163

Unavailable

17

Grommet

0450168

$3.99

17

Grommet

0450168

$3.99

18

Bolt, Flat Head, Phillips

0450167

$4.79

18

Bolt, Flat Head, Phillips

0450167

$4.79

19

Nut, Flange, Hex

0450150

$1.49

20

Protector B

0450152

Unavailable

21

Bolt, Socket, Hex

0450151

$5.99

22

Cover, Crankcase, LH

0450146

$175.99

23

Bolt, Socket, Hex

0450148

$3.99

24

Tube, Breather

0450674

$10.39

25

PIN, DOWEL

0450142

$3.99

25

PIN, DOWEL

0450142

$3.99

25

PIN, DOWEL

0450142

$3.99

25

PIN, DOWEL

0450142

$3.99

26

Cover, Mission

0450139

Unavailable

27

Gasket, Cover, Mission

0450140

$3.85

28

Bracket, Oil Seal

0450157

Unavailable

29

Bolt, Socket, Hex

0450158

$5.59

30

Bolt, Pan Head

0450143

$1.49

31

Bolt, Pan Head

0450039

$3.99

32

Gasket, Crankcase Cover, LH

0450141

Unavailable

33

Shaft, Pin

0450147

Unavailable

34

BRACKET, CARBURETOR TUBE

0450160

$4.79

35

Duct

0450707

$31.99

36

Filter

0450164

$9.99

37

Protector A

0450166

Unavailable
