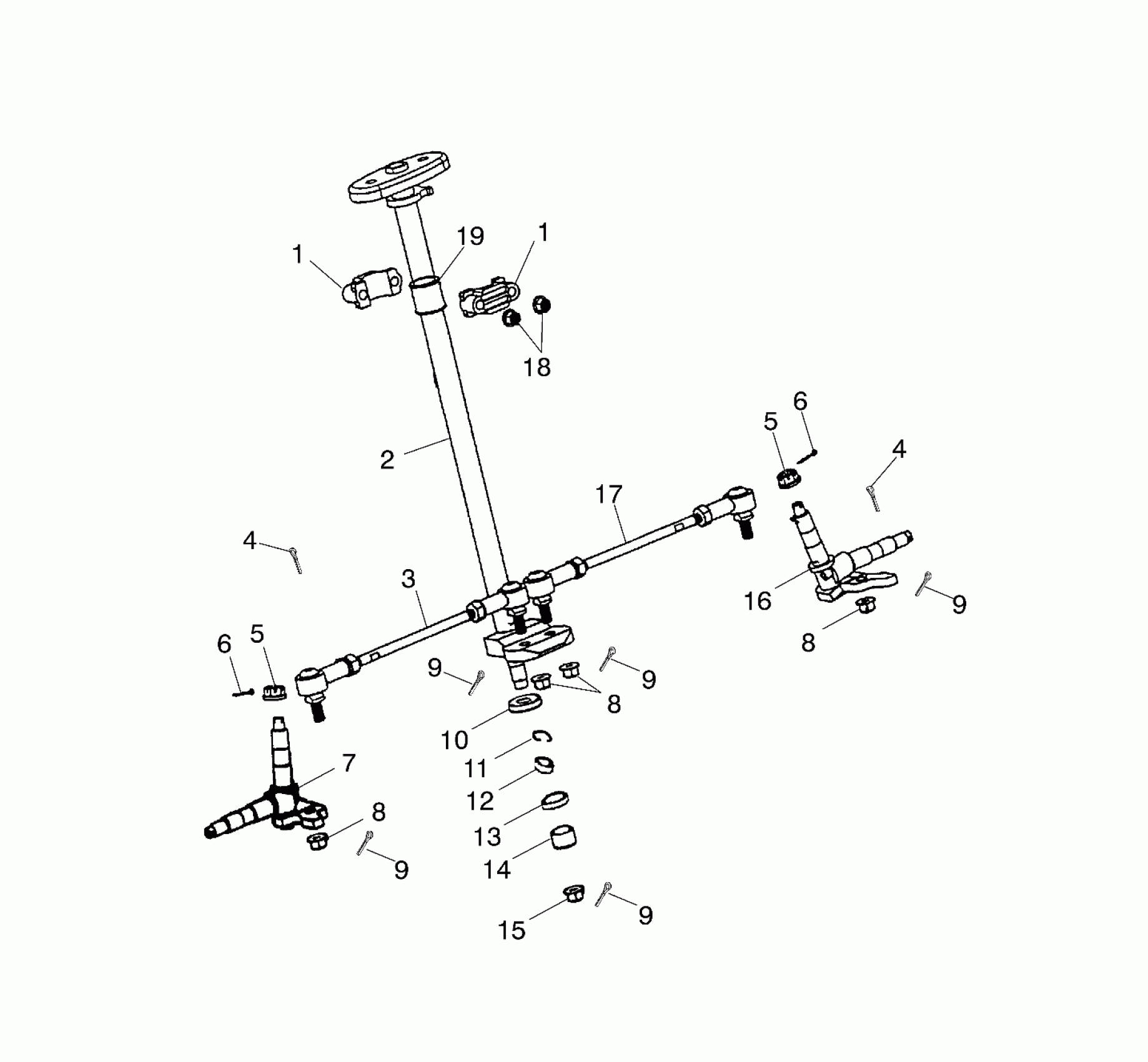

Polaris A03FA09CA/CC/CD SPORTSMAN 90 - A03FA09CA/A03FA09CC STEERING - A03FA09CA/CC/CD (4978857885B14) Diagram

#

Description
Price

1

Bracket, Upper, Steering Shaft

0450505

$19.99

1

Bracket, Upper, Steering Shaft

0450505

$19.99

2

Shaft, Steering

0450915

Unavailable

3

Asm., Tie Rod, LH

0450918

$137.76

4

PIN, COTTER

0450395

$3.19

4

PIN, COTTER

0450395

$3.19

5

NUT, LOCK

0450502

$9.59

5

NUT, LOCK

0450502

$9.59

6

PIN, COTTER

0450507

$3.19

6

PIN, COTTER

0450507

$3.19

7

KNUCKLE, LH

0450916

$111.99

8

NUT, LOCK

0450276

$3.99

8

NUT, LOCK

0450276

$3.99

8

NUT, LOCK

0450276

$3.99

9

PIN, COTTER

0450719

Unavailable

9

PIN, COTTER

0450719

Unavailable

9

PIN, COTTER

0450719

Unavailable

9

PIN, COTTER

0450719

Unavailable

9

PIN, COTTER

0450719

Unavailable

10

SEAL, OIL

0450491

$11.99

11

CIRCLIP

0450161

$5.59

12

BEARING, BALL

0450493

$31.99

13

SEAL, OIL

0450389

$11.19

14

SPACER

0450390

$4.79

15

Nut, Lock

0450878

$10.39

16

KNUCKLE, RH

0450917

$111.99

17

Asm., Tie Rod, RH

0450919

$137.76

18

NUT, FLANGE

0450268

$1.49

19

Sleeve, Steering Shaft

0450499

$11.19
