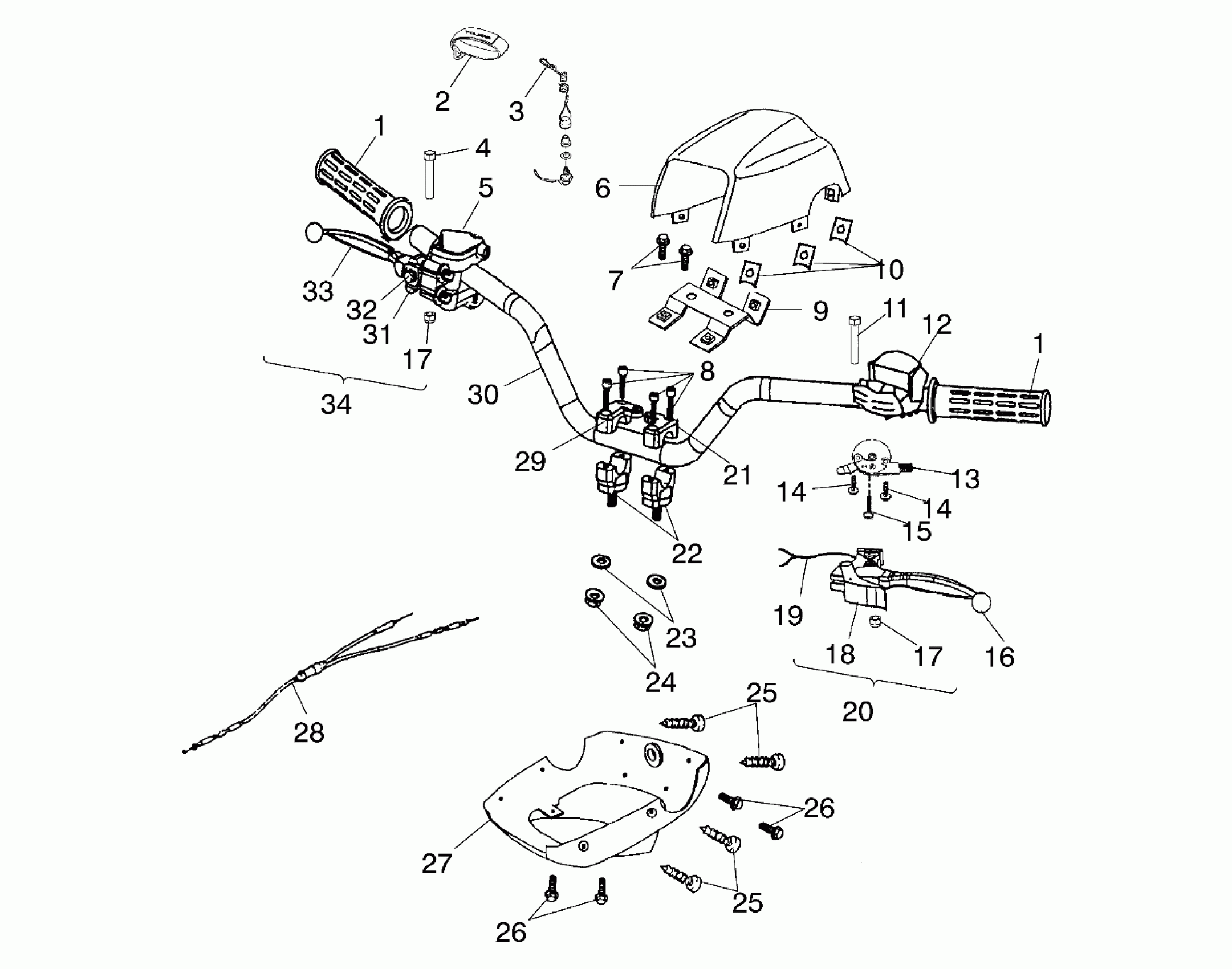

Polaris A03FA09CA/CC/CD SPORTSMAN 90 - A03FA09CA/A03FA09CC HANDLEBAR - A03FA09CA/CC/CD (4978857885B11) Diagram

#

Description
Price

1

Grip, Hand

0451097

Unavailable

1

Grip, Hand

0451097

Unavailable

2

Wristband

7080891

Unavailable

3

Switch, Safety

0450550

Unavailable

4

BOLT, BRAKE LEVER, RH

0450806

$2.39

5

Asm., Throttle

0451040

Unavailable

6

Pod, Upper, Handlebar, Yellow (CA)

0451041

Unavailable

6

Pod, Upper, Handlebar, Camo Green Metallic (CC)

0451145

Unavailable

7

Bolt, Washer Face, Hex

0450556

$1.99

8

Screw, Socket, Hex

0450148

$3.99

9

Plate, Fixed

0450468

$23.02

10

U-Nut

0450752

$2.39

11

Bolt, Brake Lever, LH

0450807

$7.19

12

ASM., SWITCH, LH

0454913

$127.99

13

Asm., Manual Choke (Incl. 14,15)

0451037

$36.41

14

BOLT

0451148

$3.19

14

BOLT

0451148

$3.19

15

BOLT

0451149

$3.99

16

Lever, Brake, LH

0450693

$27.99

17

NUT, LOCK

0450808

$2.39

17

NUT, LOCK

0450808

$2.39

18

Lock, Park Brake

0450692

Unavailable

19

Harness, Sensor Switch

0451090

Unavailable

20

Asm., Lever, LH (Incl. 13,14,15,23,24)

0450463

$69.99

21

COVER, CLAMP, LH

0450460

$35.99

22

CLAMP, SADDLE

0450459

$39.99

23

WASHER

0450279

$3.19

24

NUT, LOCK

0450276

$3.99

25

Screw, Tapping

0451132

Unavailable

25

Screw, Tapping

0451132

Unavailable

26

Bolt, Pan, Phillips

0450667

$5.59

26

Bolt, Pan, Phillips

0450667

$5.59

27

Pod, Lower, Handlebar

0450669

Unavailable

28

Cable, Throttle

0450471

$51.99

29

COVER, CLAMP, RH

0450461

$27.99

30

Handlebar

0450663

Unavailable

31

BRACKET, BRAKE CABLE

0450994

$31.99

32

Bolt

0450309

Unavailable

33

Lever, Brake, RH

0450694

$27.99

34

Asm., Brake Lever, RH [Incl. 5,31-33]

0451096

$174.99
