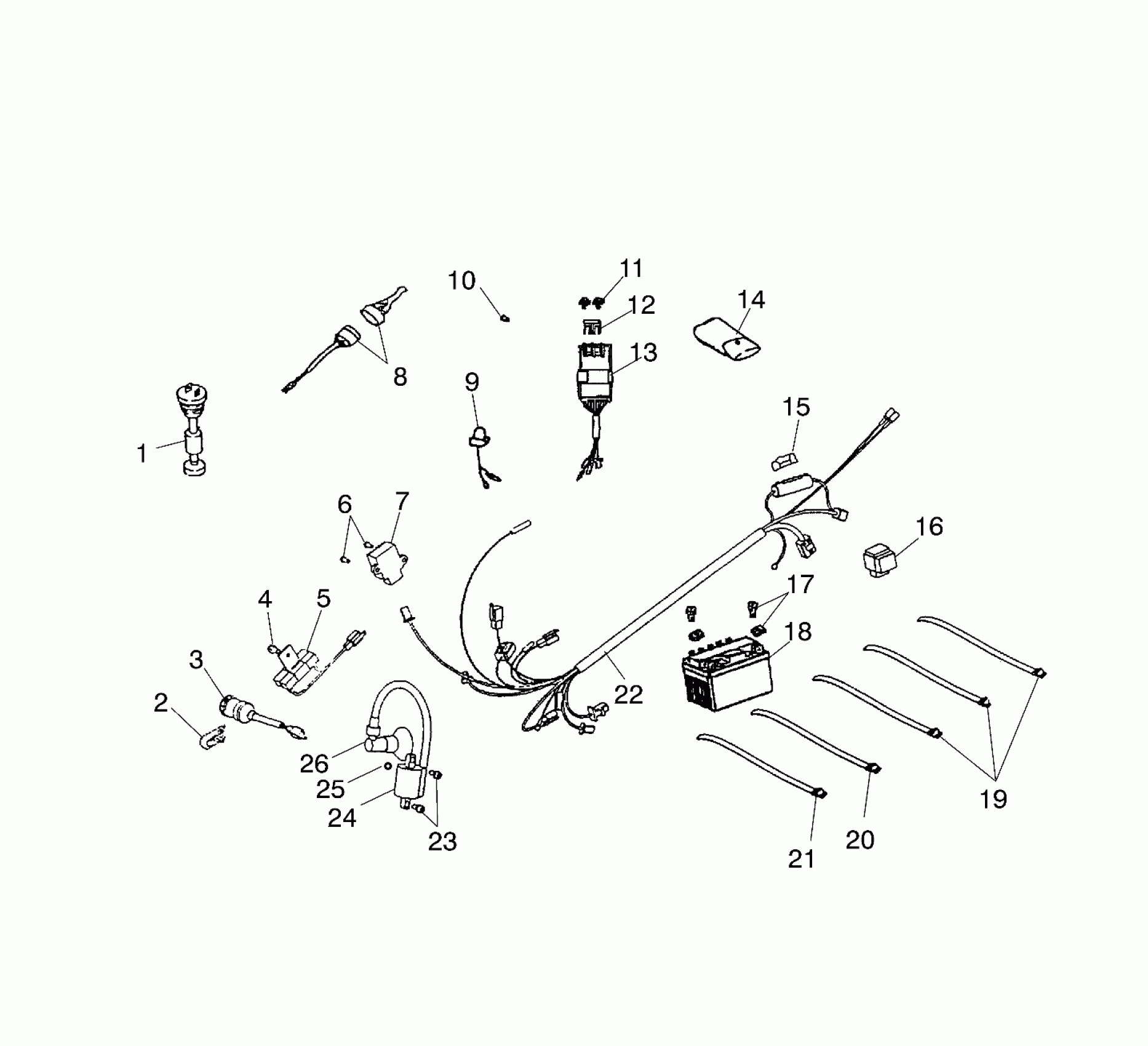

Polaris A03FA09CA/CC/CD SPORTSMAN 90 - A03FA09CA/A03FA09CC ELECTRICAL PARTS - A03FA09CA/CC/CD (4978857885C03) Diagram

#

Description
Price

1

Asm., Oil Level Gauge

0450558

Unavailable

2

Clip, Main Switch

0450886

$5.59

3

Switch, Main, Ignition w/Clip

0450549

Unavailable

4

Bolt, Washer Face, Hex

0450701

$1.49

5

Asm., Resistor

0453315

$59.99

6

Bolt, Pan, Phillips

0450057

$1.49

7

Rectifier/Regulator

0450553

$119.99

8

Switch, Safety

0451044

Unavailable

9

Lamp, Warning, Oil Quantity

0450557

Unavailable

10

Bolt, Hex

0450309

Unavailable

11

Screw, Fixing

0451020

Unavailable

12

JUMPER

0451019

$6.39

13

Asm., CDI Unit

0451018

$295.30

14

Bag, Tool

0450563

Unavailable

15

FUSE

0450842

Unavailable

16

Asm., Starter Relay

0450555

$95.99

17

Bolt and Nut, Battery

0450888

Unavailable

18

BATTERY

4011181

$63.99

19

STRAP

0450559

$2.39

20

STRAP

0450721

$3.19

21

Strap

0450742

$2.39

22

Asm., Main Wire

0451042

Unavailable

23

Bolt, Hex

0450556

$1.99

24

Asm., Ignition Coil [Incl. 26]

0450753

$63.99

25

Washer, Star

0451018

$295.30

26

Cap, Spark Plug

0451162

Unavailable
