Partiron

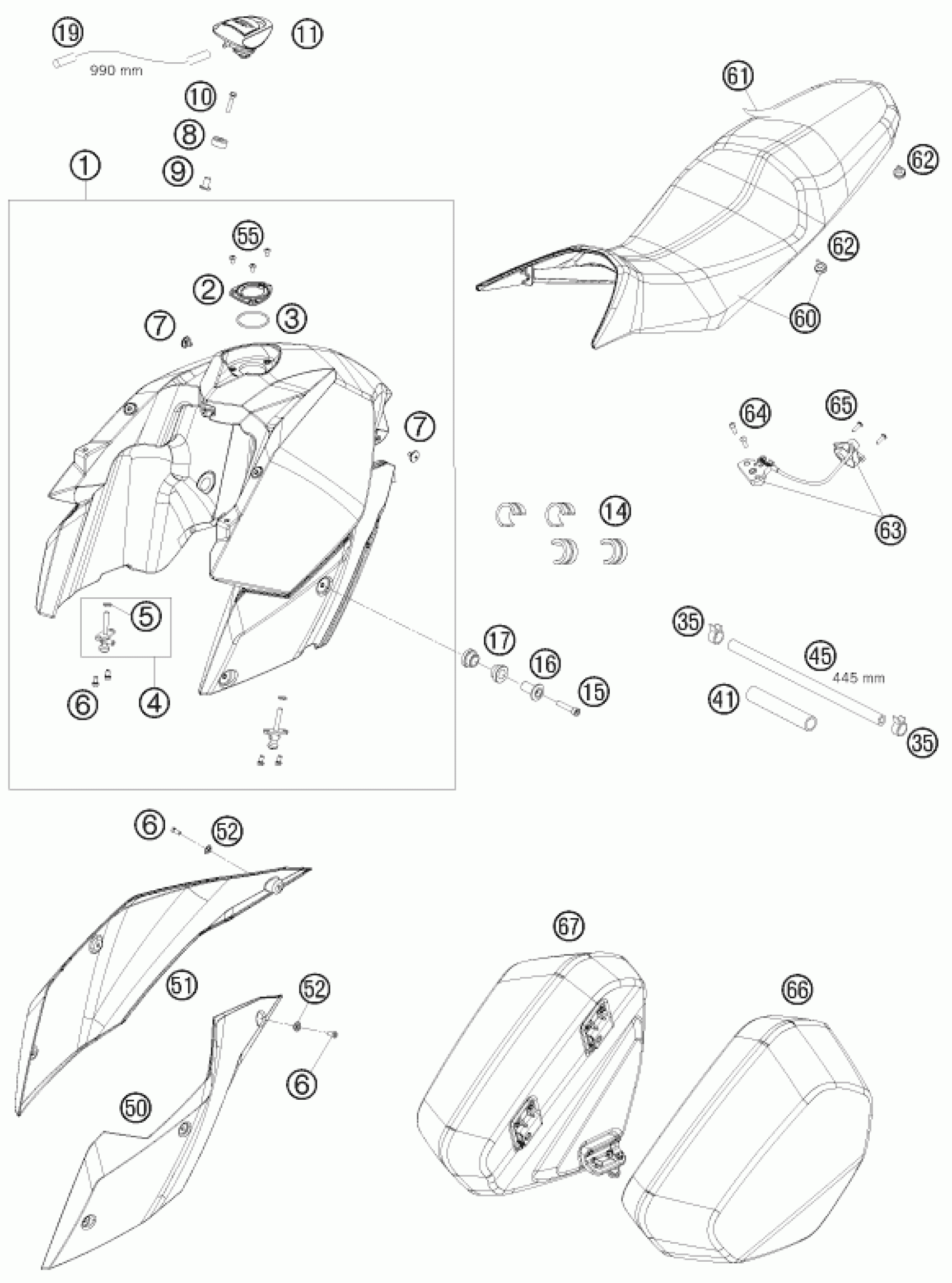

KTM 990 SUPERMOTO T ORANGE <2010> TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. 09

6200701304433

$1,384.73

2

CLOSURE FLANGE

76507008050

$9.90

3

O-ring 50.00X3.00 VITON

0770050030

$5.23

4

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

5

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05

6

SHCS ISO 14580 M6x12

014580060126

$2.05

7

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

8

TANK ROLLER 12X26X12 '98

50307014000

$11.02

9

COLLAR BUSHING 9,5X18X19,8X1,5

62503009000

$6.72

10

HH collar screw M6x30 TX30

0025060306

$3.08

11

TANK PLUG

58407008300

$287.22

14

SPACER FUEL TANK 05

61007014000

$6.63

15

AH collar screw DIN0912 M8x40

0912080403

$2.05

16

collar bushing, bearing, outsi

61007060000

$9.90

17

collar bushing, front tank hol

61007065000

$7.85

19

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

35

YDNAC CLAMP 12,5MM

62607017000

$1.49

41

THERMAL PROTECTION L=105MM 05

62507016050

$6.54

45

HOSE 6X13 L=445 MM 08

60007216445

$22.71

50

SPOILER L/S ORANGE

6260805000077A

$174.29

51

SPOILER R/S ORANGE

6260805100077A

$174.29

52

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

55

SCREW TORX M5X10 05

58605083010

$2.05

60

SEAT CPL.

62007040000

$164.79

61

SEAT COVER

62007040050

$66.28

62

Distance rupper airbox 03

60006001021

$2.05

63

SEAT LOCK

62607050000

Unavailable

64

BHCS ISO 7380 M6X18

0738060181

$2.05

65

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

67

SIDE BAG RIGHT 990 SMT

62012023000

Unavailable

66

SIDE BAG LEFT 990 SMT

62012022000

Unavailable
