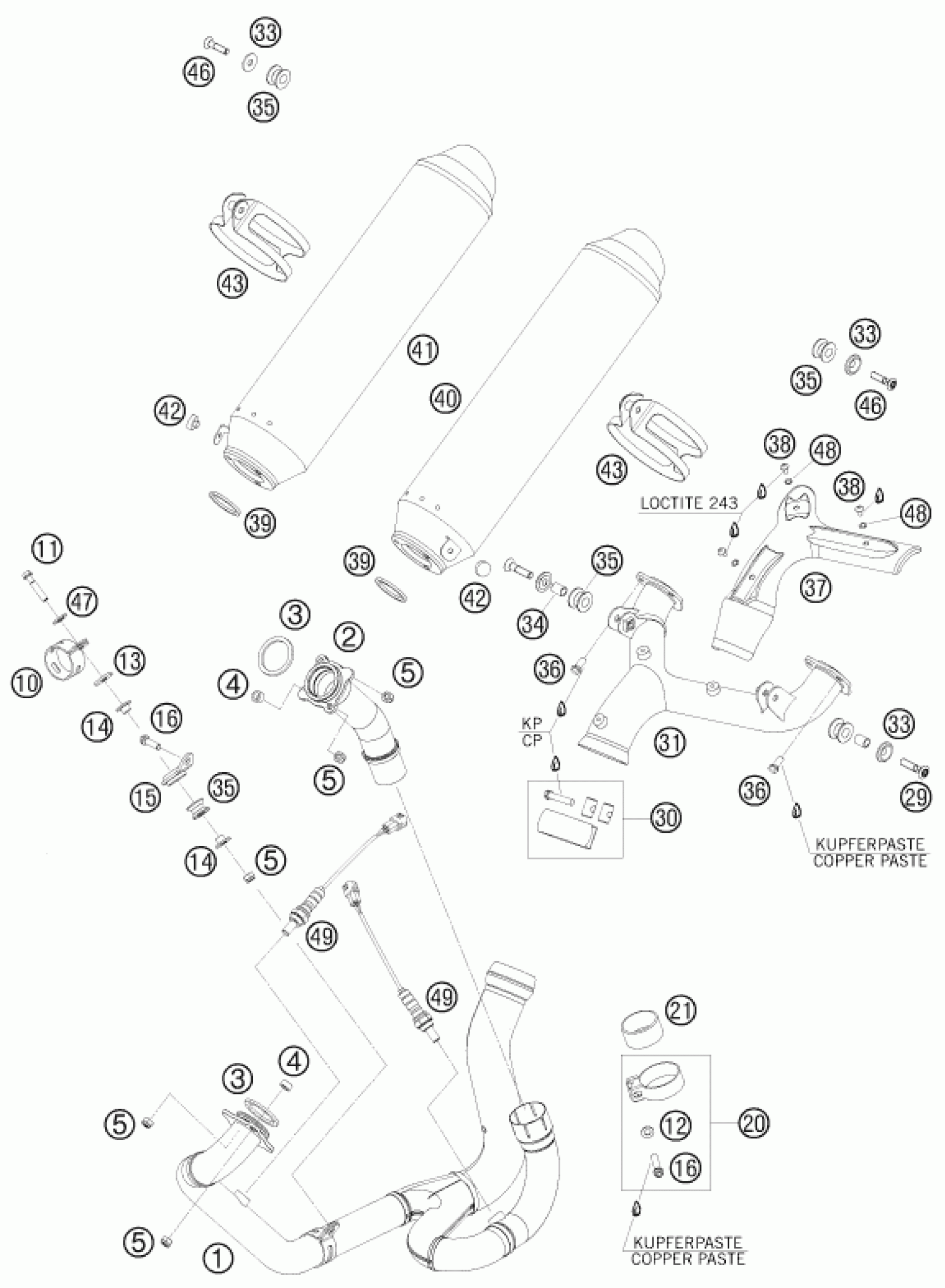

KTM 990 SUPERMOTO T ORANGE <2010> EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST MANIFOLD

62605007000

$798.29

2

EXHAUST PIPE REAR 07

61105008000

$212.64

3

Exhaust gasket 05

61005005000

$10.00

4

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

5

self-locking nut M8 Cu

51010086100

$3.08

10

CLAMP EXHAUST PIPE 05

61005007049

$11.23

11

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

12

washer DIN 125 A -8.4

0125080003

$1.49

13

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

14

collar bushing 8.5x12x23.5x10

58405050065

$5.23

15

EXHAUST PIPE BRACKET FRONT 07

62505015150

$15.16

16

HH collar screw M8x35 TX40

0025080356

$4.11

20

EXHAUST CLAMP 52,2MM 07

61105051000

$23.70

21

Graphite ring 45X50X25

58405005001

$16.92

29

COUNTERSUNK SCREW ISA45 M8X35

0019080356

$3.08

30

EXHAUST CLAMP CPL. 05

61005052000

$28.42

31

DISTRIBUTOR TUBE 05

62505048100

$322.97

32

HH collar screw M8x30

0025080306

$3.08

33

Special washer 8X24 ALU H=4.2

62603061000

$5.79

34

SPACER BUSH. 8,5X12X18MM 05

62505069000

$7.00

35

damp. component silicone grey

54305068100

$8.31

36

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

37

THERMAL SHIELD 05

62505047000

$69.36

38

SCREW TORX M5X10

78105081010

$2.05

39

EXHAUST GASKET 03

60005005002

$6.54

40

EXHAUST SILENCER L/S USA

62605182000

$1,082.40

41

EXHAUST SILENCER R/S USA

62605183000

$1,082.40

42

RUBBER BUFFER

54308042000

$3.08

43

CLAMP FOR SILENCER CPL. 03

60005095000

$35.02

46

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

$1.49

47

WASHER DIN9021-A 8,4

0021080003

$1.49

48

TOOTH LOCK WASHER DIN6797-J

0797050000

$2.05

49

LAMBDA SENSOR 05

61041090000

$195.31
