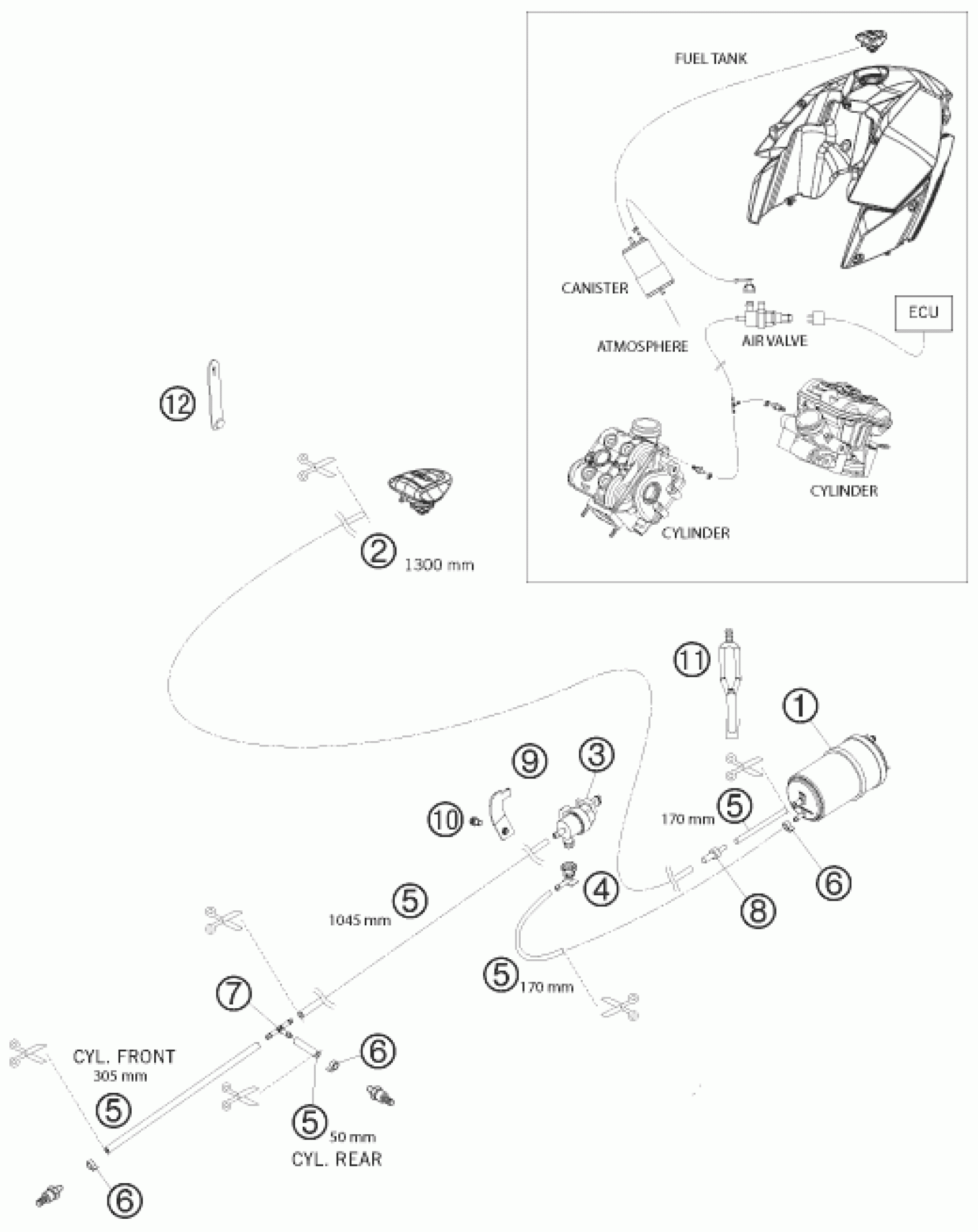

KTM 990 SUPERMOTO T ORANGE <2010> EVAPORATIVE CANISTER Diagram

#

Description

Price

1

EVAP.CANISTER FILTER TYPE AK47

58715001000

$80.96

2

HOSE EPA D=4/8 L=2000MM

78015021000

$49.92

3

VALVE FOR CARBON CANISTER 07

61115015000

$63.95

4

FITTING PIECE NQV2 NW7 90°

61115016000

$12.71

5

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

6

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

7

T-connector TS-6 03

60015022000

$5.98

8

REDUCTION CONNECTION GRS6-4

75015023000

$5.60

9

SUPPORT AKF

62615016000

$23.37

10

HH collar screw M8x12 TX40

0025080126

$3.08

11

RUBBER L=145MM

50303018000

$6.44

12

RUBBER CABLE TIE 60MM 03

60011093060

$4.11
