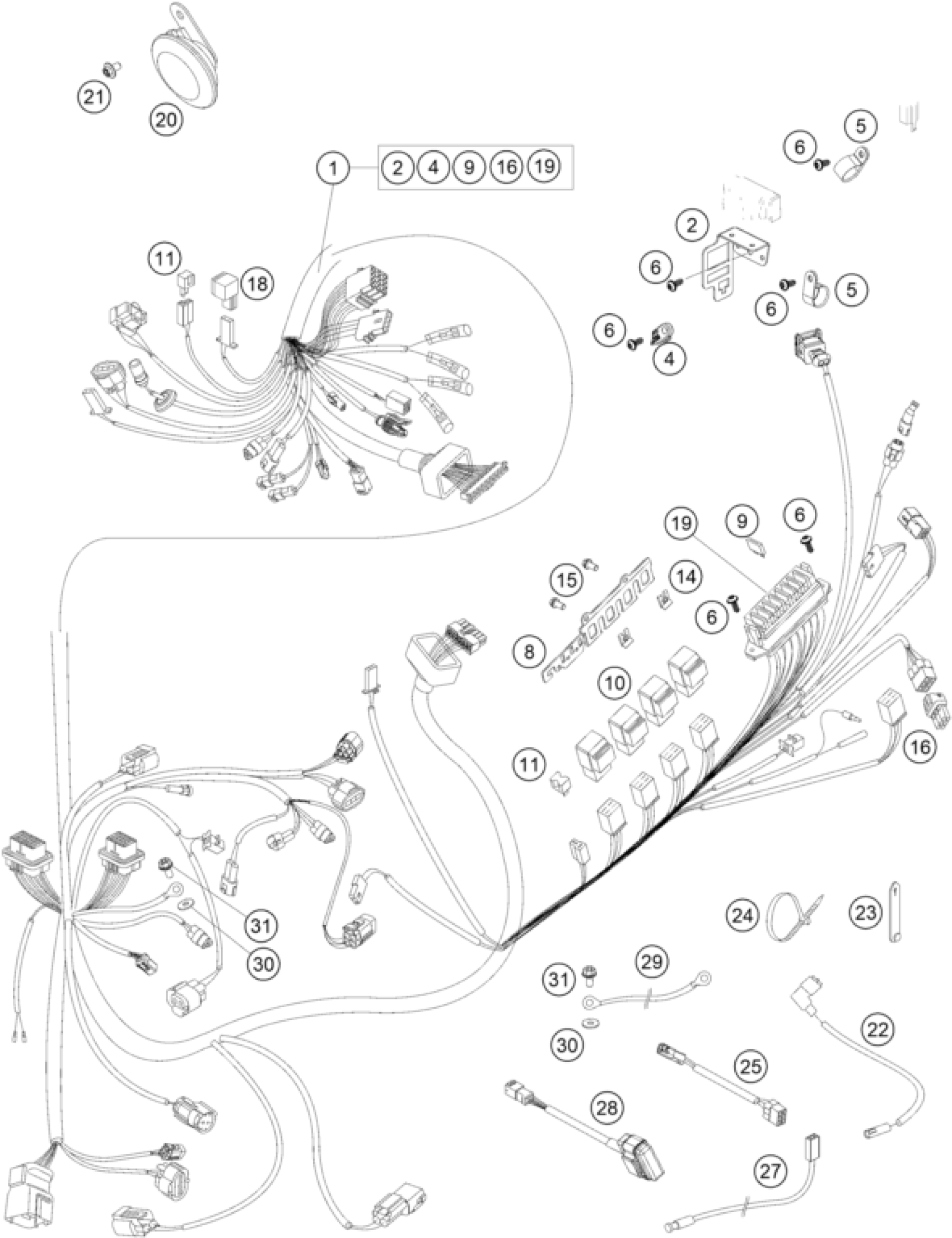

KTM 990 Supermoto T orange 09 <2009> WIRING HARNESS Diagram

#

Description
Price

2

PLUG SUPPORT PANEL

62011083000

Unavailable

30

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

31

HH collar screw M6x10 TX30

0025060106

Unavailable

1

WIRING HARNESS SM-T 09

62011075000

Unavailable

4

BRACKET CABELFIXING

62011094000

Unavailable

5

PVC CLAMP 17,4MM HEYCO 3381

57013070400

Unavailable

6

EJOT PT screw K50x12

0081050121

Unavailable

8

BRACKET RELAY 05

62511057050

Unavailable

9

Plug-in fuse, big 10A

58011109110

Unavailable

9

FUSE 15 A

58011109115

Unavailable

10

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

11

DIODE S3H-15 97

58411096100

Unavailable

14

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

15

HH collar screw M5x12 TX30

0025050126

Unavailable

16

SPARE CONNECTOR BH 6-PINS

000700000BH

Unavailable

18

FLASHER UNIT 97

44611207200

Unavailable

19

FUSE-BOX COVER

58511075510

Unavailable

20

DC HORN 05

62511060000

Unavailable

21

HH collar screw M6x15 TX30

0024060156

Unavailable

22

OIL-PRESSURE SWITCH CABLE 03

60011092000

Unavailable

23

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

23

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

24

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

24

Cable tie 200/4.6mm black

44011076200

Unavailable

25

CABLE FOR ROLLOVER SENSOR 08

62611047000

Unavailable

27

TEMPERATURE SENSOR 07

61111018000

Unavailable

28

STARTER INTERLOCK

61111020000

Unavailable

29

GROUND CABLE 100MM 06

60111097000

Unavailable
